Data Sheet

ADA4084-1/ADA4084-2/ADA4084-4

Rev. I | Page 35 of 36

2.70

2.60 SQ

2.50

COMPLIANT

TO JEDEC STANDARDS MO-220-WGGC.

0.65

BSC

4.10

4.00 SQ

3.90

0.45

0.40

0.35

0.80

0.75

0.70

0.05 MAX

0.02 NOM

0.20 REF

0.20 MIN

COPLANARITY

0.08

PIN 1

INDICATOR

0.35

0.30

0.25

BOTTOM VIEW

SEATING

PLANE

TOP VIEW

SIDE VIEW

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

PIN 1

INDIC ATOR AREA OPTIONS

(SEE DETAIL A)

DETAIL A

(JEDEC 95)

EXPOSED

PAD

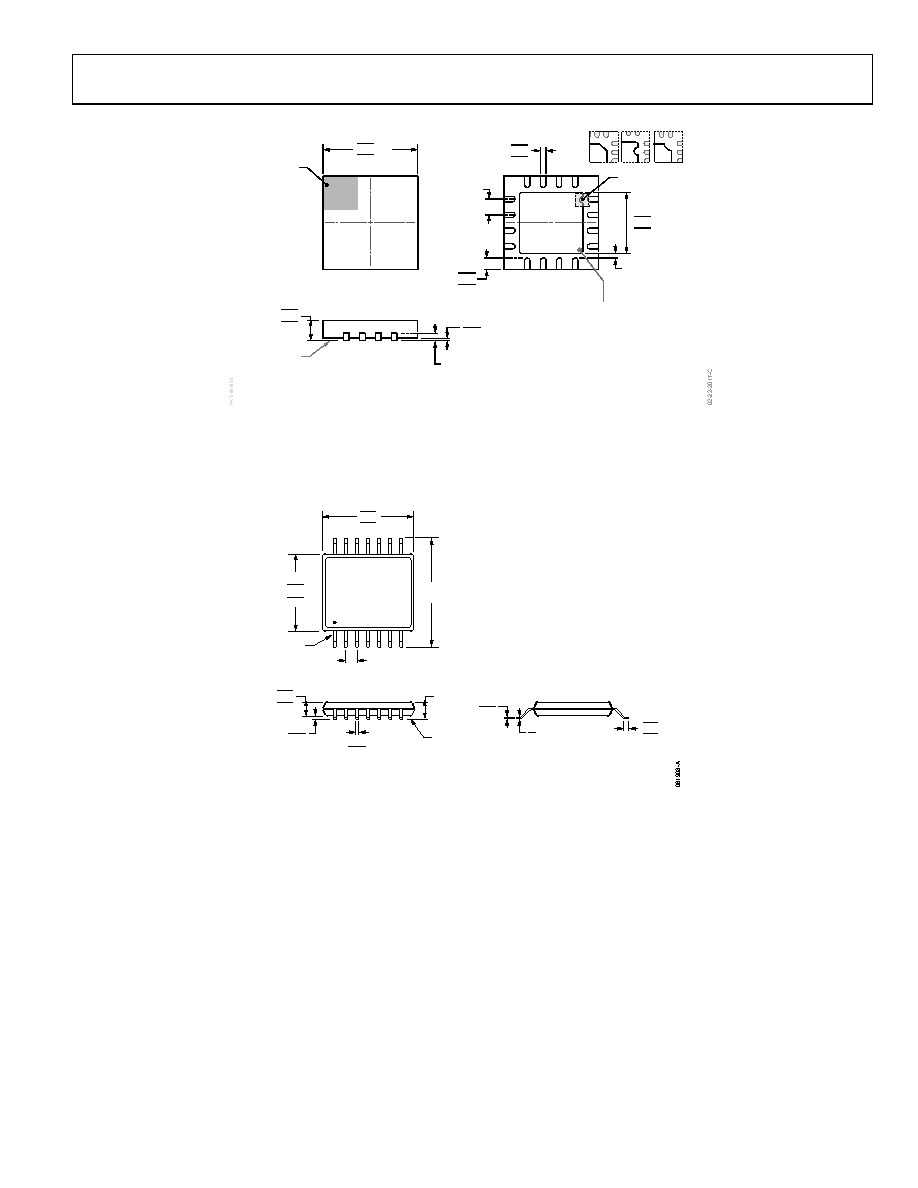

Figure 119. 16-Lead Lead Frame Chip Scale Package [LFCSP]

4 mm × 4 mm Body and 075 mm Package Height

(CP-16-17)

Dimensions shown in millimeters

COMPLIANT TO JEDEC STANDARDS MO-153-AB-1

8°

0°

4.50

4.40

4.30

6.40

BSC

PIN 1

5.10

5.00

4.90

0.65 BSC

0.15

0.05

0.30

0.19

1.20

MAX

1.05

1.00

0.80

0.20

0.09

0.75

0.60

0.45

COPLANARITY

0.10

SEATING

PLANE

Figure 120. 14-Lead Thin Shrink Small Outline Package [TSSOP]

(RU-14)

Dimensions shown in millimeters
