Data Sheet
AD8002
Rev. E | Page 19 of 21

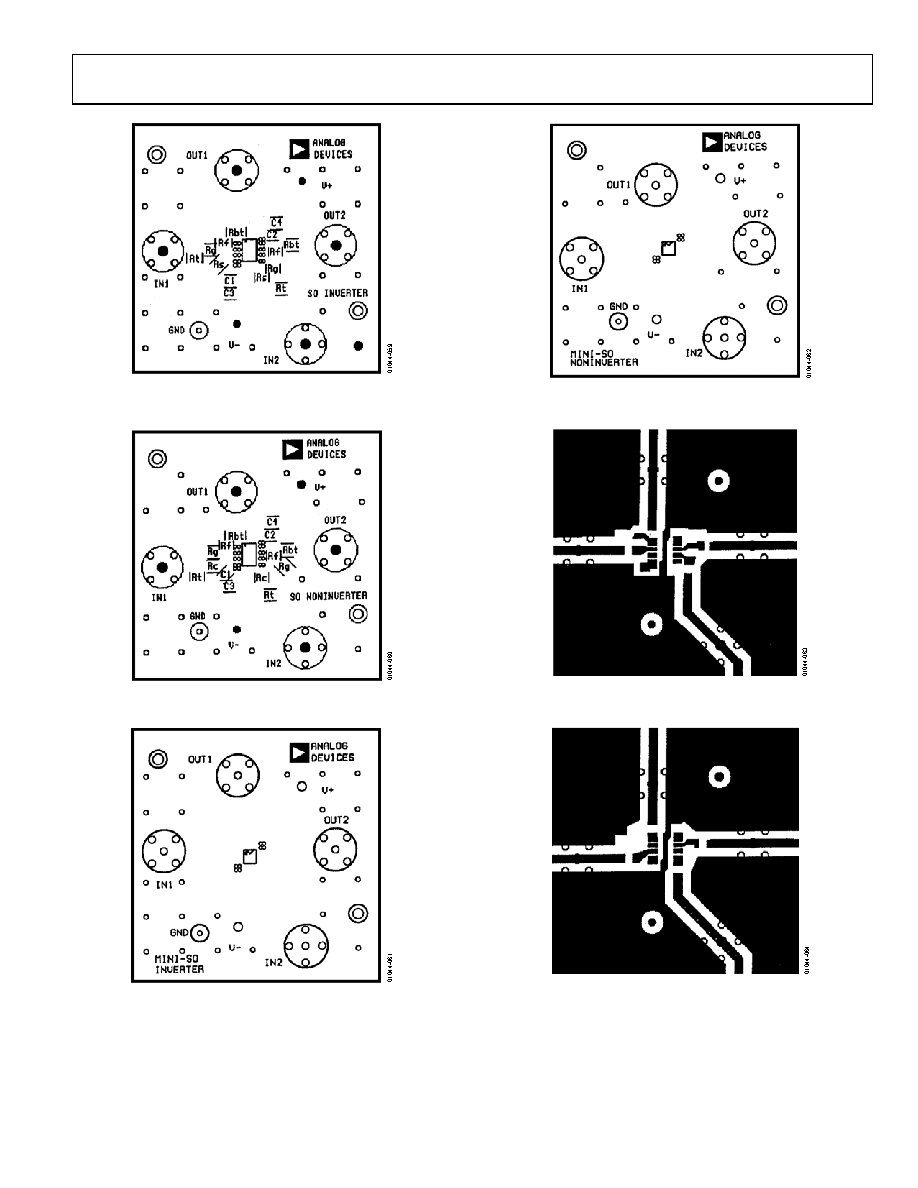

Figure 60. Inverter SOIC Board Layout (Silkscreen)
Figure 61. Noninverter SOIC Board Layout (Silkscreen)
Figure 62. Inverter MSOP Board Layout (Silkscreen)
Figure 63. Noninverter MSOP Board Layout (Silkscreen)
Figure 64. Inverter SOIC Board Layout (Component Layer)
Figure 65. Noninverter SOIC Board Layout (Component Layer)
