PowerPC 440SPe Embedded Processor
66
AMCC Proprietary
Revision 1.23 - Sept 21, 2006
Preliminary Data Sheet
Input/Output Timing

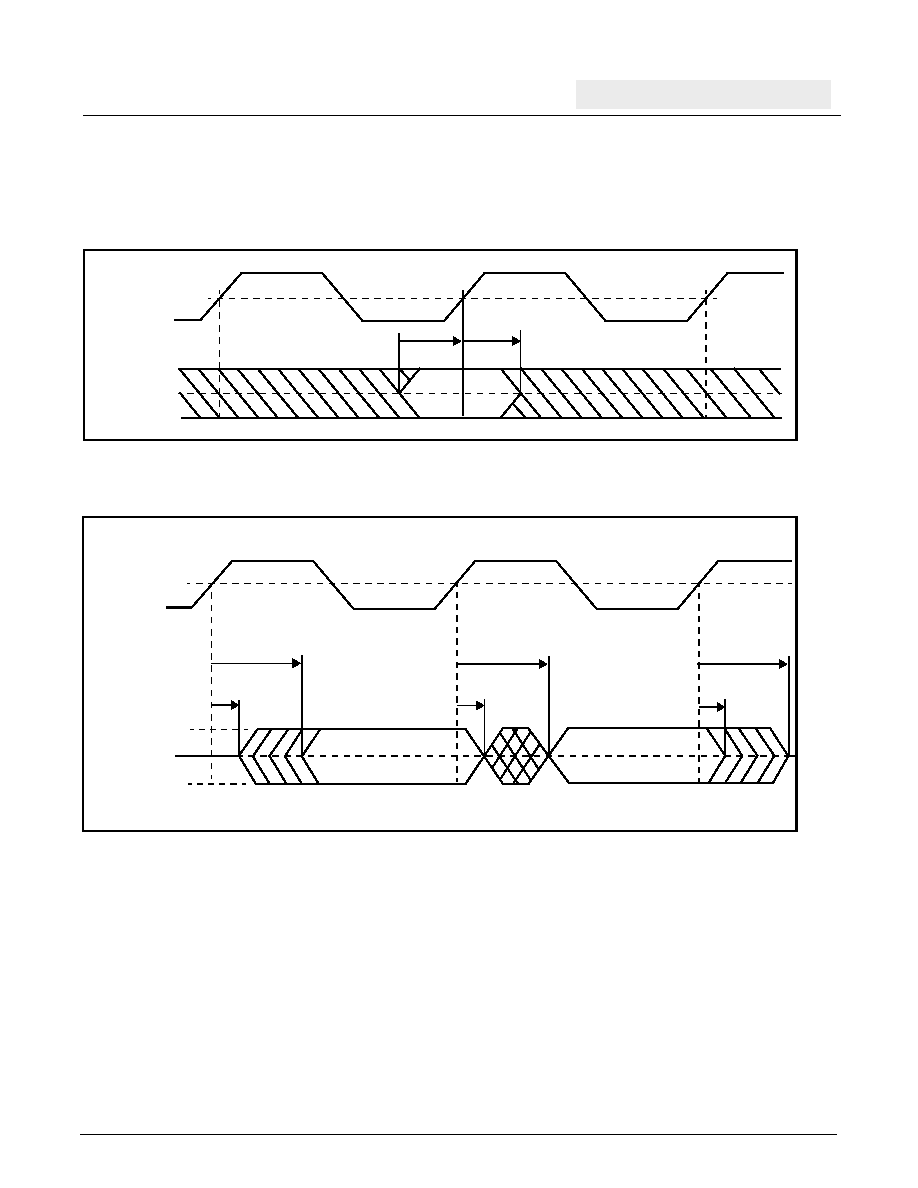

These timing diagrams illustrate the relationship of the timing parameters defined in the I/O Specification tables
that follow.
Figure 5. Input Setup and Hold Waveform
Figure 6. Output Delay and Hold Timing Waveform
Clock
TIS
TIH
min
min
Inputs
Valid
Valid
Clock
Outputs
Valid
TOHmin
TOVmax
TOVmax
TOHmin
TOVmax
TOHmin
Float (High-Z)
High (Drive)
Low (Drive)
