• 1 watt in a 2512 package size(2W @25°C)

• Available in 2 & 4 terminal (Kelvin) designs

• Very low resistance range (.0005Ω to .003Ω)

• High current handling capacity (45 amps continuous max)

• Low TCR (20 ppm/°C) resistor alloy

• ±5% & 1% Standard Tolerance (see note on 1% tolerance)

OPERATING CHARACTERISTICS:

• Load Life @ 70°C: 1% ∆ Max

• Moisture No Load: 1% ∆ Max

• Temp Cycle @ -40°C & +125°C: 1% ∆ Max

APPLICATIONS:

• Current Sensing

• Feed Back

• High Frequency

FEATURES:

• Low Inductance

• Rugged Construction

• Surface Mount

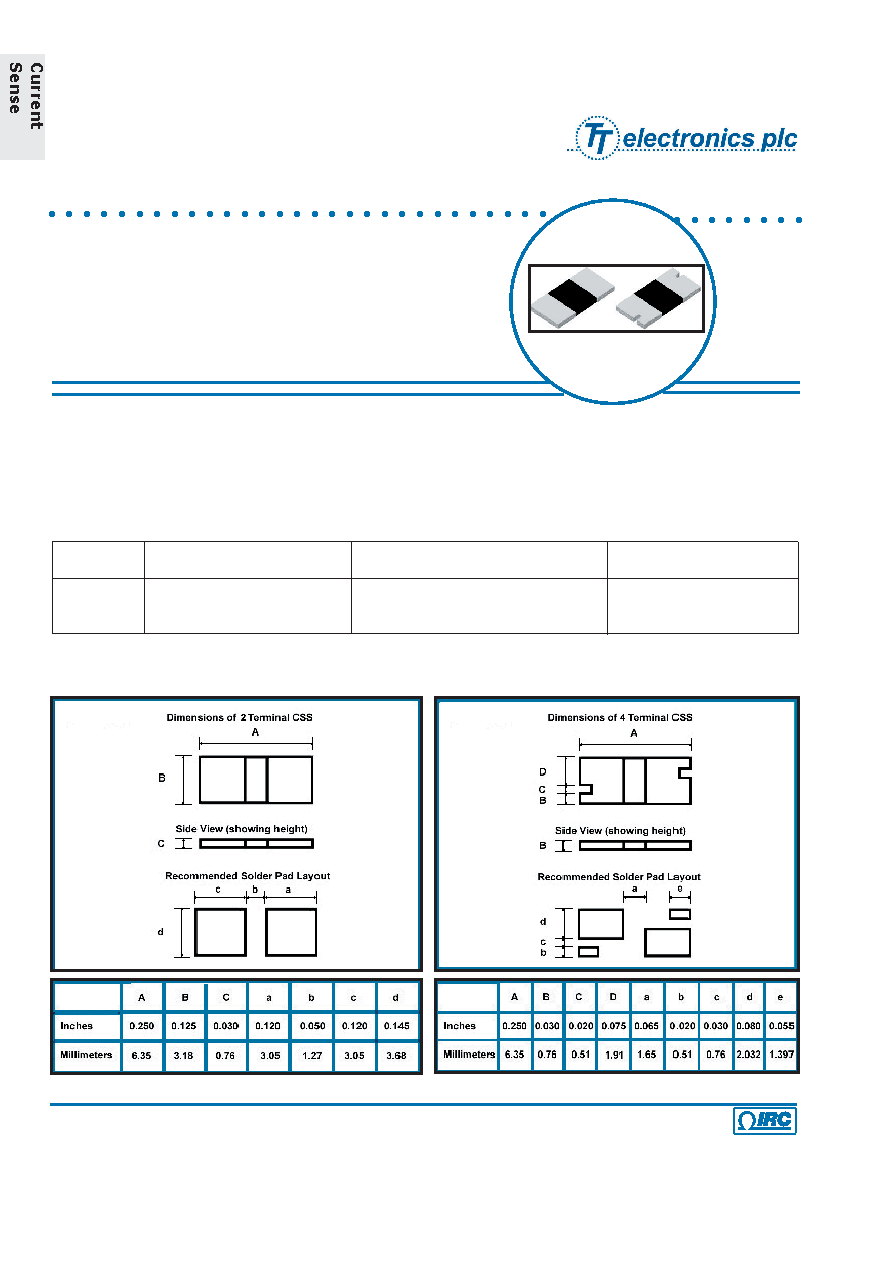

DIMENSIONS:

SPECIFICATIONS:

Power

(watts)

1@70° C

Current Rating

(amps)

Range Dependant

(45 cont. max)

Standard Resistance Values

(Ω)

0.0005Ω, 0.001Ω, 0.0015Ω &

0.002Ω, 0.003Ω

*contact factory for other values

Tolerance

(±%)

5%, 1%*

*Product performance within 1% distribution centered on nominal. Test nominal set by a Tegam 1750 at 25°C as calibrated to the test system’s

capability.

CSS SERIES

CURRENT SENSE SMT CHIP RESISTOR

WIREWOUND AND FILM TECHNOLOGIES DIVISION
