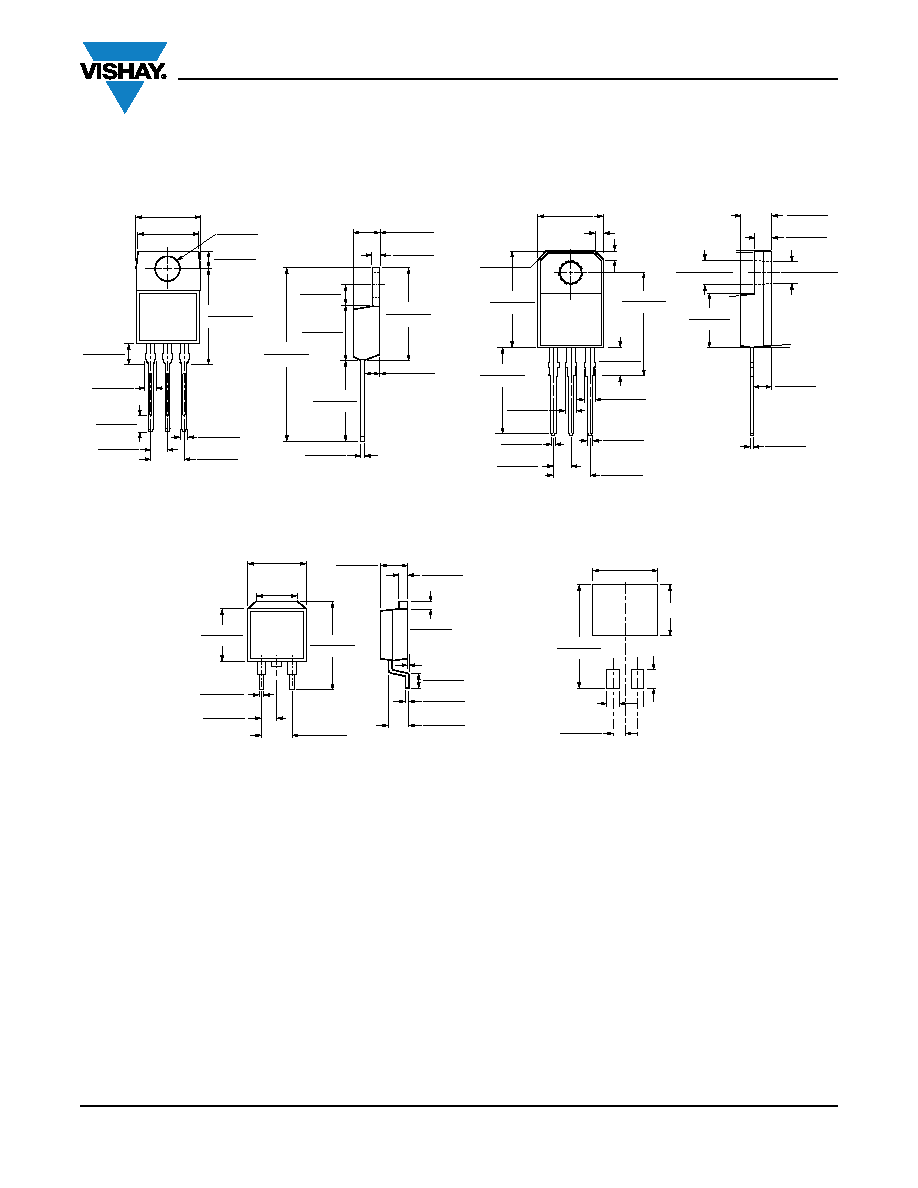

4 / 4 page  MBR30x5CT, MBRF30x5CT, MBRB30x5CT www.vishay.com Vishay General Semiconductor Revision: 11-Jun-13 4 Document Number: 88677 PACKAGE OUTLINE DIMENSIONS in inches (millimeters) TO-220AB 0.113 (2.87) 0.103 (2.62) 0.370 (9.40) 0.360 (9.14) 0.415 (10.54) MAX. 0.635 (16.13) 0.625 (15.87) PIN 0.160 (4.06) 0.140 (3.56) 0.057 (1.45) 0.045 (1.14) 0.105 (2.67) 0.095 (2.41) 0.104 (2.65) 0.096 (2.45) 0.205 (5.20) 0.195 (4.95) 0.035 (0.90) 0.028 (0.70) 0.154 (3.91) 0.148 (3.74) 1 3 2 0.185 (4.70) 0.175 (4.44) 0.055 (1.39) 0.045 (1.14) 0.145 (3.68) 0.135 (3.43) 0.350 (8.89) 0.330 (8.38) 1.148 (29.16) 1.118 (28.40) 0.560 (14.22) 0.530 (13.46) 0.022 (0.56) 0.014 (0.36) 0.110 (2.79) 0.100 (2.54) 0.603 (15.32) 0.573 (14.55) ITO-220AB 0.076 (1.93) REF. 45° REF. PIN 3 2 1 0.404 (10.26) 0.384 (9.75) 0.076 (1.93) REF. 0.600 (15.24) 0.580 (14.73) 0.560 (14.22) 0.530 (13.46) 0.057 (1.45) 0.045 (1.14) 0.057 (1.45) 0.045 (1.14) 0.191 (4.85) 0.171 (4.35) 0.671 (17.04) 0.651 (16.54) 0.035 (0.89) 0.025 (0.64) 0.205 (5.21) 0.195 (4.95) 0.025 (0.64) 0.015 (0.38) 0.105 (2.67) 0.095 (2.41) 0.028 (0.71) 0.020 (0.51) 0.110 (2.79) 0.100 (2.54) 7° REF. 0.135 (3.43) DIA. 0.122 (3.08) DIA. 0.110 (2.79) 0.100 (2.54) 0.190 (4.83) 0.170 (4.32) 7° REF. 7° REF. 0.140 (3.56) DIA. 0.125 (3.17) DIA. 0.350 (8.89) 0.330 (8.38) TO-263AB Mounting Pad Layout 0.670 (17.02) 0.591 (15.00) 0.105 (2.67) 0.095 (2.41) 0.08 (2.032) MIN. 0.15 (3.81) MIN. 0.33 (8.38) MIN. 0.42 (10.66) MIN. 12 K K 0.140 (3.56) 0.110 (2.79) 0.021 (0.53) 0.014 (0.36) 0.110 (2.79) 0.090 (2.29) 0 to 0.01 (0 to 0.254) 0.055 (1.40) 0.047 (1.19) 0.055 (1.40) 0.045 (1.14) 0.190 (4.83) 0.160 (4.06) 0.205 (5.20) 0.195 (4.95) 0.624 (15.85) 0.591 (15.00) 0.037 (0.940) 0.027 (0.686) 0.105 (2.67) 0.095 (2.41) 0.360 (9.14) 0.320 (8.13) 0.411 (10.45) 0.380 (9.65) 0.245 (6.22) MIN. |
|
|
