ADL5571
Rev. 0 | Page 8 of 16
22
24
26
28
30
32
34
+25°C
+85°C
–40°C
POUT (dBm)
10
12
14
16
18
20
22
24
26
28
30

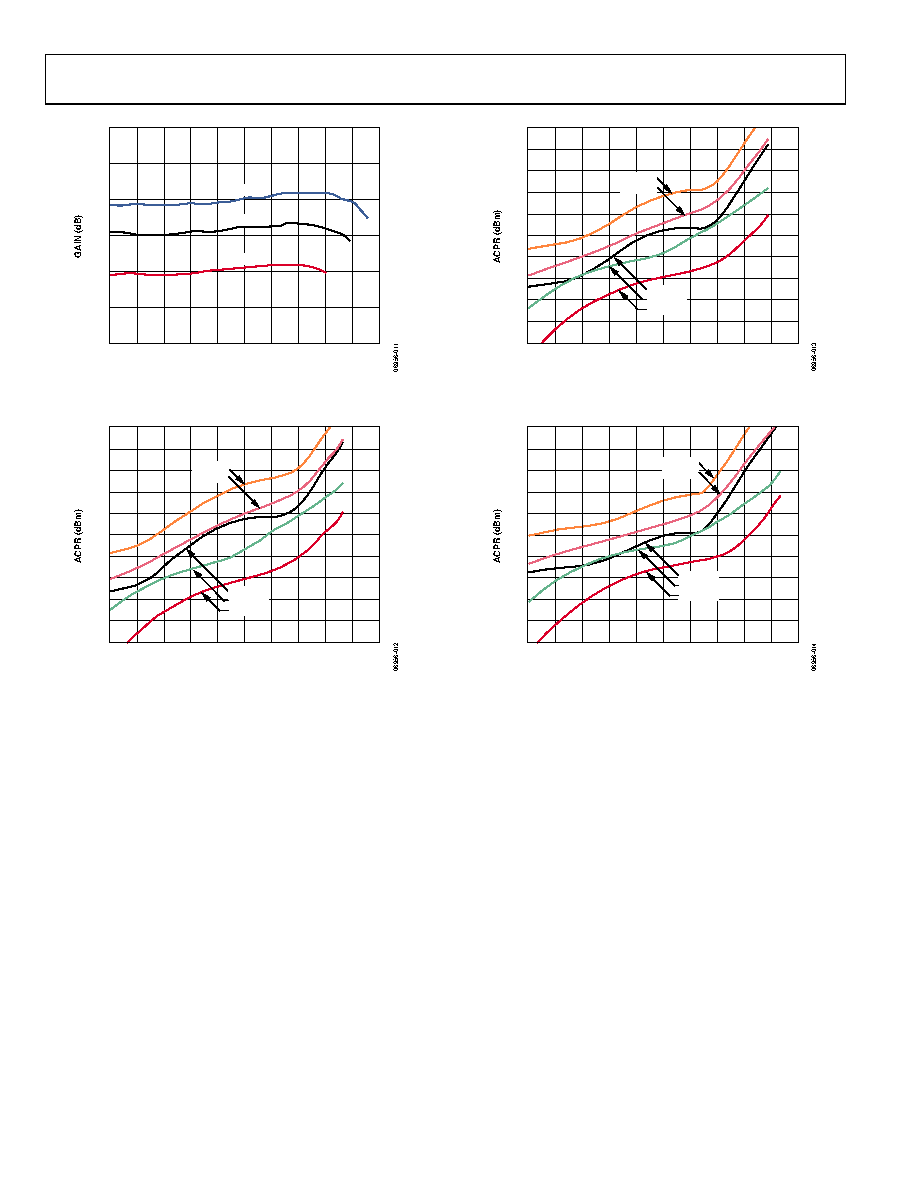

Figure 7. Gain vs. POUT at 2.6 GHz, Temperatures −40°C, +25°C, and +85°C
–60
–50
–40
–30
–20
–55
–45
–35
–25
–15
–10
POUT (dBm)
10
12
14
16
18
20
22
24
26
28
30
6.5MHz
11MHz
5.05MHz
15MHz
20.5MHz
Figure 8. ACPR Measurement at 2.5 GHz
–60
–50
–40
–30
–20
–55
–45
–35
–25
–15
–10
POUT (dBm)
10
12
14
16
18
20
22
24
26
28
30
5.05MHz
15MHz
20.5MHz
6.5MHz
11MHz
Figure 9. ACPR Measurement at 2.6 GHz
–60
–50
–40
–30
–20
–55
–45
–35
–25
–15
–10
POUT (dBm)
10
12
14
16
18
20
22
24
26
28
30
6.5MHz
11MHz
5.05MHz
15MHz
20.5MHz
Figure 10. ACPR Measurement at 2.7 GHz
