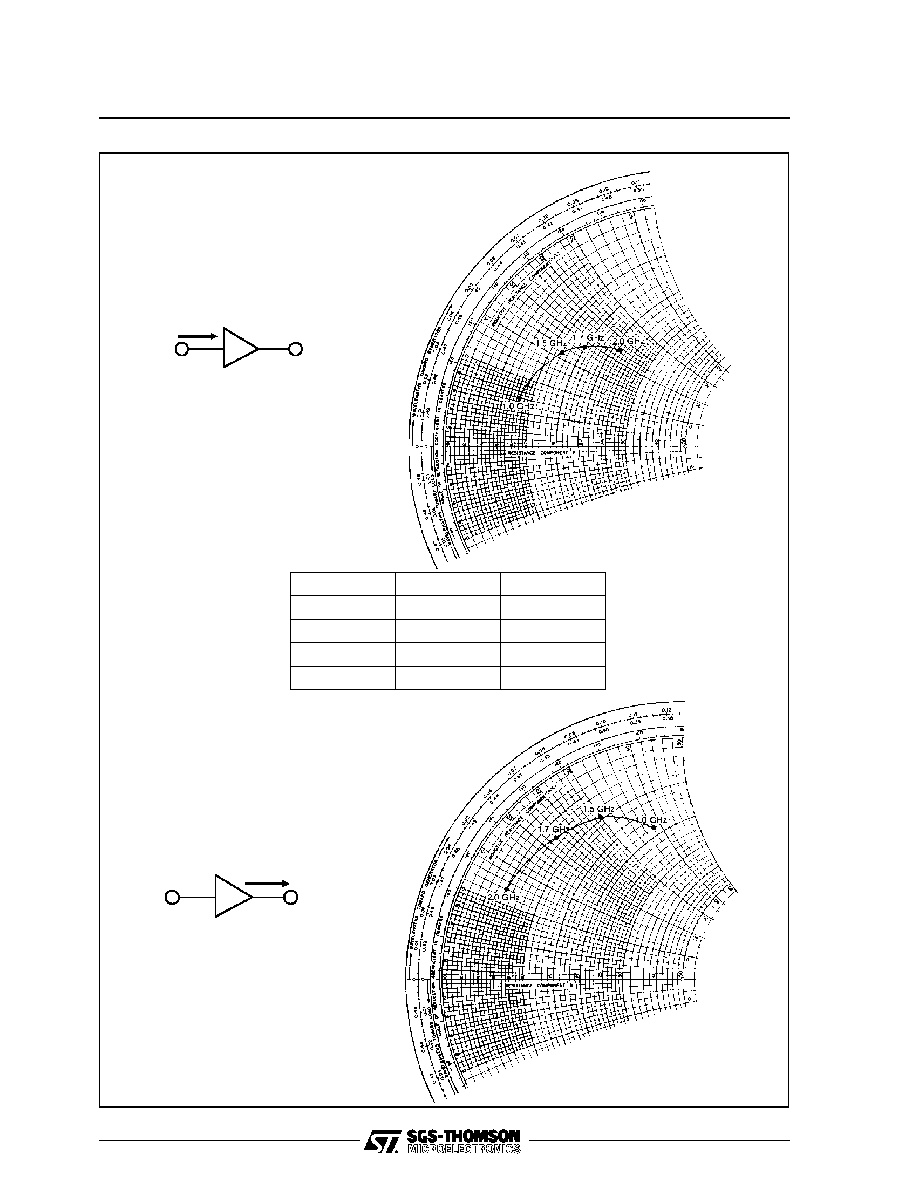

TYPICAL INPUT
IMPEDANCE
TYPICAL COLLECTOR
LOAD IMPEDANCE
PIN
= 0.2 W
VCC
= 28 V
Normalized to 50 ohms
POUT
= Saturated
VCC
= 28 V
Normalized to 50 ohms
IMPEDANCE DATA
ZIN
ZCL
FREQ.
ZIN (
Ω)ZCL (Ω)
1.0 GHz
8.3 + j 7.0
18.0 + j 38.0
1.5 GHz
12.0 + j 16.0
9.6 + j 30.0
1.7 GHz
15.0 + j 14.0
7.0 + j 22.0
2.0 GHz
21.5 + j 22.5
5.0 + j 12.0
MSC82001
3/5
