ADG774A
Data Sheet
Rev. C | Page 12 of 14

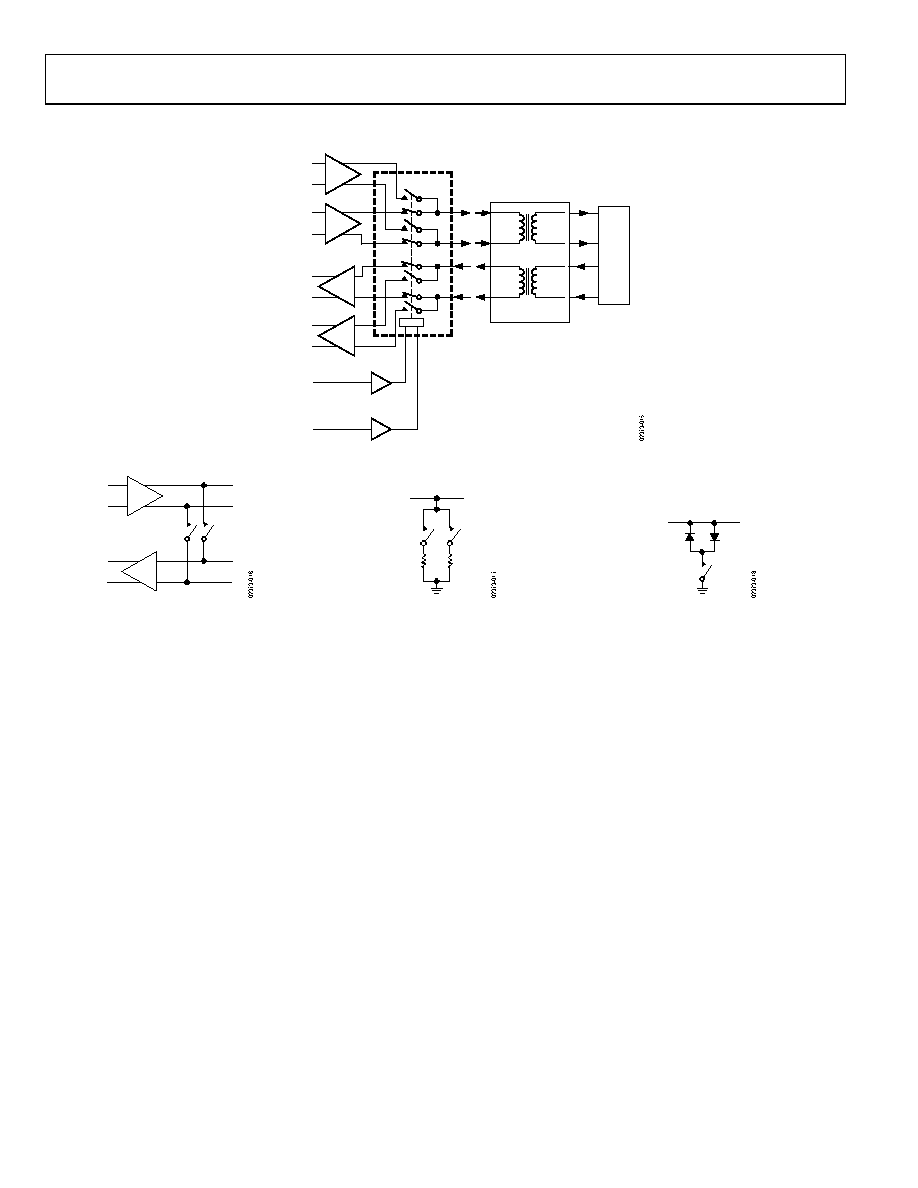

APPLICATION CIRCUITS
ADG774A
TRANSFORMER
Tx1
Tx2
Rx1
Rx2
10 BASE Tx+
10 BASE Tx–
100 BASE Tx+
100 BASE Tx–
10 BASE Tx+
10 BASE Tx–
100 BASE Tx+
100 BASE Tx–
10 BASE Tx
100 BASE Tx
RJ45
Figure 25. Full Duplex Transceiver
Tx1
Rx1
120Ω
100Ω
Figure 26. Loop Back
Figure 27. Line Termination
Figure 28. Line Clamp
