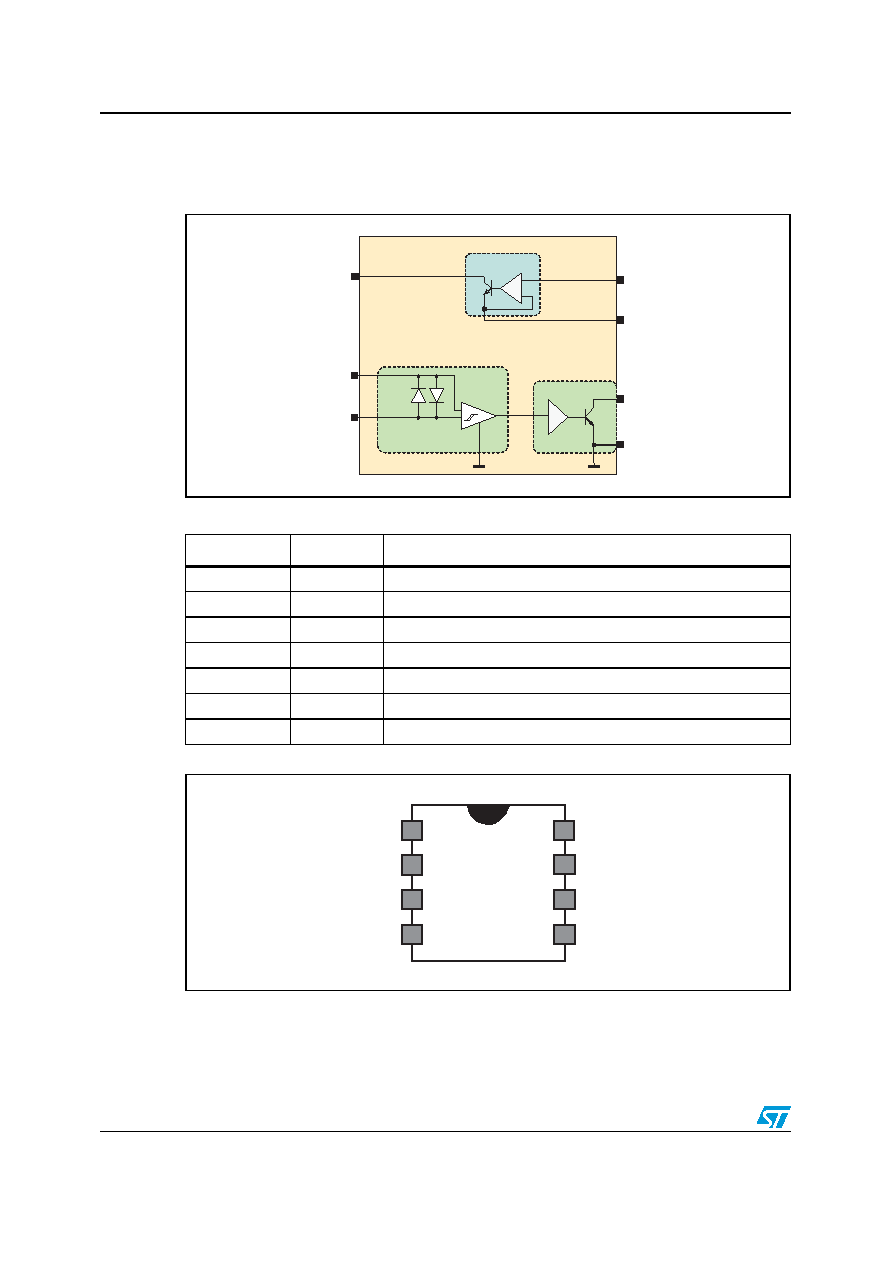

background image
Characteristics
STCC08
2/13
1
Characteristics
Figure 1.
Circuit block diagram
Figure 2.
Pin layout (top view)
Table 1.
Circuit pin descriptions
Symbol
Type
Description
IN
SIGNAL
Logic AC switch drive
AVF
SIGNAL
Alternating voltage feedback: AC switch status output
AC
SIGNAL
AC switch status sense input
VCC
POWER
Positive power supply
G
SIGNAL
AC switch gate driver output
RIG
SIGNAL
AC switch gate current setting
GND
POWER
Power supply reference
AVF
V
CC
GND
R
IG
AC
IN
G
POWER SWITCH
SIGNAL SHAPING
AVF DRIVER
GATE DRIVER
+
-
AC
R
IG
G
AVF
IN
GND
V
CC
N/C
AC
R
IG
G
AVF
IN
GND
V
CC
N/C
