ELECTRICAL SPECIFICATIONS
Issue 1.0 - July 24, 2002
59/111
4.5.7 LOCAL BUS INTERFACE
Figure 4-3 to Figure 4-12 and Table 4-16 list the
AC characteristics of the Local Bus interface.

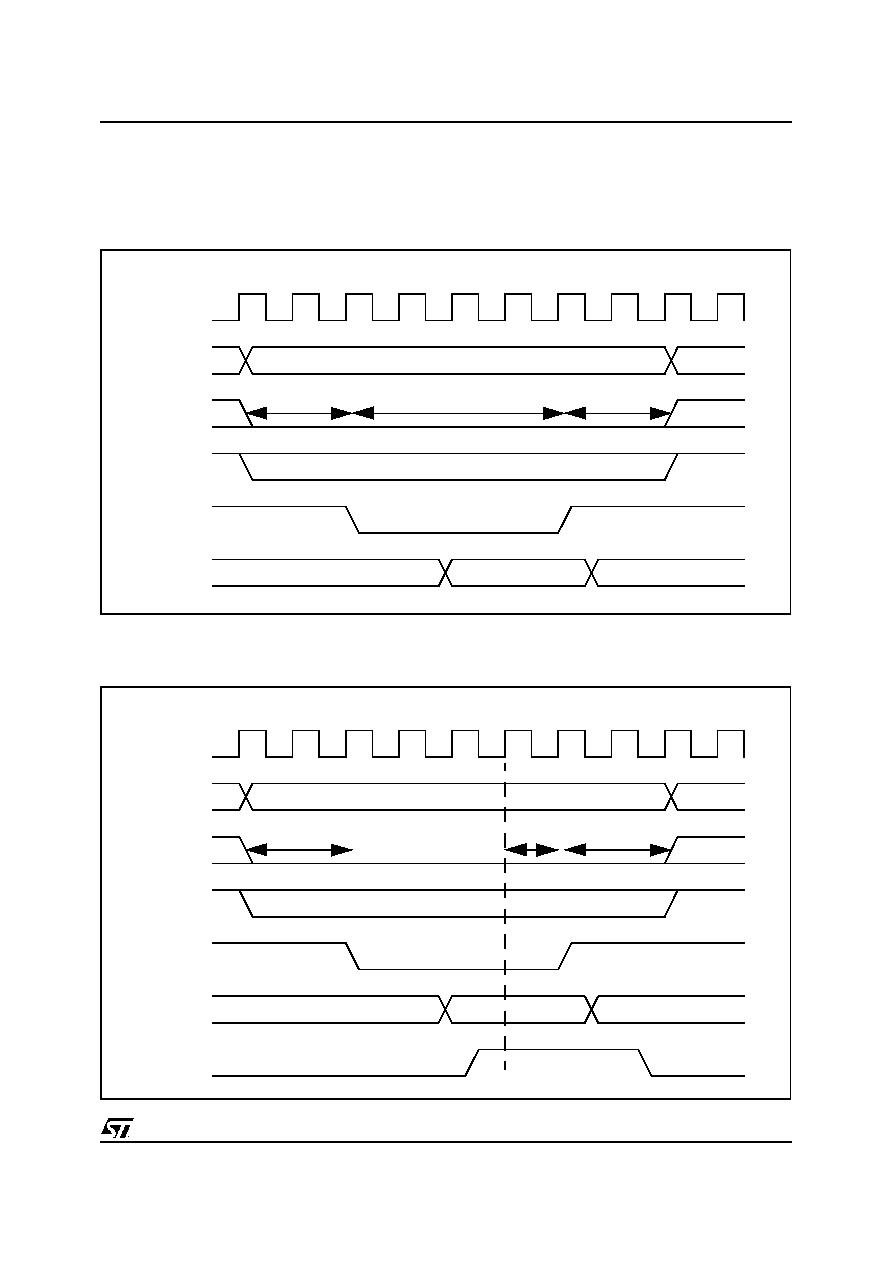

Figure 4-9. Synchronous Read Cycle
PA[ ] bus
CSx#
BE#[1:0]
PRD#
HCLK
Tsetup
Tactive
Thold
PD[15:0]
Figure 4-10. Asynchronous Read Cycle
PA[ ] bus
CSx#
BE#[1:0]
PRD#
HCLK
Tsetup
Tend
Thold
PD[15:0]
PRDY
