ADP8860

Rev. 0 | Page 49 of 52

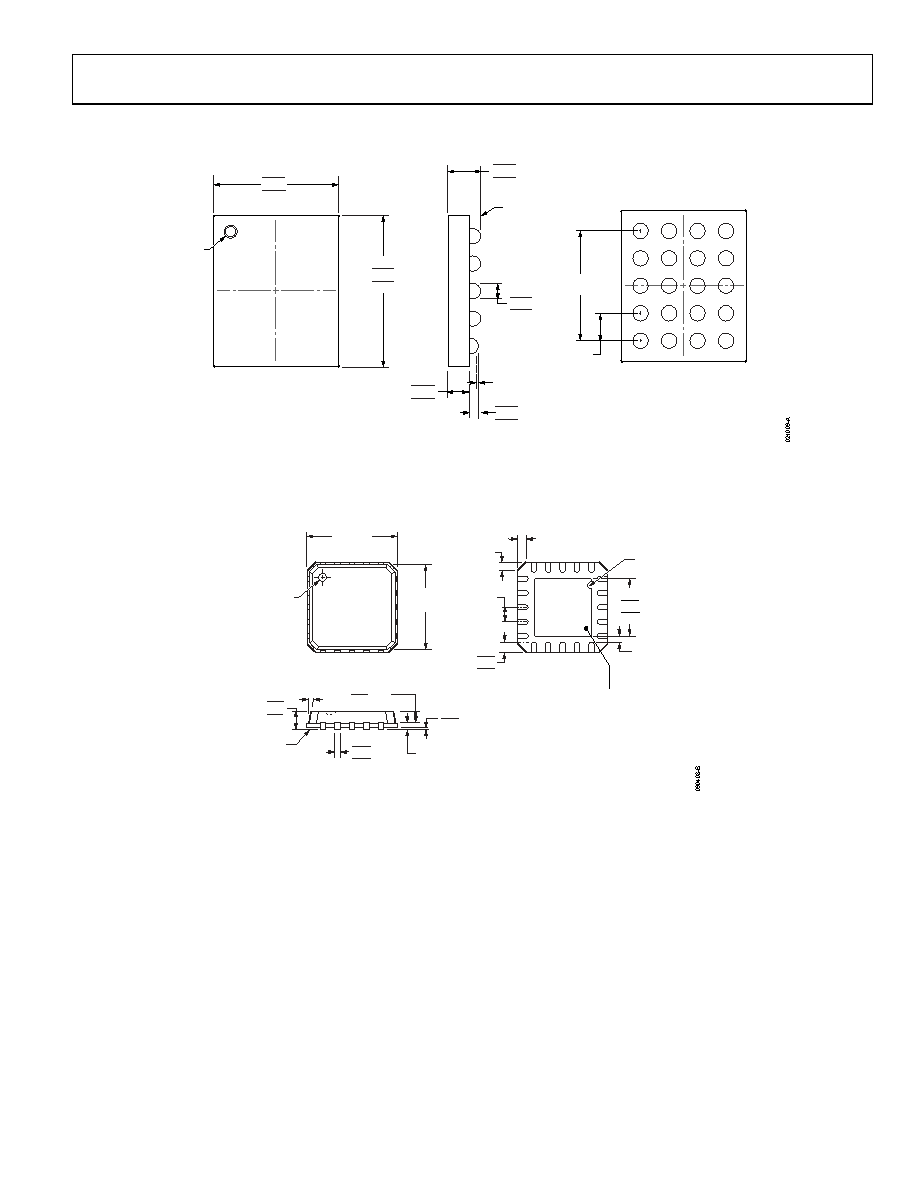

OUTLINE DIMENSIONS

0.645

0.600

0.555

1.995

1.955

1.915

BOTTOM VIEW

(BALL SIDE UP)

TOP VIEW

(BALL SIDE DOWN)

0.287

0.267

0.247

1.60

REF

SEATING

PLANE

0.40

REF

0.415

0.400

0.385

0.230

0.200

0.170

0.05 MAX

COPLANARITY

2.395

2.355

2.315

BALL A1

IDENTIFIER

Figure 47. 20-Ball Wafer Level Chip Scale Package [WLCSP]

(CB-20-6)

Dimensions shown in millimeters

2.65

2.50 SQ

2.35

3.75

BSC SQ

4.00

BSC SQ

0.50

BSC

PIN 1

INDICATOR

0.50

0.40

0.30

COMPLIANT

TO JEDEC STANDARDS MO-220-VGGD-1

TOP VIEW

12° MAX

0.80 MAX

0.65 TYP

SEATING

PLANE

PIN 1

INDICATOR

COPLANARITY

0.08

1.00

0.85

0.80

0.30

0.23

0.18

0.05 MAX

0.02 NOM

0.20 REF

EXPOSED

PAD

(BOTTOM VIEW)

0.60 MAX

0.25 MIN

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

Figure 48. 20-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

4 mm × 4 mm Body, Very Thin Quad

(CP-20-4)

Dimensions shown in millimeters
