AD8622
Rev. 0 | Page 12 of 20
100
10
1
1
10
100
1k
FREQUENCY (Hz)
VSY = ±15V

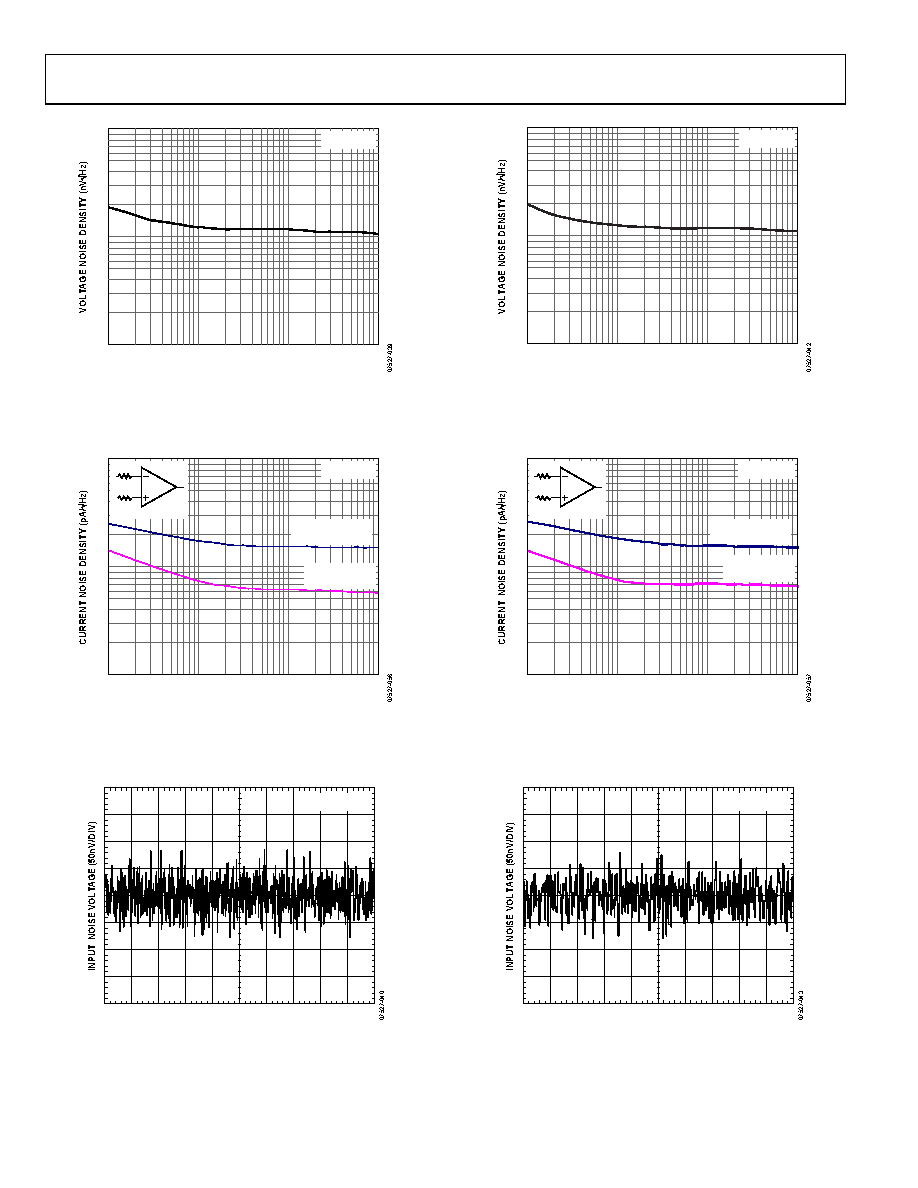

Figure 39. Voltage Noise Density vs. Frequency
1
0.1
0.01
1
10
100
1k
FREQUENCY (Hz)
VSY = ±15V
UNCORRELATED
RS1 = 0Ω
CORRELATED
RS1 = RS2
RS1
RS2
Figure 40. Current Noise Density vs. Frequency
TIME (1s/DIV)
VSY = ±15V
Figure 41. 0.1 Hz to 10 Hz Noise
100
10
1
1
10
100
1k
FREQUENCY (Hz)
VSY = ±2.5V
Figure 42. Voltage Noise Density vs. Frequency
1
0.1
0.01
110
100
FREQUENCY (Hz)
1k
VSY = ±2.5V
UNCORRELATED
RS1 = 0Ω
CORRELATED
RS1 = RS2
RS1
RS2
Figure 43. Current Noise Density vs. Frequency
TIME (1s/DIV)
VSY = ±2.5V
Figure 44. 0.1 Hz to 10 Hz Noise
