ADL5601
Rev. 0 | Page 13 of 16
EVALUATION BOARD

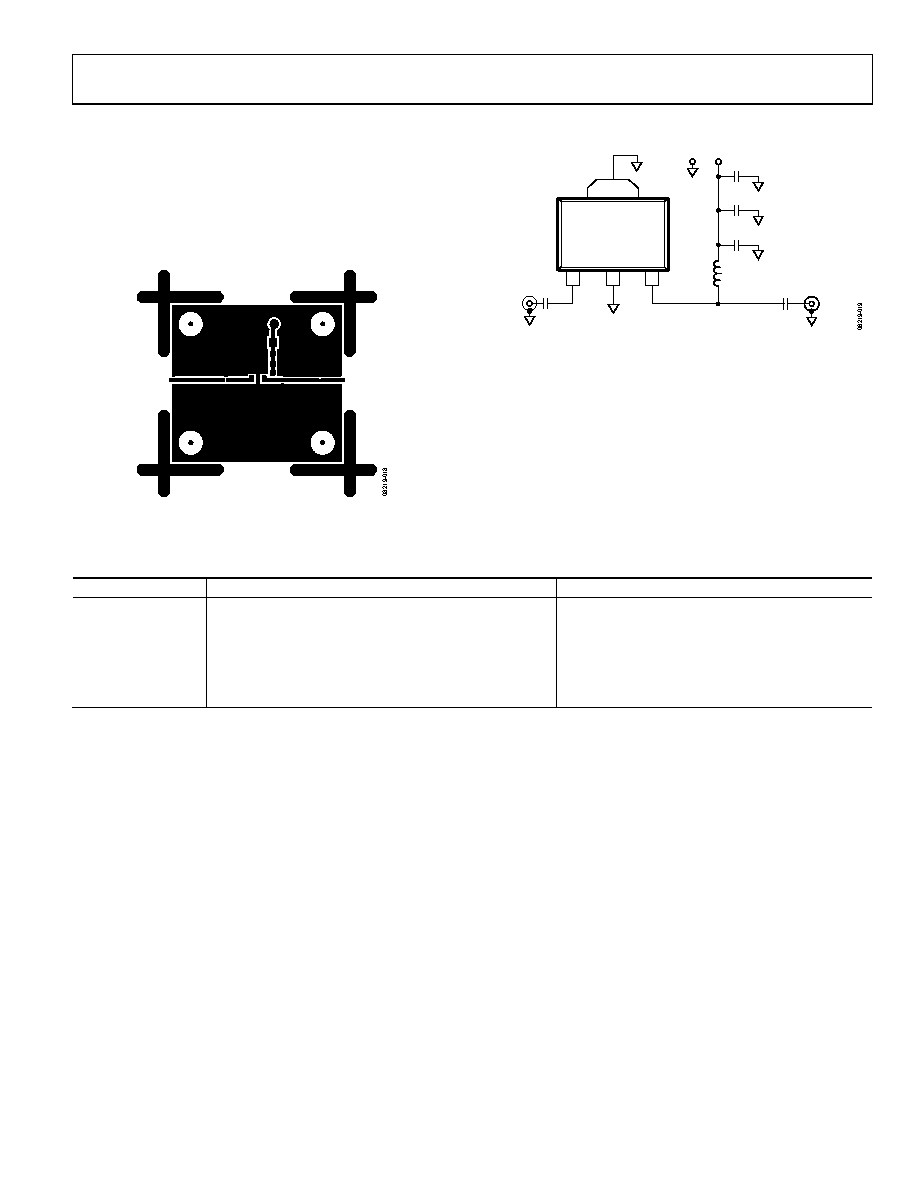

Figure 18 shows the evaluation board layout, and Figure 19
shows the schematic for the ADL5601 evaluation board. The
board is powered by a single 5 V supply.
The components used on the board are listed in Table 6.
Power can be applied to the board through clip-on leads
(VCC and GND).
Figure 18. Evaluation Board Layout (Top)
C6
1µF
C5
1.2nF
C4
68pF
VCC
RFOUT
RFIN
RFIN
GND
GND
RFOUT
1
2
3
ADL5601
(2)
C2
0.1µF
L1
470nH
C1
0.1µF
GND
Figure 19. Evaluation Board Schematic
Table 6. Evaluation Board Configuration Options
Component
Description
Default Value
C1, C2
AC coupling capacitors
0.1 μF, 0402
L1
DC bias inductor
470 nH, 0603 (Coilcraft 0603LS-NX or equivalent)
VCC and GND
Clip-on terminals for power supply
C4
Power supply decoupling capacitor
68 pF, 0603
C5
Power supply decoupling capacitor
1.2 nF, 0603
C6
Power supply decoupling capacitor
1 μF, 1206
