ADP1650
Rev. 0 | Page 29 of 32
OUTLINE DIMENSIONS
A
B
C
D
0.660
0.602
0.544
1.54
1.50
1.46
2.04
2.00
1.96
1
2
3
BOTTOM VIEW
(BALL SIDE UP)
TOP VIEW
(BALL SIDE DOWN)
0.330
0.310
0.290
1.50
REF
SEATING
PLANE
1.00
REF
0.50
REF
0.380
0.352
0.324
0.280
0.250
0.220
0.04 MAX
COPLANARITY
0.022
REF
BALL A1
IDENTIFIER

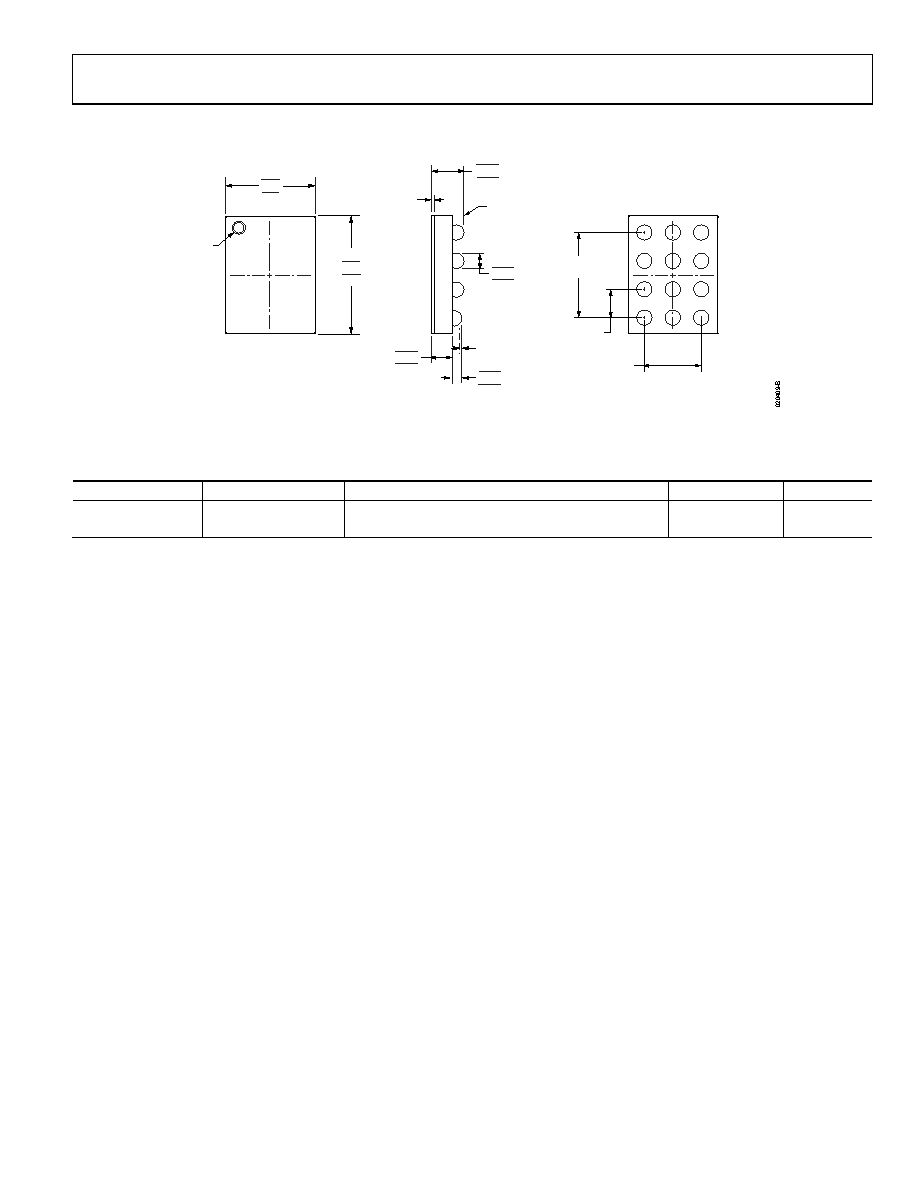

Figure 36. 12-Ball Wafer Level Chip Scale Package [WLCSP]
(CB-12-4)
Dimensions shown in millimeters
ORDERING GUIDE
Model1
Temperature Range
Package Description
Package Option
Branding
ADP1650ACBZ-R7
–40°C to +125°C
12-Ball Wafer Level Chip Scale Package [WLCSP]
CB-12-42
LE4
ADP1650CB-EVALZ
Evaluation Board
1
Z= RoHS Compliant Part.
2
This package option is halide free.
