Typical applications

Snubbering

Filtering

IGBT

Climatic

Max. operating temperature: 110

°C

Climatic category (IEC 60068-1): 55/100/56

Construction

Dielectric: polypropylene (PP)

Film metallized on one side and

metal foils internally connected in series

Plastic case, epoxy resin sealing (UL 94 V-0)

Features

Very high pulse strength

High current

Highest possible contact reliability

Terminals

Strap terminals, tinned copper (max. torque 10 Nm)

Marking

Manufacturer's logo, ordering code, style (MFP)

rated capaitance (coded), cap. tolerance (code letter),

rated DC voltage, date of manufacture (coded)

Delivery mode: Bulk (untaped)

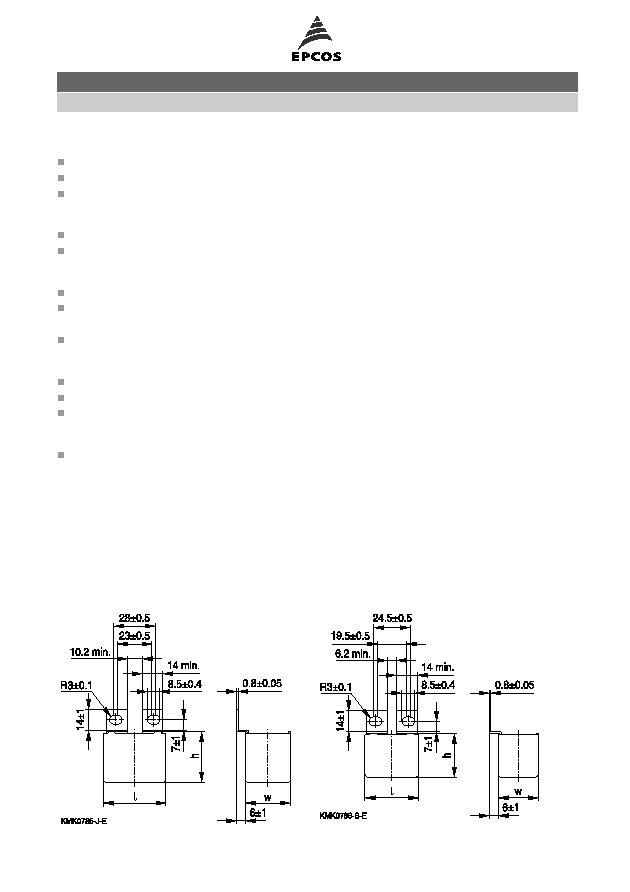

Dimensional drawings

T1 (code no. 561)

T2 (code no. 562)

Metallized polypropylene film capacitors (MFP)

B32686S

Snubber
