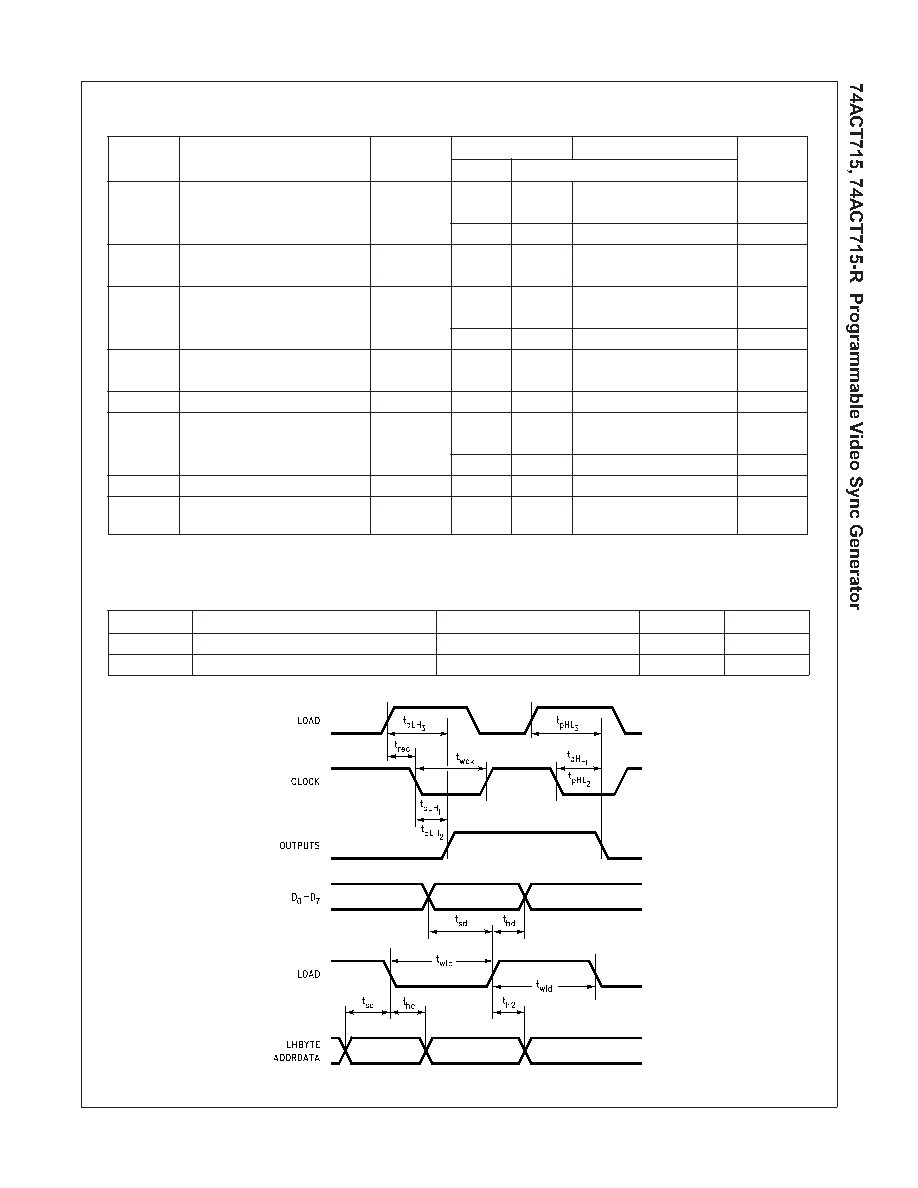

AC Operating Requirements
Note:
3. Removal of Vectored Reset or Restart to Clock.
Capacitance
Figure 6. AC Specifications
Symbol
Parameter
VCC (V)
TA = +25°C
TA = –40°C to +85°C
Units
Typ.
Guaranteed Minimums
Control Setup Time:
5.0
tsc
ADDR/DATA to LOAD–
3.0
4.0
4.5
ns
tsc
L/HBYTE to LOAD–
3.0
4.0
4.5
ns
tsd
Data Setup Time:
D7–D0 to LOAD+
5.0
2.0
4.0
4.5
ns
Control Hold Time:
5.0
thc
LOAD– to ADDR/DATA
0
1.0
1.0
ns
thc
LOAD– to L/HBYTE
0
1.0
1.0
ns
thd
Data Hold Time:
LOAD+ to D7–D0
5.0
1.0
2.0
2.0
ns
trec
LOAD+ to CLK(3)
5.0
5.5
7.0
8.0
ns
Load Pulse Width:
5.0
twld–
LOW
3.0
5.5
5.5
ns
twld+
HIGH
3.0
5.0
7.5
ns
twclr
CLR Pulse Width HIGH
5.0
5.5
6.5
9.5
ns
twck
CLOCK Pulse Width
(HIGH or LOW)
5.0
2.5
3.0
3.5
ns
Symbol
Parameter
Conditions
Typ.
Units
CIN
Input Capacitance
VCC = 5.0V
7.0
pF
CPD
Power Dissipation Capacitance
VCC = 5.0V
17.0
pF
