AD8375
Rev. 0 | Page 11 of 24
0
–20
–40
–60
–80
–100
–120
0
100
200
300
400
500
600
700
800
900 1000
FREQUENCY (MHz)

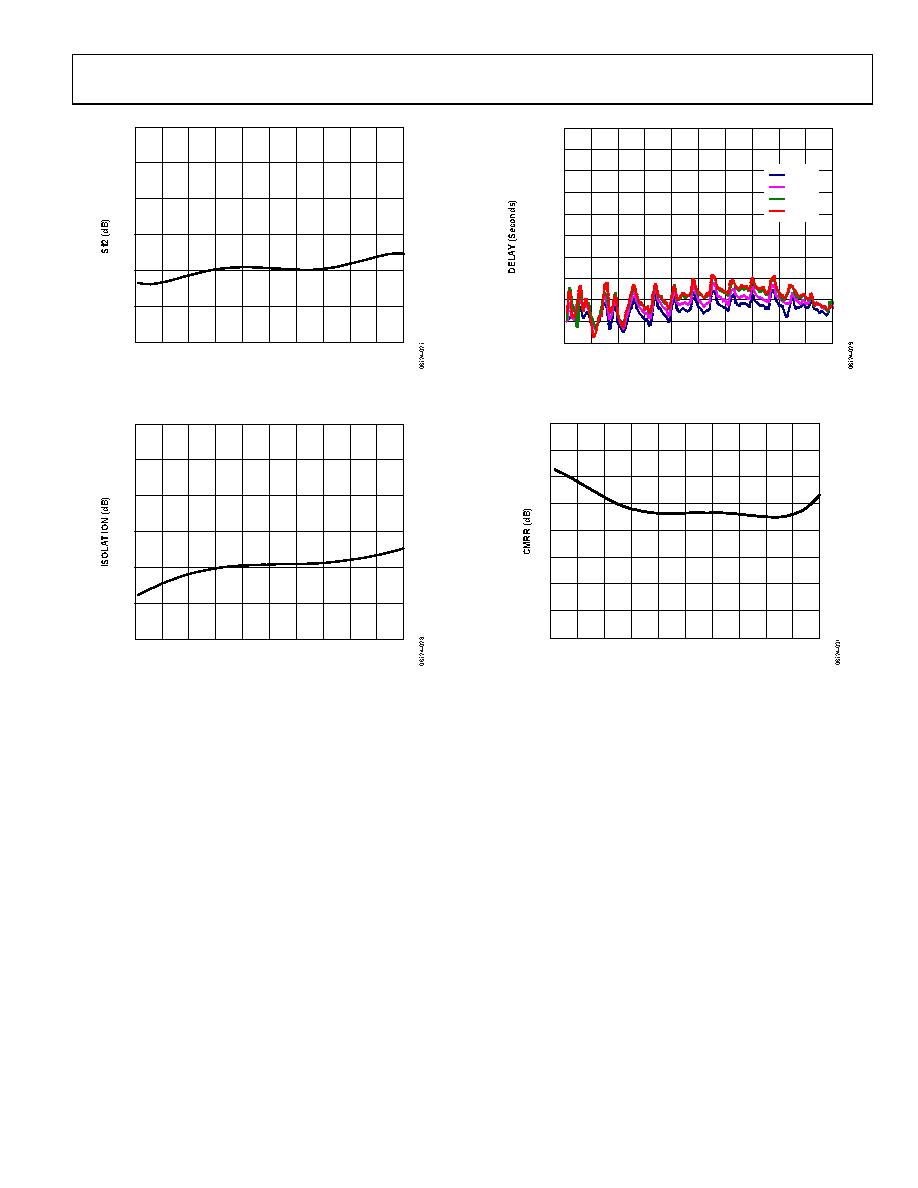

Figure 28. Reverse Isolation vs. Frequency
0
–20
–40
–60
–80
–100
–120
0
100
200
300
400
500
600
700
800
900 1000
FREQUENCY (MHz)
Figure 29. Off-State Isolation vs. Frequency
1.00E–09
9.00E–10
8.00E–10
7.00E–10
6.00E–10
5.00E–10
4.00E–10
3.00E–10
2.00E–10
1.00E–10
0.00E+00
0
100
200
300
400
500
600
700
800
900 1000
FREQUENCY (MHz)
+20dB
+10dB
0dB
–4dB
Figure 30. Group Delay vs. Frequency at Gain
80
70
60
50
40
30
20
10
0
0
100
200
300
400
500
600
700
800
900 1000
FREQUENCY (MHz)
Figure 31. Common-Mode Rejection Ratio vs. Frequency
