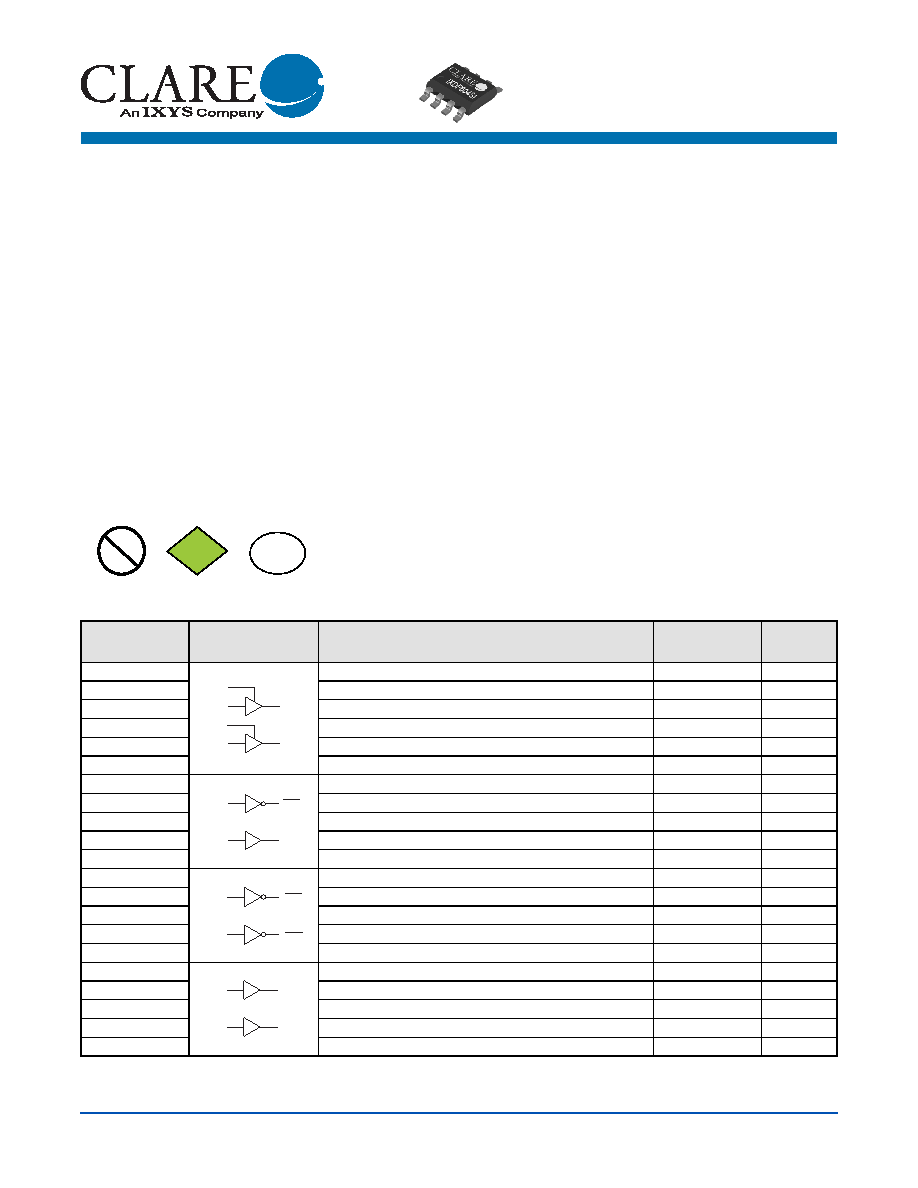

1 / 13 page  DS-IXD_604 - R02 www.clare.com 1 RoHS 2002/95/EC e3 Pb Features • 4A Peak Source/Sink Drive Current • Wide Operating Voltage Range: 4.5V to 35V • -40°C to +125°C Extended Operating Temperature Range • Logic Input Withstands Negative Swing of up to 5V • Matched Rise and Fall Times • Low Propagation Delay Time • Low, 10 μA Supply Current • Low Output Impedance Applications • Efficient Power MOSFET and IGBT Switching • Switch Mode Power Supplies • Motor Controls • DC to DC Converters • Class-D Switching Amplifiers • Pulse Transformer Driver Description The IXDD604/IXDF604/IXDI604/IXDN604 dual high-speed gate drivers are especially well suited for driving the latest IXYS MOSFETs and IGBTs. Each of the two outputs can source and sink 4A of peak current while producing voltage rise and fall times of less than 10ns. The input of each driver is virtually immune to latch up, and proprietary circuitry eliminates cross conduction and current “shoot-through.” Low propagation delay and fast, matched rise and fall times make the IXD_604 family ideal for high-frequency and high-power applications. The IXDD604 is a dual non-inverting driver with an enable. The IXDN604 is a dual non-inverting driver, the IXDI604 is a dual inverting driver, and the IXDF604 has one inverting driver and one non-inverting driver. The IXD_604 family is available in a standard 8-pin DIP (PI), 8-pin SOIC (SIA), 8-pin Power SOIC with an exposed metal back (SI), and an 8-pin DFN (D2) package. Ordering Information Part Number Logic Configuration Package Type Packing Method Quantity IXDD604D2TR 8-Pin DFN Tape & Reel 2000 IXDD604PI 8-Pin DIP Tube 50 IXDD604SI 8-Pin Power SOIC with Exposed Metal Back Tube 100 IXDD604SITR 8-Pin Power SOIC with Exposed Metal Back Tape & Reel 2000 IXDD604SIA 8-Pin SOIC Tube 100 IXDD604SIATR 8-Pin SOIC Tape & Reel 2000 IXDF604PI 8-Pin DIP Tube 50 IXDF604SI 8-Pin Power SOIC with Exposed Metal Back Tube 100 IXDF604SITR 8-Pin Power SOIC with Exposed Metal Back Tape & Reel 2000 IXDF604SIA 8-Pin SOIC Tube 100 IXDF604SIATR 8-Pin SOIC Tape & Reel 2000 IXDI604PI 8-Pin DIP Tube 50 IXDI604SI 8-Pin Power SOIC with Exposed Metal Back Tube 100 IXDI604SITR 8-Pin Power SOIC with Exposed Metal Back Tape & Reel 2000 IXDI604SIA 8-Pin SOIC Tube 100 IXDI604SIATR 8-Pin SOIC Tape & Reel 2000 IXDN604PI 8-Pin DIP Tube 50 IXDN604SI 8-Pin Power SOIC with Exposed Metal Back Tube 100 IXDN604SITR 8-Pin Power SOIC with Exposed Metal Back Tape & Reel 2000 IXDN604SIA 8-Pin SOIC Tube 100 IXDN604SIATR 8-Pin SOIC Tape & Reel 2000 ENA INA ENB INB OUTA OUTB A B INA INB A B OUTA OUTB INA INB A B OUTA OUTB INA INB OUTA OUTB A B IXD_604 4-Ampere Dual Low-Side Ultrafast MOSFET Drivers |
