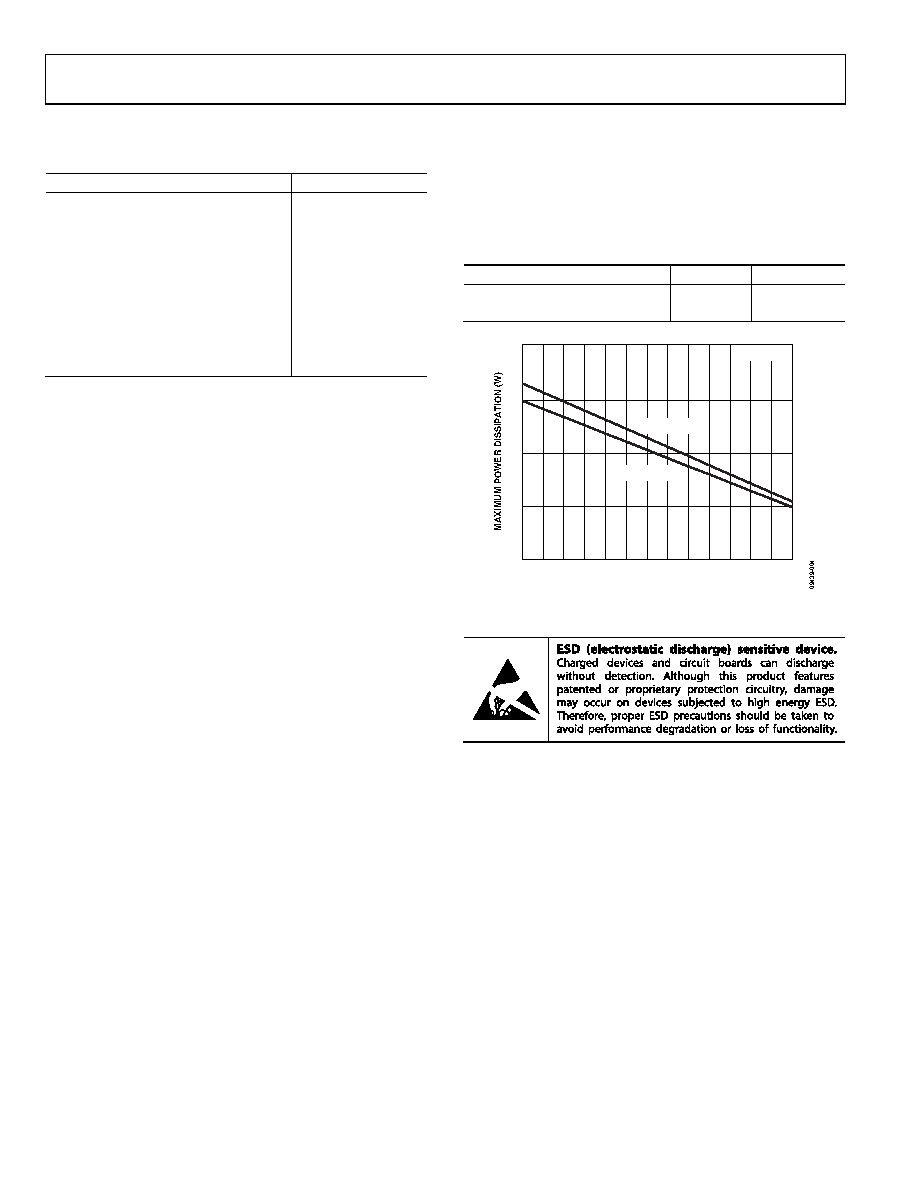

ABSOLUTE MAXIMUM RATINGS

Table 4.

Parameter

Rating

Supply Voltage

36 V

Power Dissipation

See Figure 4

Input Voltage (Common Mode)

±VS ± 0.7 V

Differential Input Voltage

±VS

Output Short-Circuit Duration

See Figure 4

Storage Temperature Range

−65°C to +125°C

Operating Temperature Range

−40°C to +85°C

Lead Temperature (Soldering, 10 sec)

300°C

ESD Ratings (Human Body Model)

4500 V

ESD Ratings (Charged Device Model)

1250 V

Stresses above those listed under Absolute Maximum Ratings

may cause permanent damage to the device. This is a stress

rating only; functional operation of the device at these or any

other conditions above those indicated in the operational

section of this specification is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect

device reliability.

Use the part with caution at the 30 V supply as excessive output

current may overheat and damage the part.

THERMAL RESISTANCE

θJA is specified for the worst-case conditions, that is, a device

soldered in a circuit board for surface-mount packages.

The specification is for the device in free air.

Table 5. Thermal Resistance

Package Type

θJA

Unit

8-Lead SOIC_N

120

°C/W

8-Lead MSOP

133

°C/W

AMBIENT TEMPERATURE (°C)

2.0

1.5

–45 –35 –25 –15

–5

1.0

0.5

TJ = 150°C

8-LEAD MSOP

8-LEAD SOIC

Figure 4. Maximum Power Dissipation vs. Temperature
