ADL5202

Data Sheet

Rev. 0 | Page 8 of 32

TYPICAL PERFORMANCE CHARACTERISTICS

VS = 5 V, TA = 25°C, RS = RL = 150 Ω at 200 MHz, high performance mode, 2 V p-p differential output, unless otherwise noted.

–15

–10

–5

10203040506070

GAIN CODE

46MHz

140MHz

300MHz

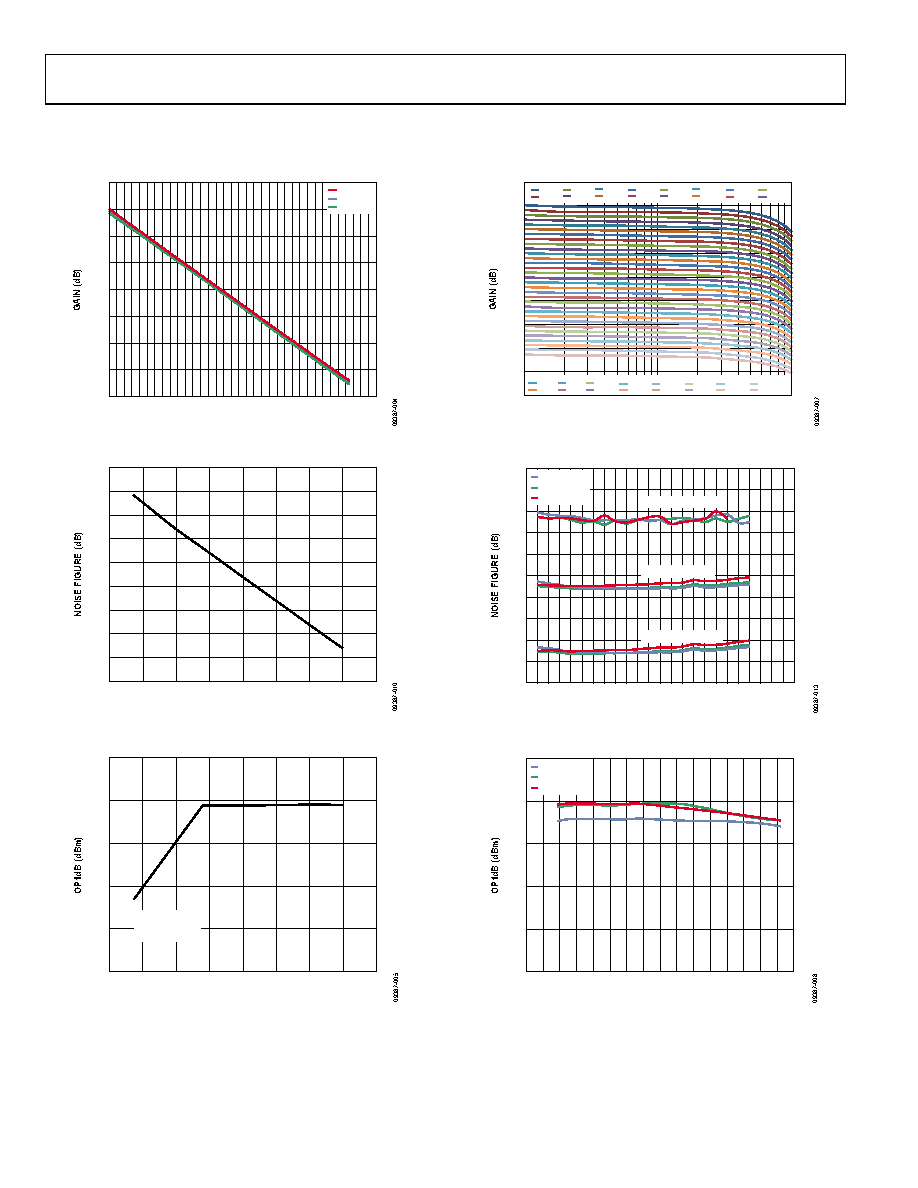

Figure 6. Gain vs. Gain Code at 46 MHz, 140 MHz, and 300 MHz

–15

–10

–5

PROGRAMMED GAIN (dB)

Figure 7. Noise Figure vs. Programmed Gain at 140 MHz

–15

–10

–5

PROGRAMMED GAIN (dB)

INPUT

MAX RATINGS

BOUNDARY

Figure 8. OP1dB vs. Programmed Gain at 140 MHz

–20

–15

–10

–5

100

1000

FREQUENCY (MHz)

4dB

3dB

2dB

1dB

0dB

–1dB

–2dB

–3dB

–4dB

–5dB

–6dB

–7dB

–8dB

–9dB

–10dB

–11dB

20dB

19dB

18dB

17dB

16dB

15dB

14dB

13dB

12dB

11dB

10dB

9dB

8dB

7dB

6dB

5dB

Figure 9. Gain vs. Frequency Response (Every 1 dB Step)

100

200

300

400

500

600

FREQUENCY (MHz)

MID GAIN (5dB)

MAX GAIN (20dB)

TA = –40°C

TA = +25°C

TA = +85°C

MIN GAIN (–11.5dB)

Figure 10. Noise Figure vs. Frequency at Max, Mid, and Min Gain Outputs

FREQUENCY (MHz)

100

150

200

250

300

350

400

TA = –40°C

TA = +25°C

TA = +85°C

Figure 11. OP1dB vs. Frequency at Maximum Gain, Three Temperatures
