ADRF6704
Data Sheet
Rev. 0 | Page 10 of 36
TYPICAL PERFORMANCE CHARACTERISTICS
VS = 5 V; TA = 25°C; baseband I/Q amplitude = 1 V p-p differential sine waves in quadrature with a 500 mV dc bias; baseband I/Q
frequency (fBB) = 1 MHz; fPFD = 38.4 MHz; fREF = 153.6 MHz at +4 dBm Re:50 Ω (1 V p-p); 130 kHz loop filter, unless otherwise noted.
0
1
2
3
4
5
6
7
8
9
10
2500
2550
2600
2650
2700
2750
2800
2850
2900
LO FREQUENCY (MHz)
–40°C
+25°C
+85°C

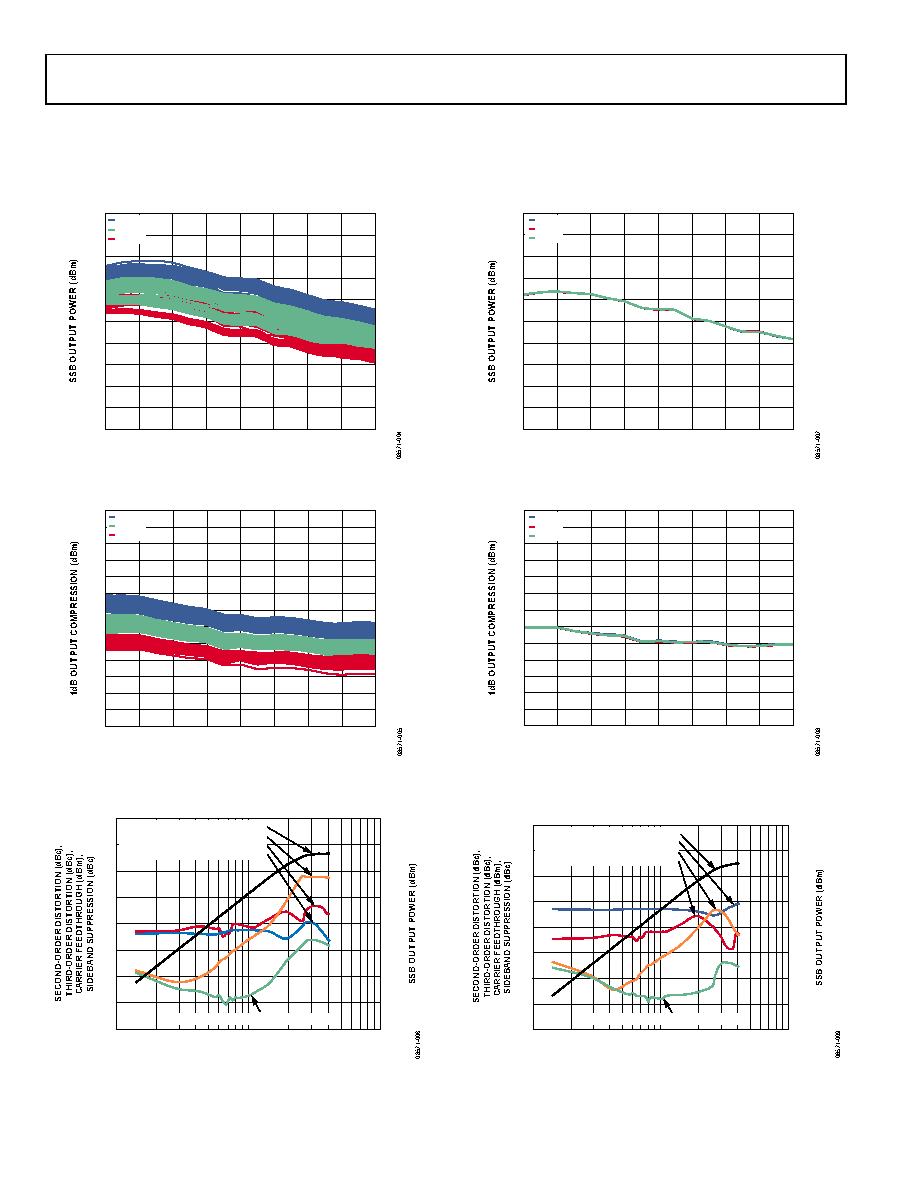

Figure 4. Single Sideband (SSB) Output Power (POUT) vs.
LO Frequency (fLO) and Temperature; Multiple Devices Shown
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2500
2550
2600
2650
2700
2750
2800
2850
2900
LO FREQUENCY (MHz)
–40°C
+25°C
+85°C
Figure 5. SSB Output 1dB Compression Point (OP1dB) vs. LO Frequency (fLO)
and Temperature; Multiple Devices Shown
–20
–15
–10
10
15
20
–80
–70
–60
–50
–40
–30
–20
–10
0
0.1
1
10
SECOND-ORDER DISTORTION (dBc)
BASEBAND INPUT VOLTAGE (Vp-p Differential)
–5
0
5
SSB OUTPUT POWER (dBm)
THIRD-ORDER DISTORTION (dBc)
CARRIER FEEDTHROUGH (dBm)
SIDEBAND SUPRESSION (dBc)
Figure 6. SSB Output Power, Second- and Third-Order Distortion, Carrier
Feedthrough, and Sideband Suppression vs. Baseband Differential Input
Voltage (fOUT = 2500 MHz)
0
1
2
3
4
5
6
7
8
9
10
2500
2550
2600
2650
2700
2750
2800
2850
2900
LO FREQUENCY (MHz)
4.75V
5.25V
5V
Figure 7. Single Sideband (SSB) Output Power (POUT) vs.
LO Frequency (fLO) and Power Supply; Multiple Devices Shown
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2500
2550
2600
2650
2700
2750
2800
2850
2900
LO FREQUENCY (MHz)
4.75V
5.25V
5V
Figure 8. SSB Output 1dB Compression Point (OP1dB) vs. LO Frequency (fLO)
and Power Supply
–20
–15
–10
10
15
20
–80
–70
–60
–50
–40
–30
–20
–10
0
0.1
1
10
SECOND-ORDER DISTORTION (dBc)
BASEBAND INPUT VOLTAGE (Vp-p Differential)
–5
0
5
SSB OUTPUT POWER (dBm)
SIDEBAND SUPRESSION (dBc)
THIRD-ORDER DISTORTION (dBc)
CARRIER FEEDTHROUGH (dBm)
Figure 9. SSB Output Power, Second- and Third-Order Distortion, Carrier
Feedthrough, and Sideband Suppression vs. Baseband Differential Input
Voltage (fOUT = 2900 MHz)
