TYPICAL PERFORMANCE CHARACTERISTICS

100

0.1

0.01

0.001

0.1

100

OUTPUT POWER PER CHANNEL (mW)

IN PHASE

OUT OF PHASE

100

0.1

0.01

0.001

0.1

100

OUTPUT POWER PER CHANNEL (mW)

IN PHASE

OUT OF PHASE

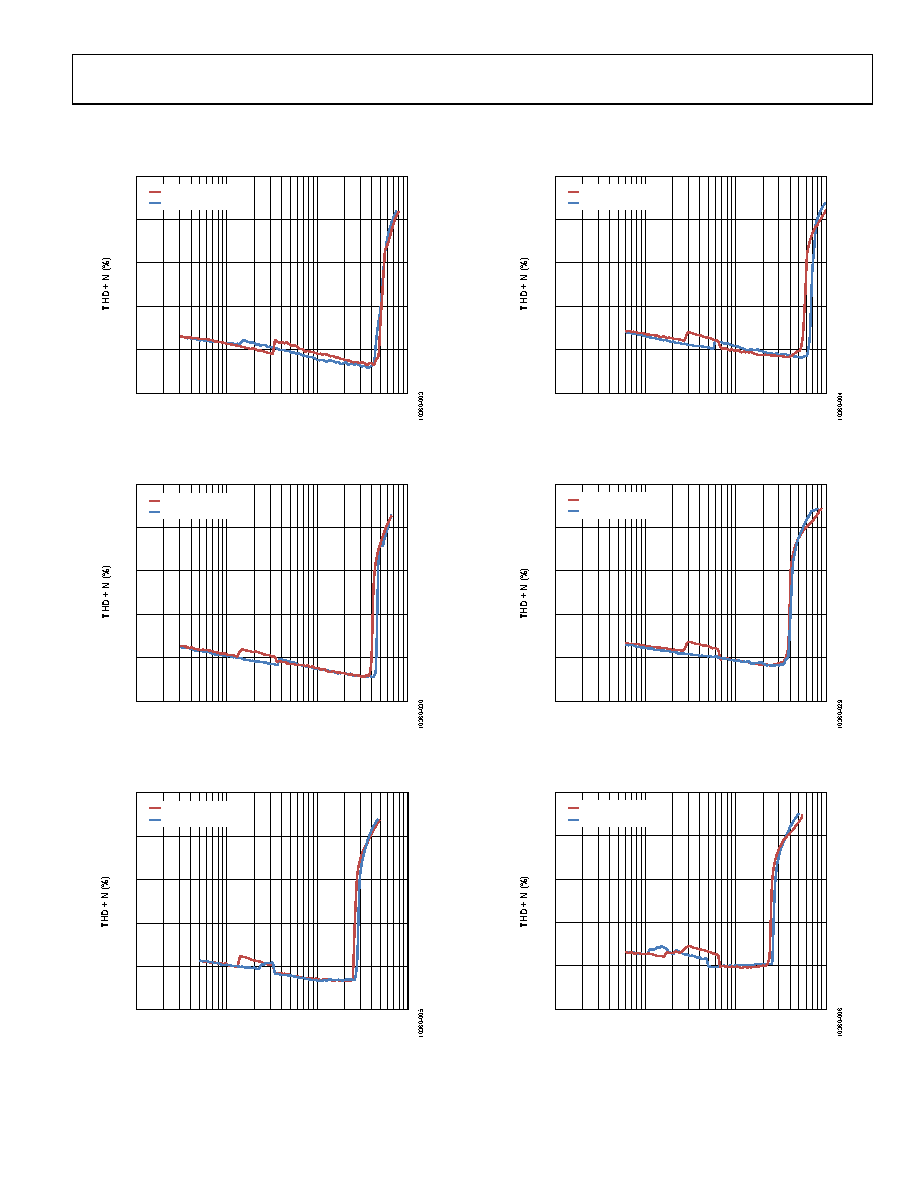

Figure 3. THD + N vs. Output Power, PVDD = 3.6 V, RL = 32 Ω

Figure 6. THD + N vs. Output Power, PVDD = 3.6 V, RL = 16 Ω

100

0.1

0.01

0.001

0.1

100

OUTPUT POWER PER CHANNEL (mW)

IN PHASE

OUT OF PHASE

100

0.1

0.01

0.001

0.1

100

OUTPUT POWER PER CHANNEL (mW)

IN PHASE

OUT OF PHASE

Figure 4. THD + N vs. Output Power, PVDD = 3.0 V, RL = 32 Ω

Figure 7. THD + N vs. Output Power, PVDD = 3.0 V, RL = 16 Ω

100

0.1

0.01

0.001

0.1

100

OUTPUT POWER PER CHANNEL (mW)

IN PHASE

OUT OF PHASE

100

0.1

0.01

0.001

0.1

100

OUTPUT POWER PER CHANNEL (mW)

IN PHASE

OUT OF PHASE

Figure 5. THD + N vs. Output Power, PVDD = 2.5 V, RL = 32 Ω

Figure 8. THD + N vs. Output Power, PVDD = 2.5 V, RL = 16 Ω
