Data Sheet
SSM3302
Rev. 0 | Page 13 of 20
0
–20
–10
–90
–80
–70
–60
–50
–40
–30
10
10k
1k
100
100k
FREQUENCY (Hz)

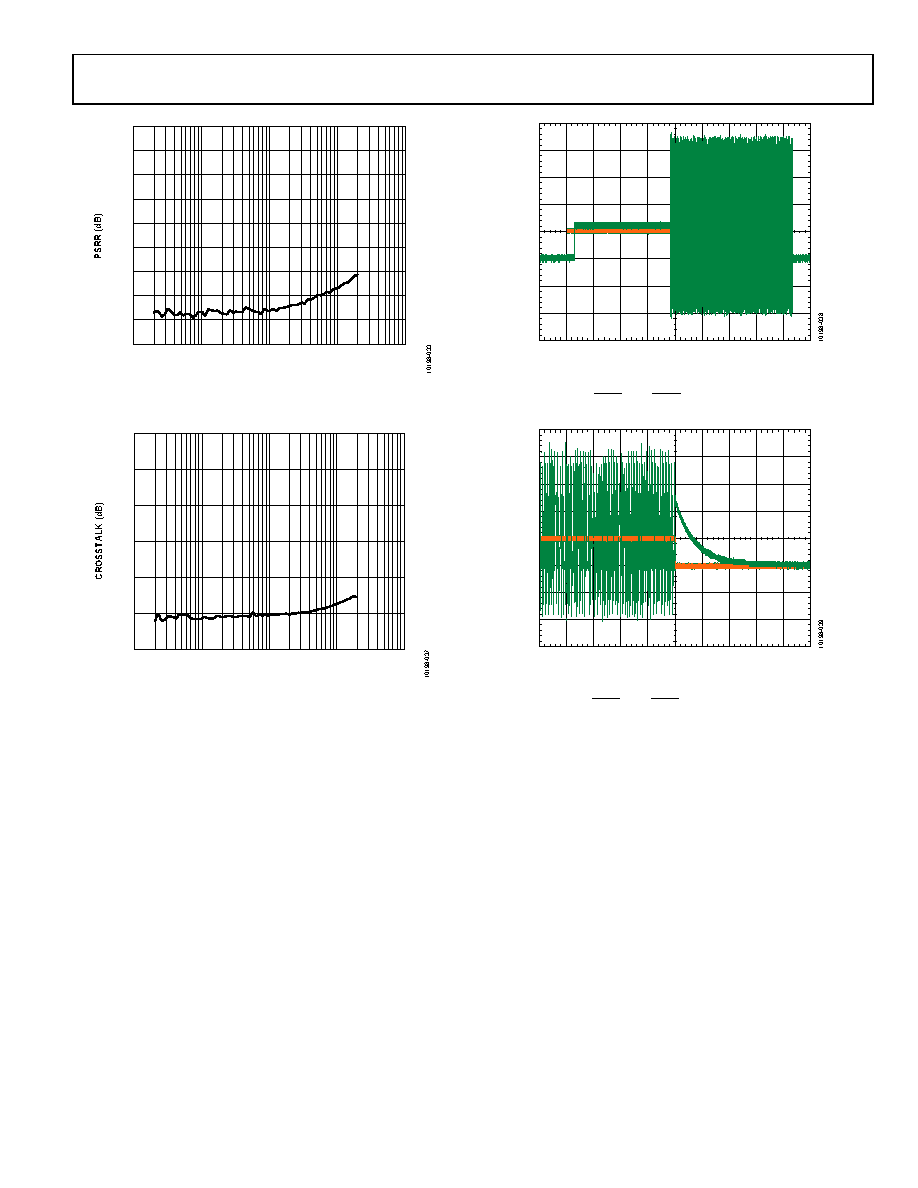

Figure 33. PSRR vs. Frequency, VRIPPLE = 100 mV rms
0
–20
–120
–100
–80
–60
–40
10
10k
1k
100
100k
FREQUENCY (Hz)
VDD = 5V
VA = 5V
VB = 0V
Figure 35. Turn-On Response
(Showing SDNL Pin or SDNR Pin Rising Edge and Output)
Figure 36. Turn-Off Response
(Showing SDNL Pin or SDNR Pin Falling Edge and Output)
Figure 34. Crosstalk vs. Frequency,
PO = 0.5 W, RL = 8 Ω
