AD8274
Rev. C | Page 14 of 16
DRIVING CABLING
Because the AD8274 can drive large voltages at high output
currents and slew rates, it makes an excellent cable driver. It is
good practice to put a small value resistor between the AD8274
output and cable, since capacitance in the cable can cause peaking
or instability in the output response. A resistance of 20 Ω or higher
is recommended.
AD8274
R ≥ 20Ω

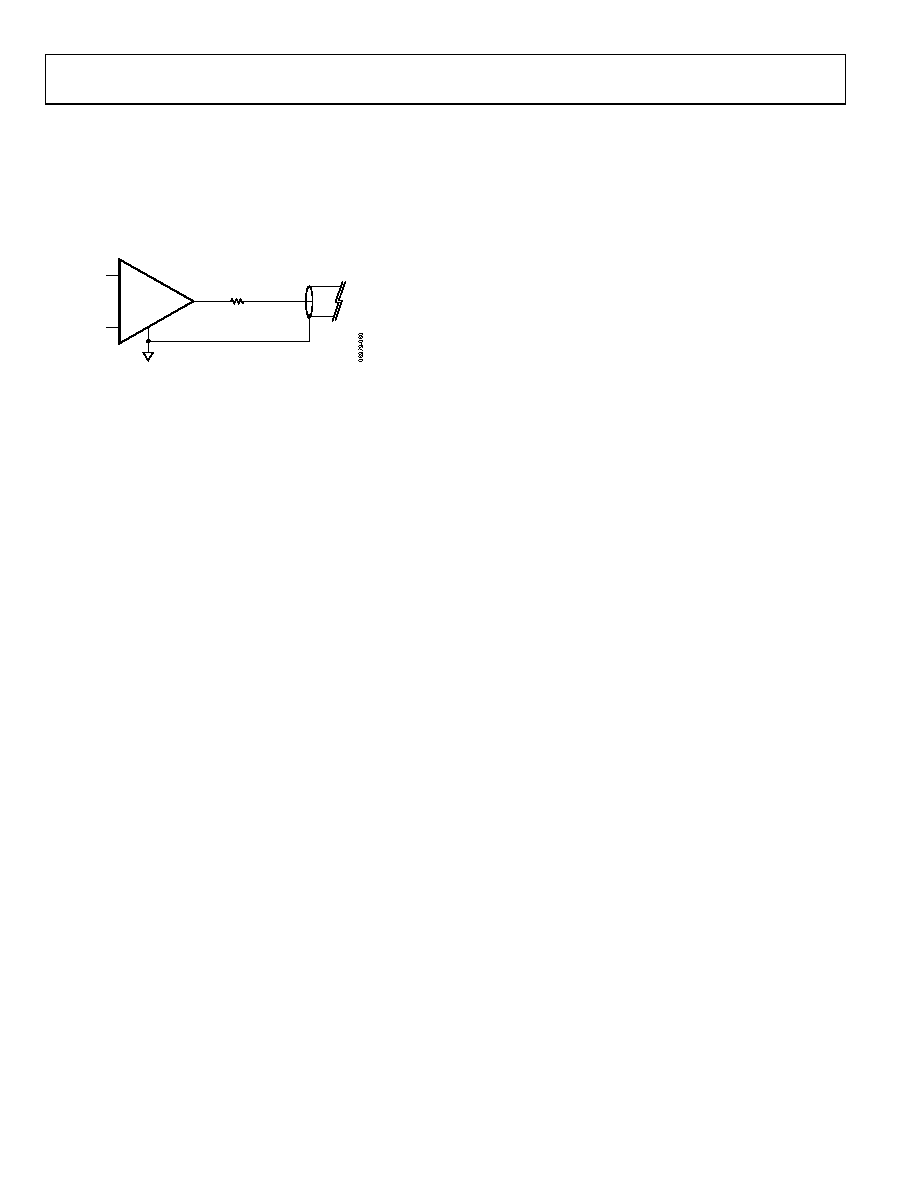

Figure 48. Driving Cabling
