BL7430EC 104-bit EEPROM Smart

Counter Circuit

http://www.belling.com.cn

- 2 -

8/16/2006

Total 4 Pages

BL7430EC circuits consists of 104 bits EEPROM. The whole storing area is divided into three

areas according to different usage.

•

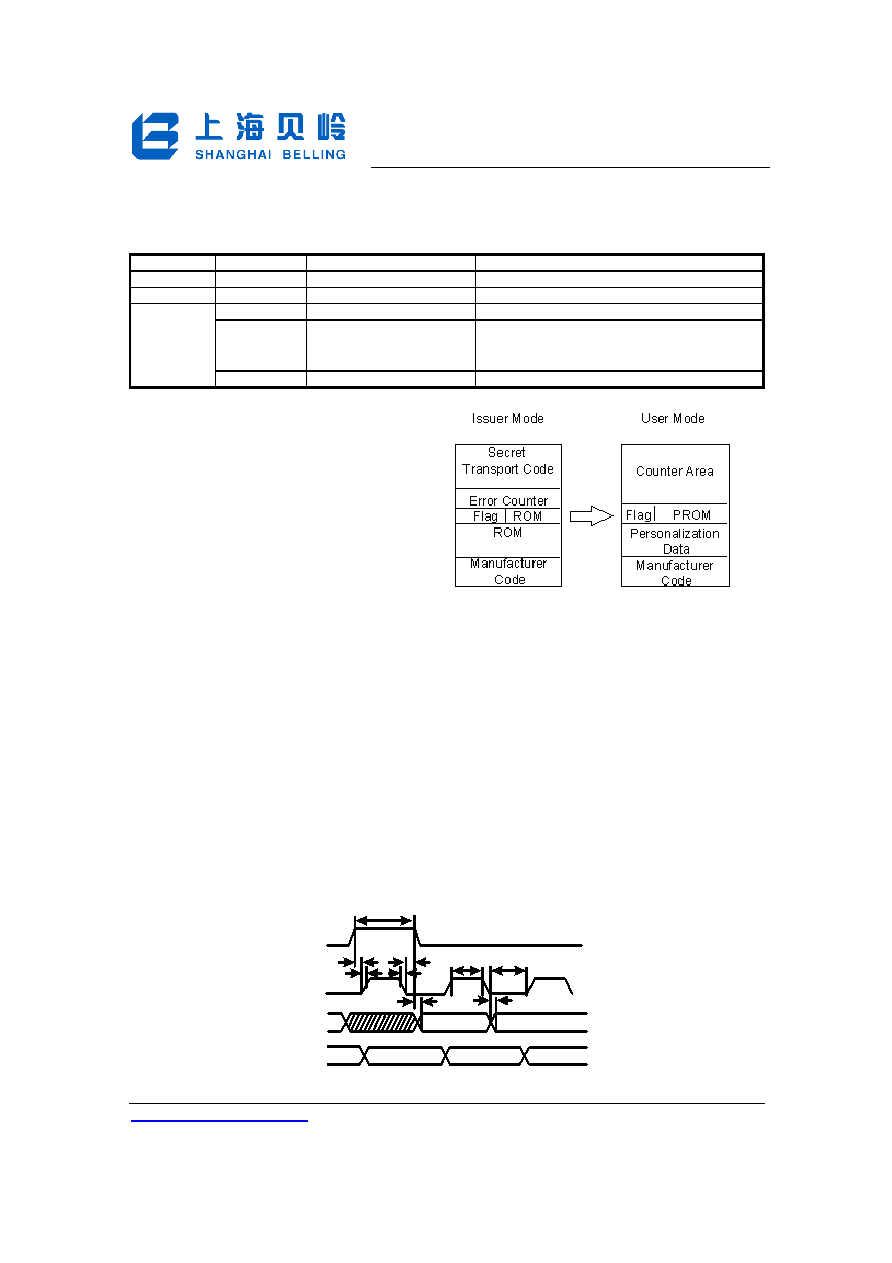

Organization of Memory

Pin No.

Address

Memory Type

Function

1

0~15

ROM

Manufacturer code

2

16~63

PROM

Card Data

64

PROM

Control flag

65~71

PROM

Uppermost non-erasable counter stage; up to

3 bits(69~71) already canedled by testing

upon delivery

3

72~103

EEPROM

Count range

Mentioned above is the user mode after card

being personalized. When chips are transferred

to card-manufacturer, they are in issue mode,

after being personalized, then changed to user

mode. The differences between issue mode

and user mode are presented on the right

figure.

Counting Method

The counting area consists of 36 bits EEPROM. The structure of counter is 5-stage with 8 bits ,

each stage like an abcus, but the highest stage has only 4 bits, the counting scope is 20480,while

counting, the first stage is erased after writing any bit of the second counting stage, all do like

this, then the fourth counting stage is erased after writing any bit of the fifth stage. But the fifth

counting stage can be erased, so the contents of counting cells are continuously reduced to zero.

In one counting stage, if the writable numbers more than the number which should be written, this

can be operated without any problem. If the writable number is less than the number should be

written, we can do like this: first write each writable number of this stage, then we write on bit of

higher stage and erase 8 bits of current stage. Thus we can write the remaining number in current

stage.

• Reading/Writing operation

Reading operation

Internal address-counter works following bit clock, at the clock rising edge and RST is low ,the

address-counter add 1 after the clock falling edge, the content of the relative address is output to

I/O port. Both CLK and RST are high , the address-counter is reset to 0.

Add

A0

A1

A2

DO0

DO1

IO

CLK

RST

t

R

t

H

t

L

t

r

t

f

t

d1

t

d2

t

d3

t

d4

Setting Address and Readout
