[Type text]

CLM10D-050(A) Characteristics

WWW.PHIHONG.COM

Input:

AC Input Voltage Range

10 to 30V DC (12 Volts Nominal)

Input Current

≤30mA at no load (12V Input)

≤1.40A at no load (10V Input)

≤1.44A at no load (30V Input)

Output:

Output Power

10W

Efficiency

80% minimum at maximum load and 12V

Rise time:

<50mSec.

Input Over-Voltage

Fuse will blow with no damage to unit

Output Over-Voltage

By Zener clamping

Reverse Polarity Protection

Fuse will blow with no damage to unit

Short-Circuit Protection

Current limiting without damage to unit

Environmental:

Temperature

Operation

-20 to 60°C

Non-operation

-40 to 85°C

Operating Humidity

0 to 95%

MTBF

100K Hours Minimum at full load and ambient 25°C

DC Output Connector

2.1mm x 5.5mm x 9mm Center Positive Barrel

DC Cord

1.61 Meters (extended)

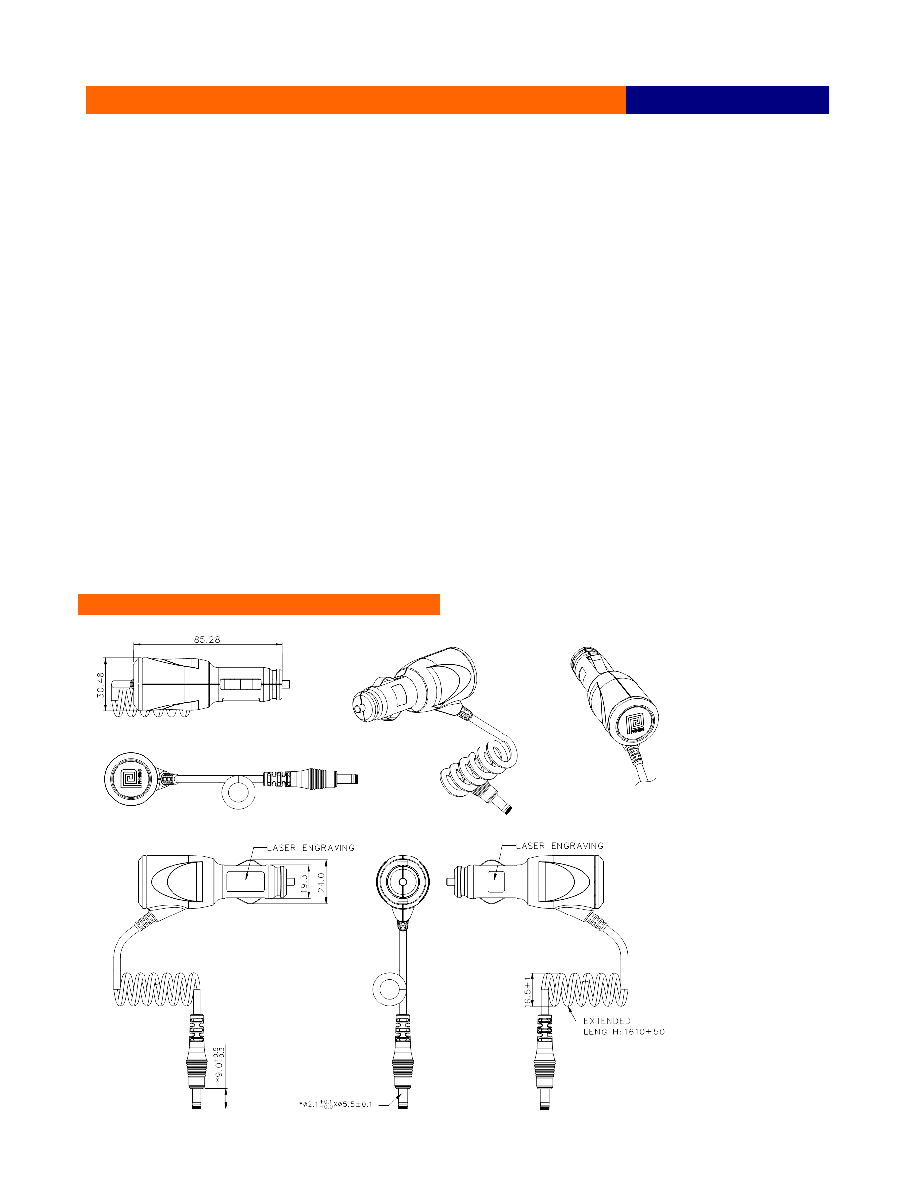

Dimension Diagram Unit: mm
