Preliminary Data Sheet
September 2001
High-Voltage Ringing SLIC for VoIP Applications
L9500A
Agere Systems Inc.
19
Test Configurations

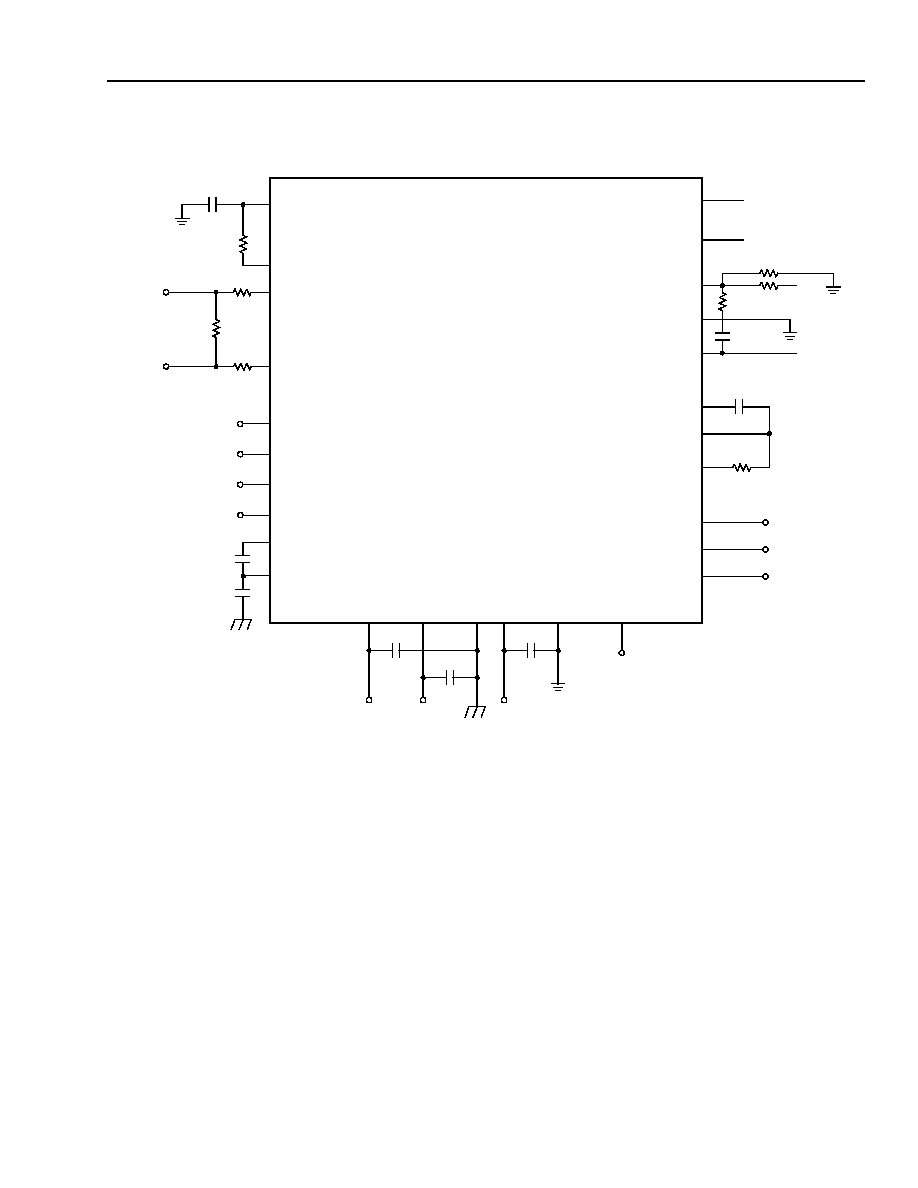

Figure 4. Basic Test Circuit
VBAT2
VBAT1
BGND VCC
AGND
0.1
µF
0.1
µF
0.1
µF
RTFLT
DCOUT
PR
PT
VPROG
VREF
0.1
µF
383 k
Ω
30
Ω
30
Ω
CF1
CF2
B0
B1
B2
0.1
µF
RINGINN
RINGINP
VITR
RCVP
RCVN
ITR
VTX
TXI
VBAT2
VBAT1
VCC
RLOOP
100
Ω/600 Ω
TIP
RING
FB2
FB1
0.1
µF
L9500
NSTAT
B0
B1
B2
4750
Ω
0.1
µF
VITR
RCV
RINGIN
RINGIN
60.4 k
Ω
0.1
µF
26.7 k
Ω
69.8 k
Ω
RCV
BASIC
TEST
CIRCUIT
