ADP196
Data Sheet
Rev. 0 | Page 6 of 12

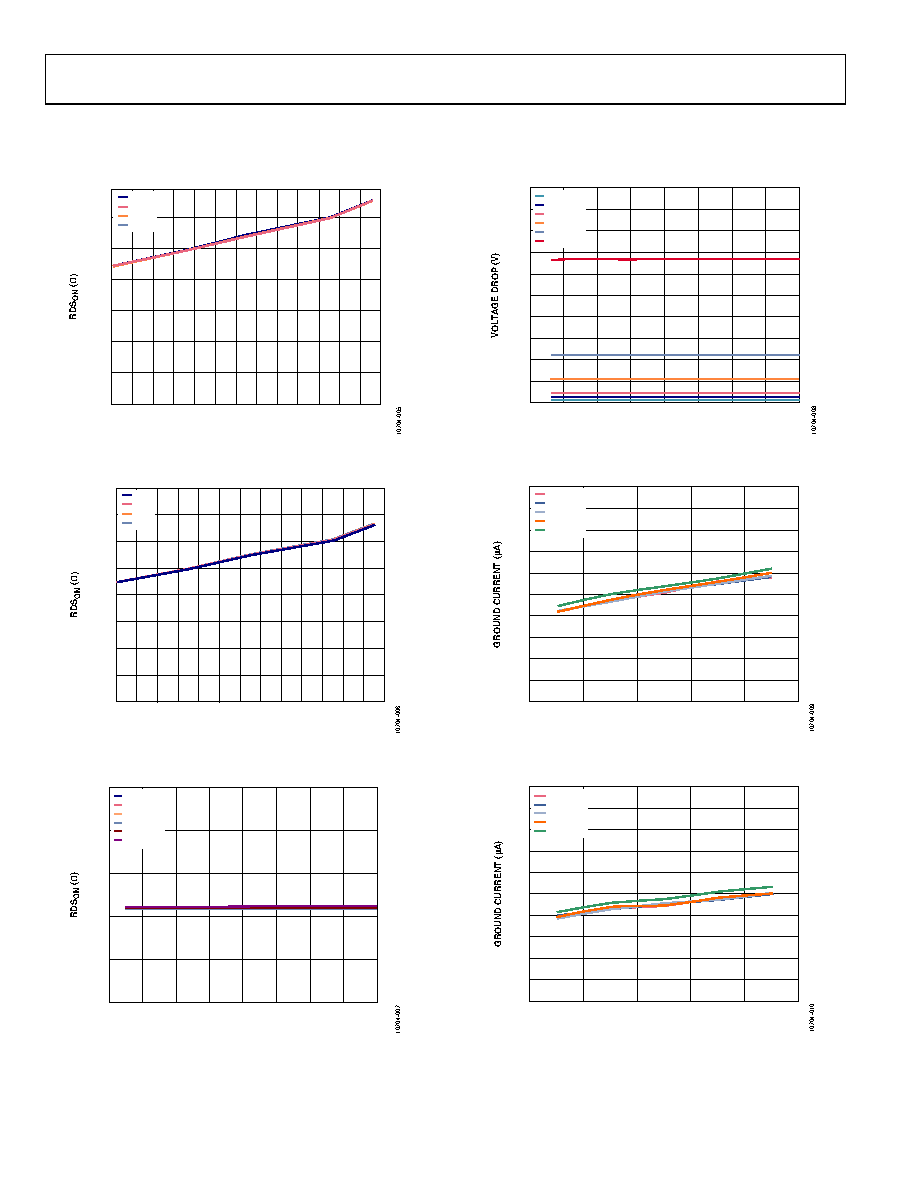

TYPICAL PERFORMANCE CHARACTERISTICS
VIN = 1.8 V, VEN = VIN, CIN = COUT = 1 µF, TA = 25°C, unless otherwise noted.
0.014
0.012
0.010
0.008
0.006
0.004
0.002
0
–40 –30 –20 –10
0
10
20
30
40
50
60
70
80
90
TEMPERATURE (°C)
0.2V
1.0V
3.0V
5.5V
Figure 5. RDSON vs. Temperature, IOUT = 50 mA, Different Input Voltages (VIN)
0.016
0.014
0.012
0.010
0.008
0.006
0.004
0.002
0
–40 –30 –20 –10
0
10
20
30
40
50
60
70
80
90
TEMPERATURE (°C)
0.2V
1.0V
3.0V
5.5V
Figure 6. RDSON vs. Temperature, IOUT = 3 A, Different Input Voltages (VIN)
0
0.005
0.010
0.015
0.020
0.025
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
VIN (V)
50mA
100mA
200mA
500mA
1000mA
3000mA
Figure 7. RDSON vs. Input Voltage (VIN), Different Load Currents
0
0.005
0.010
0.015
0.020
0.025
0.030
0.035
0.040
0.045
0.050
VIN (V)
50mA
100mA
200mA
500mA
1000mA
3000mA
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Figure 8. Voltage Drop vs. Input Voltage (VIN), Different Load Currents
0
5
10
15
20
25
30
35
40
45
50
–40
–5
25
55
85
TEMPERATURE (°C)
100mA
200mA
500mA
1000mA
3000mA
Figure 9. Ground Current vs. Temperature, Different Load Currents,
VIN = 1.8 V
0
5
10
15
20
25
30
35
40
45
50
–40
–5
25
55
85
TEMPERATURE (°C)
100mA
200mA
500mA
1000mA
3000mA
Figure 10. Ground Current vs. Temperature, Different Load Currents,
VIN = 3.3 V
