Ramp/Soak Process Controller

E5CK--T

A--185

Installation

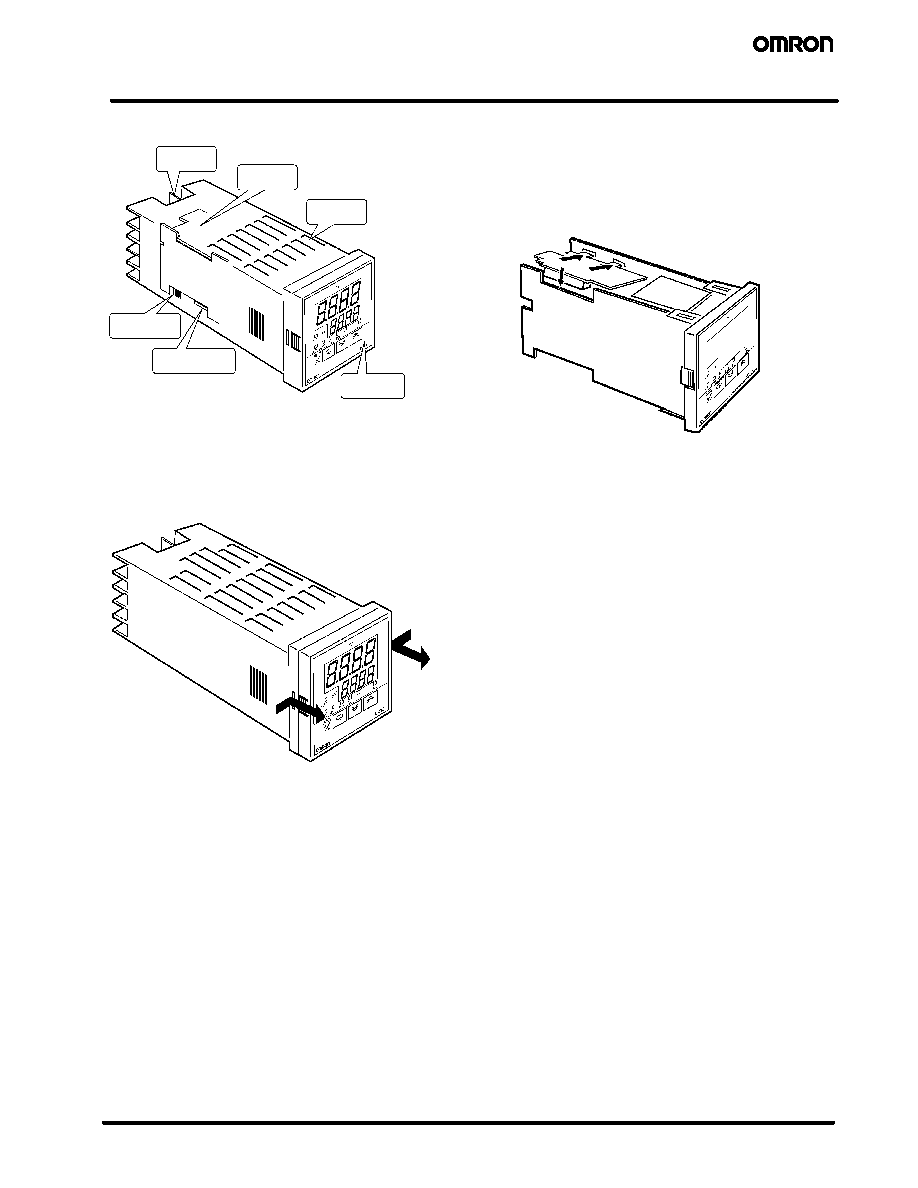

J Main Parts

Terminals

Output Board

Housing

Front panel

Option Board

Input type

connector

J Removing Internal

Mechanism

While pressing the hooks on the left and right sides of the front

panel, carefully pull the internal mechanism from the housing.

(Refer to the drawing below.)

J Setting Up the Output Board

1.

Two rectangular holes are provided on the power board (right

side of Controller). Fit the two protrusions of the output board

into these two holes.

2.

With the output board fitted into the power board, fit the out-

put board into the connector on the control board (left side of

Controller).

1

2
