TC7109/A

6.3

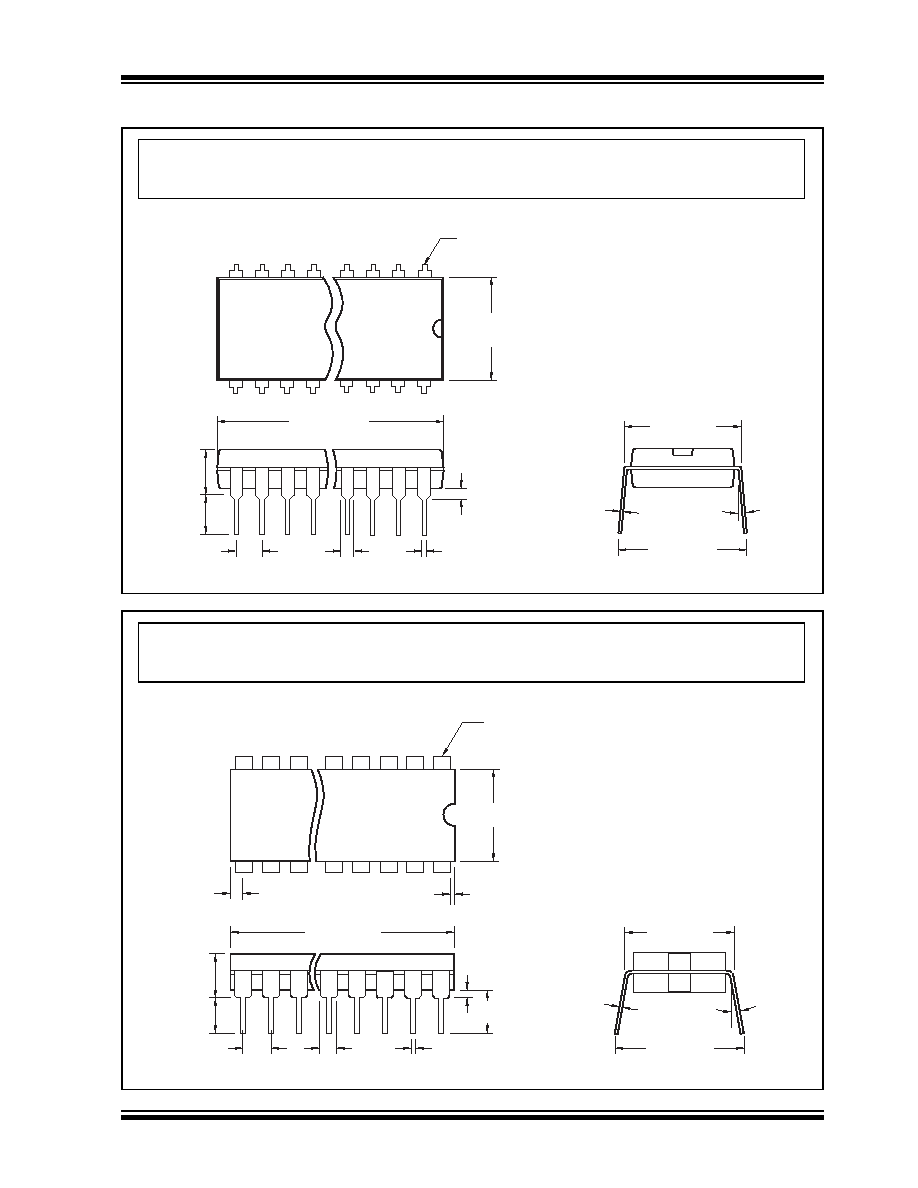

Package Dimensions

Dimensions: inches (mm)

2.065 (52.45)

2.027 (51.49)

.200 (5.08)

.140 (3.56)

.150 (3.81)

.115 (2.92)

.070 (1.78)

.045 (1.14)

.022 (0.56)

.015 (0.38)

.110 (2.79)

.090 (2.29)

.555 (14.10)

.530 (13.46)

.610 (15.49)

.590 (14.99)

.015 (0.38)

.008 (0.20)

.700 (17.78)

.610 (15.50)

.040 (1.02)

.020 (0.51)

40-Pin PDIP (Wide)

Pin1

3° Min.

Note:

For the most current package drawings, please see the Microchip Packaging Specification located

at http://www.microchip.com/packaging

Dimensions: inches (mm)

.015 (0.38)

.008 (0.20)

.620 (15.75)

.590 (15.00)

.700 (17.78)

.620 (15.75)

.540 (13.72)

.510 (12.95)

2.070 (52.58)

2.030 (51.56)

.210 (5.33)

.170 (4.32)

.020 (0.51)

.016 (0.41)

.110 (2.79)

.090 (2.29)

.065 (1.65)

.045 (1.14)

.200 (5.08)

.125 (3.18)

.098 (2.49) Max.

.030 (0.76) Min.

.060 (1.52)

.020 (0.51)

.150 (3.81)

MIN.

40-Pin CERDIP (Wide)

Pin 1

3° Min.

Note:

For the most current package drawings, please see the Microchip Packaging Specification located

at http://www.microchip.com/packaging
