Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Units

Supply Voltage, VDD to Ground[1]

–0.5

7.0

Input Voltage, Any Pin to Ground

–0.5

+0.5

V to VDD

Free Air Operating Temperature Range

–40

+85

°C

Storage Temperature

–40

+100

°C

CMOS IC Junction Temperature

+150

°C

Relative Humidity (Noncondensing) at +65°C

85%

Soldering Temperature, [1.59 mm (0.063 in.) Below Body]

Solder Dipping

260°C for 5 secs

Wave Soldering

250°C for 3 secs

ESD Classification, R = 1.5 k

, C = 100 pF

Class 1 (0 – 1999 V)

Note:

1. Maximum Voltage is with no LEDs illuminated.

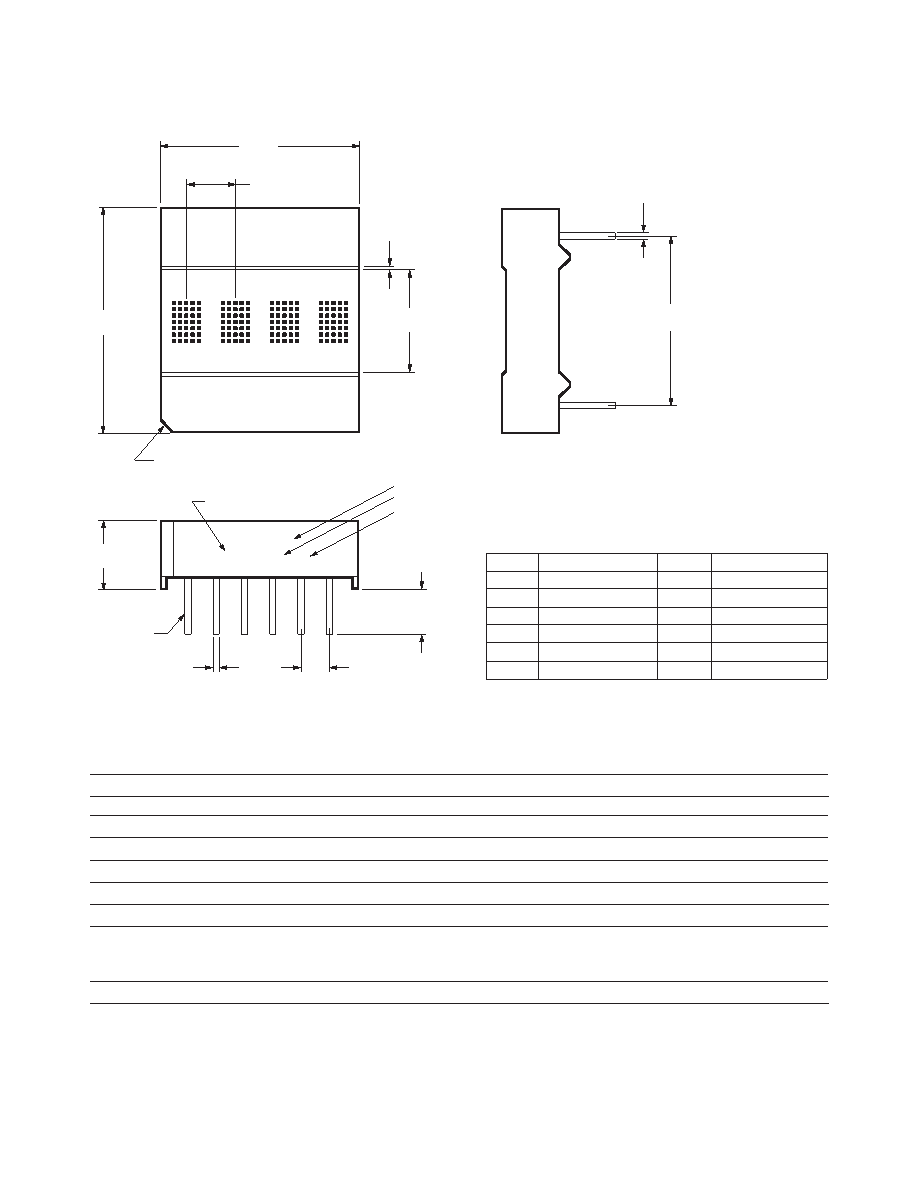

Package Dimensions

17.66

(0.695)

4.45

(0.175)

20.12

(0.792)

9.14

(0.360)

0.51 ± 0.13

(0.020 ± 0.005) TYP.

6.10

(0.240)

2.54

(0.100)

TYP.

15.30

(0.600)

0.25 ± 0.13

(0.010 ± 0.005)

TYP.

DIMENSIONS ARE IN MILLIMETERS (INCHES).

PIN 1 IDENTIFIER

4.10

(0.160)

HDLX-1414

YYWW

PART NUMBER

LUMINOUS INTENSITY

COLOR BIN [3]

DATE CODE (YEAR, WEEK)

0.39

(0.015)

TYP.

(2X)

PIN 1

TYP.

PIN NO.

FUNCTION

PIN NO.

FUNCTION

GROUND

D0 DATA INPUT

D1 DATA INPUT

D2 DATA INPUT

D3 DATA INPUT

D6 DATA INPUT

D5 DATA INPUT

D4 DATA INPUT

WR WRITE

A1 DIGIT SELECT

A0 DIGIT SELECT

VDD
