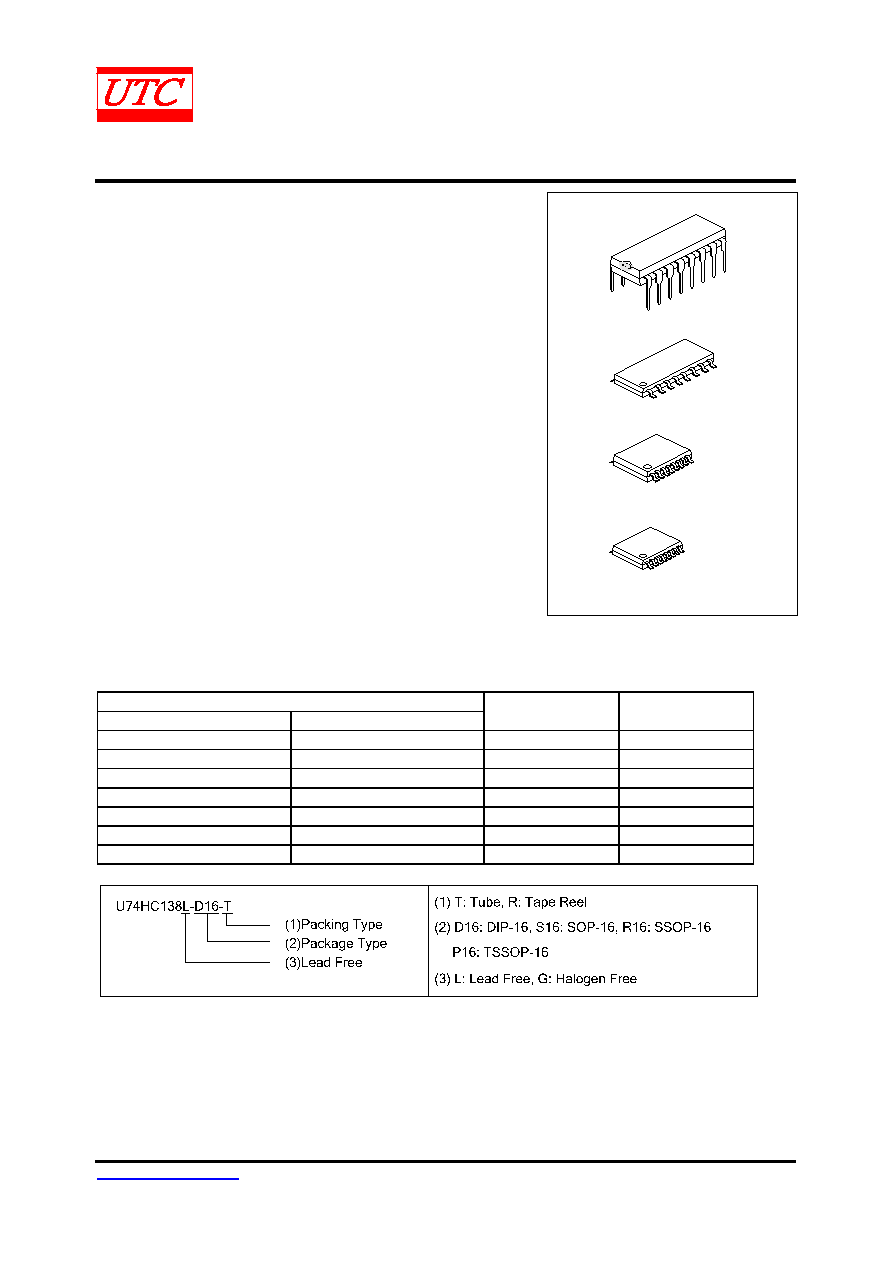

UNISONIC TECHNOLOGIES CO., LTD

U74HC138

CMOS IC

www.unisonic.com.tw

1 of 6

QW-R502-614.E

3-TO-8 LINE DECODERS /

DEMULTIPLEXERS



DESCRIPTION

The U74HC138 decodes a three-bit Address to 1-of-8 active-low

outputs.

This device features three Chip Select inputs, two active-low

and one active-high, to facilitate the demultiplexing, cascading,

and chip-selecting functions.

The demultiplexing function is accomplished by using the

address inputs to select the desired device output. One of the Chip

Selects is used as a data input while the other Chip Selects are

held in their active states.



FEATURES

* Operate from 2.0V ~ 6.0V

* Low Input Current: 100nA Max

* Low Quiescent Current: 8μA Max

* Typ tPD=15ns

* Output Drive:4mA @ 5V

SOP-16

DIP-16

TSSOP-16

SSOP-16



ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen Free

U74HC138L-D16-T

U74HC138G-D16-T

DIP-16

Tube

U74HC138L-S16-T

U74HC138G-S16-T

SOP-16

Tube

U74HC138L-S16-R

U74HC138G-S16-R

SOP-16

Tape Reel

U74HC138L-R16-T

U74HC138G-R16-T

SSOP-16

Tube

U74HC138L-R16-R

U74HC138G-R16-R

SSOP-16

Tape Reel

U74HC138L-P16-T

U74HC138G-P16-T

TSSOP-16

Tube

U74HC138L-P16-R

U74HC138G-P16-R

TSSOP-16

Tape Reel
