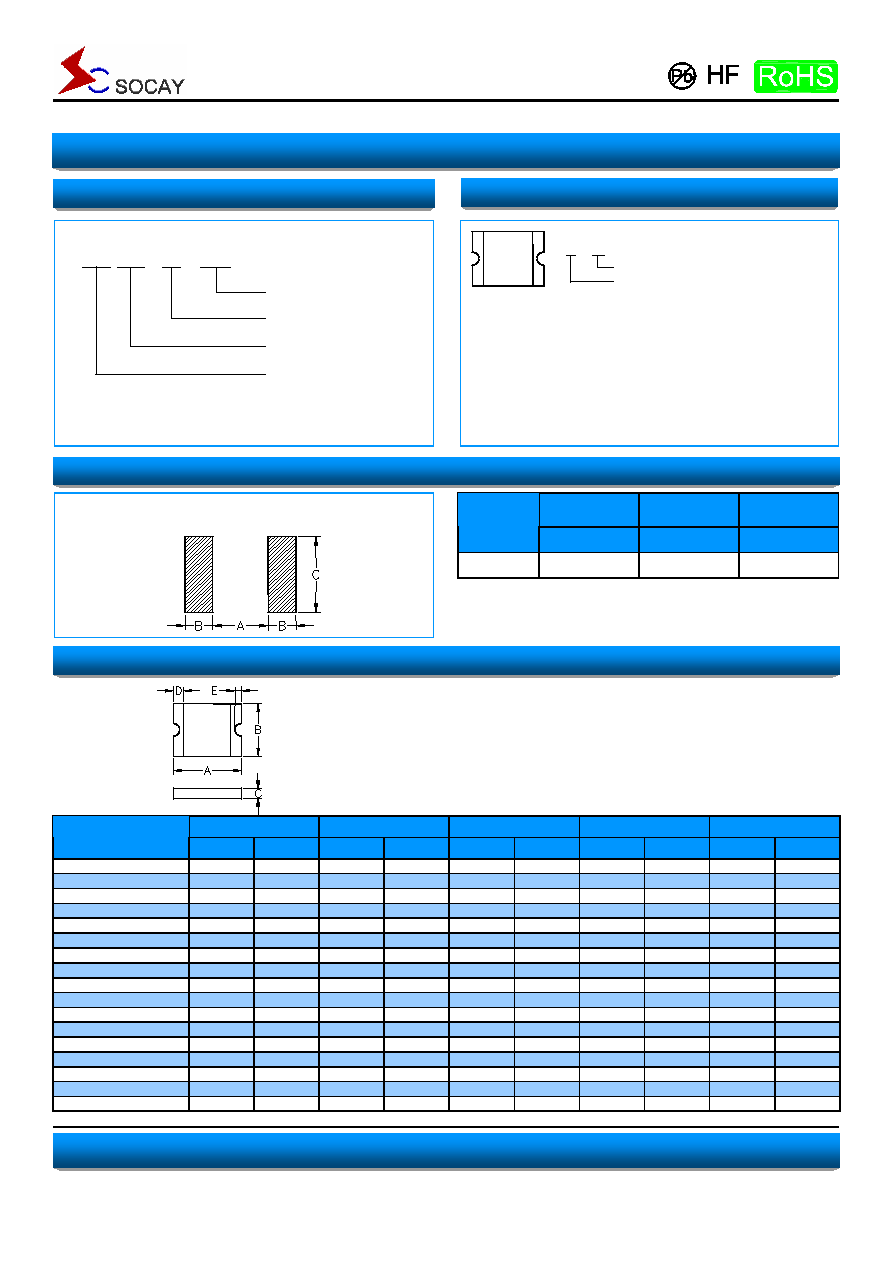

Surface Mount Resettable PTCs
Revision September 12, 2013
3 / 4
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
SCF1206 Series
SOCAY Electronics Co., Ltd.
www.socay.com
A
B
C
Device
Nominal
Nominal
Nominal
1206 Series
2.00
1.00
1.90
The dimension in the table below provide the recommended
pad layout for each SCF1206 device
A
B
C
D
E
Part Number
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
SCF005-1206-R
3.00
3.50
1.50
1.80
0.45
0.85
0.10
0.75
0.10
0.45
SCF010-1206-R
3.00
3.50
1.50
1.80
0.45
0.85
0.10
0.75
0.10
0.45
SCF012-1206-R
3.00
3.50
1.50
1.80
0.45
0.85
0.10
0.75
0.10
0.45
SCF016-1206-R
3.00
3.50
1.50
1.80
0.45
0.75
0.10
0.75
0.10
0.45
SCF020-1206-R
3.00
3.50
1.50
1.80
0.45
0.75
0.10
0.75
0.10
0.45
SCF025-1206-R
3.00
3.50
1.50
1.80
0.45
0.75
0.10
0.75
0.10
0.45
SCF025-24-1206-R
3.00
3.50
1.50
1.80
0.45
0.75
0.10
0.75
0.10
0.45
SCF035-1206-R
3.00
3.50
1.50
1.80
0.45
0.75
0.10
0.75
0.10
0.45
SCF035-30-1206R
3.00
3.50
1.50
1.80
0.90
1.30
0.10
0.75
0.10
0.45
SCF050-1206-R
3.00
3.50
1.50
1.80
0.25
0.55
0.10
0.75
0.10
0.45
SCF050-24-1206R
3.00
3.50
1.50
1.80
0.90
1.30
0.10
0.75
0.10
0.45
SCF075-1206R
3.00
3.50
1.50
1.80
0.45
1.25
0.10
0.75
0.10
0.45
SCF075-16-1206R
3.00
3.50
1.50
1.80
0.45
1.25
0.10
0.75
0.10
0.45
SCF100-1206R
3.00
3.50
1.50
1.80
0.45
1.00
0.10
0.75
0.10
0.45
SCF110-1206R
3.00
3.50
1.50
1.80
0.45
1.00
0.10
0.75
0.10
0.45
SCF150-1206R
3.00
3.50
1.50
1.80
0.80
1.40
0.10
0.75
0.10
0.45
SCF200-1206R
3.00
3.50
1.50
1.80
0.85
1.60
0.10
0.75
0.10
0.45
Dimensions
Unit: mm
Part Numbering
Part Marking
Pad Layouts
Unit: mm
SCF XXX
– XX – 1206 –R
Device Size Code
Voltage Rating
Current Rating
Socay Product Code
F
X
Part Identification
Logo
FA
Example
FZ= SCF005-1206-R
FA= SCF010-1206-R
FJ= SCF012-1206-R
FK= SCF016-1206-R
FB= SCF020-1206-R
FL= SCF025-1206-R
FP= SCF025-24-1206-R
FC= SCF035-1206-R
FM= SCF035-30-1206R
FD= SCF050-1206-R
FN= SCF050-24-1206R
FE= SCF075-1206R
FO= SCF075-16-1206R
FF= SCF100-1206R
FG= SCF110-1206R
FH= SCF150-1206R
FI= SCF200-1206R
