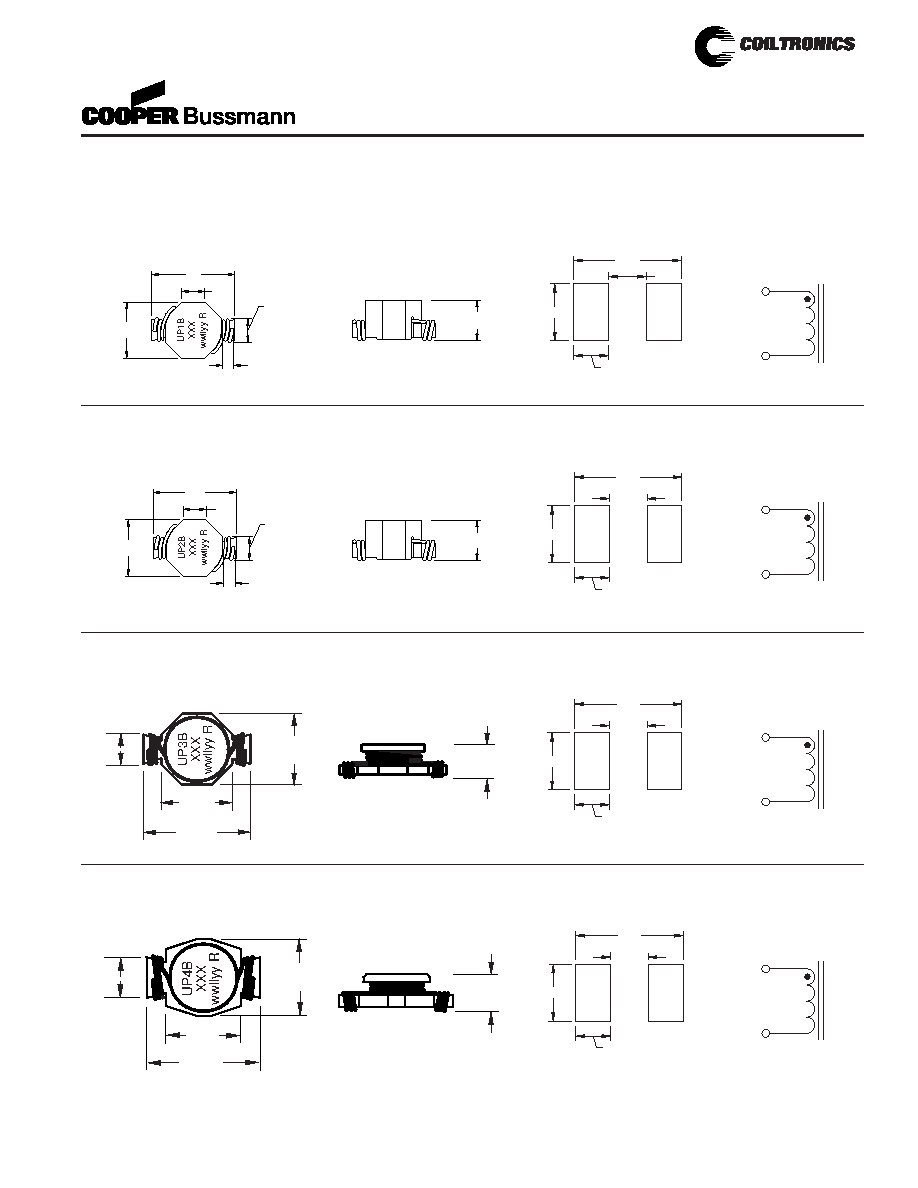

Mechanical Diagrams
UP1B Series
TOP VIEW
6.10
Max
8.89
Max
2.42
Ref
4.04
Max
0.762
Min
FRONT VIEW
5.0
Max
COMPONENT VIEW
PCB PAD LAYOUT
1.9
4.1
8.89
5.08
SCHEMATIC
1
2
UP2B Series
TOP VIEW
10.41
Max
13.97
Max
4.22
Ref
6.73
Max
0.762
Min
FRONT VIEW
6.0
Max
14.0
COMPONENT VIEW
PCB PAD LAYOUT
9.4
7.3
2.3
SCHEMATIC
1
2
UP3B Series
TOP VIEW
12.70
19.30
max
13.21
max
1
2
8.13
max
6.8
max
SIDE VIEW
19.3
COMPONENT VIEW
PCB PAD LAYOUT
11.7
8.7
3.8
SCHEMATIC
1
2
UP4B Series
22.10
max
TOP VIEW
15.00
max
14.61
1
2
11.18
max
SIDE VIEW
7.87
max
22.1
COMPONENT VIEW
PCB PAD LAYOUT
13.5
12.0
4.3
SCHEMATIC
1
2
Dimensions in Millimeters.
wwllyy = (date code) R = revision level
xxx = Inductance value per family chart
®
UNI-PAC™
Power Inductors
