EM260
Page 41
120-0260-000M Rev 1.1

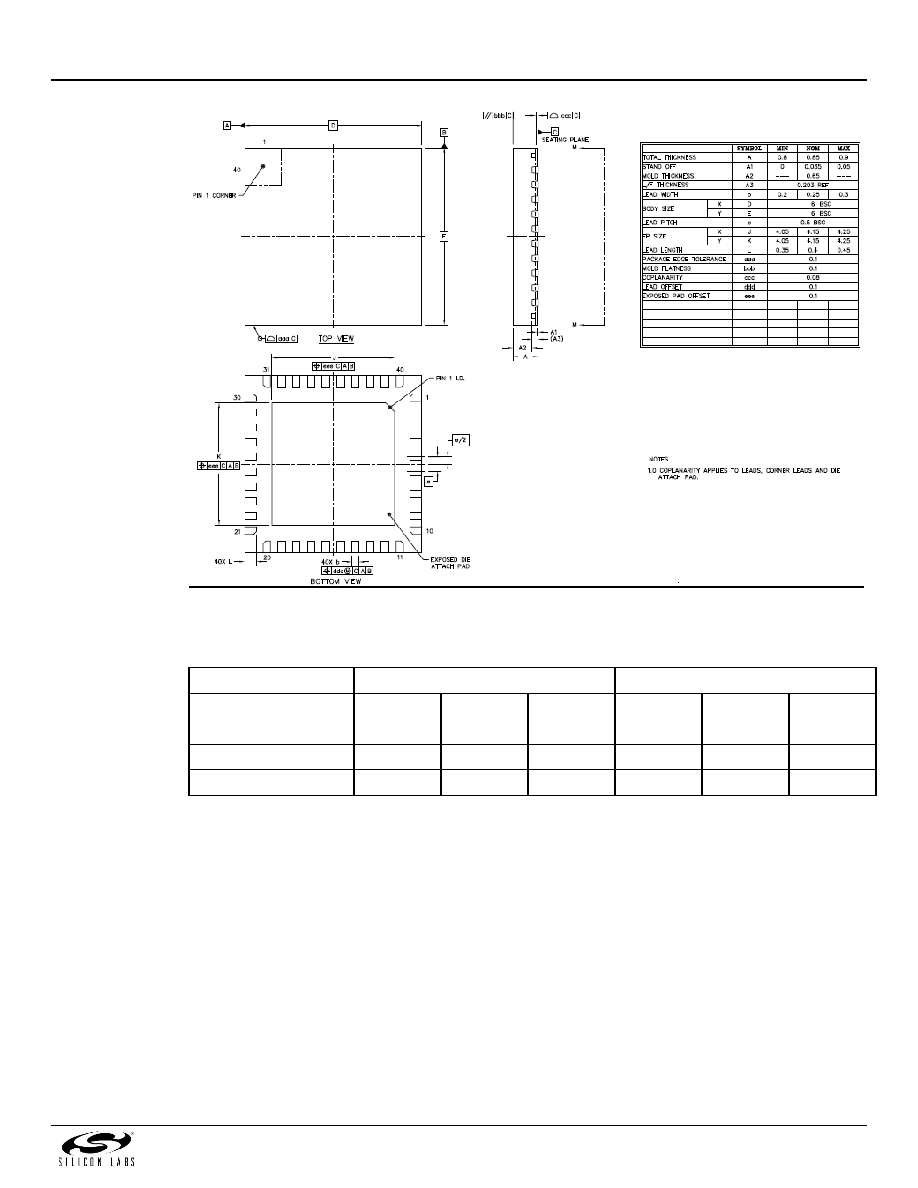

Figure 16. EM260 Taiwan (AESCL) Package Drawing
Table 18. Package Dimensions
Package type
SCM 40QFN 6x6
ASECL 40QFN 6x6
Dimensions
Minimum
(mm)
Maximum
(mm)
Nominal
(mm)
Minimum
(mm)
Maximum
(mm)
Nominal
(mm)
Package thickness
0.80
1.00
0.90
0.80
0.90
0.85
Lead Length
0.30
0.50
0.40
0.35
0.45
0.40
