Numer części	SMS-1508MS-2-R

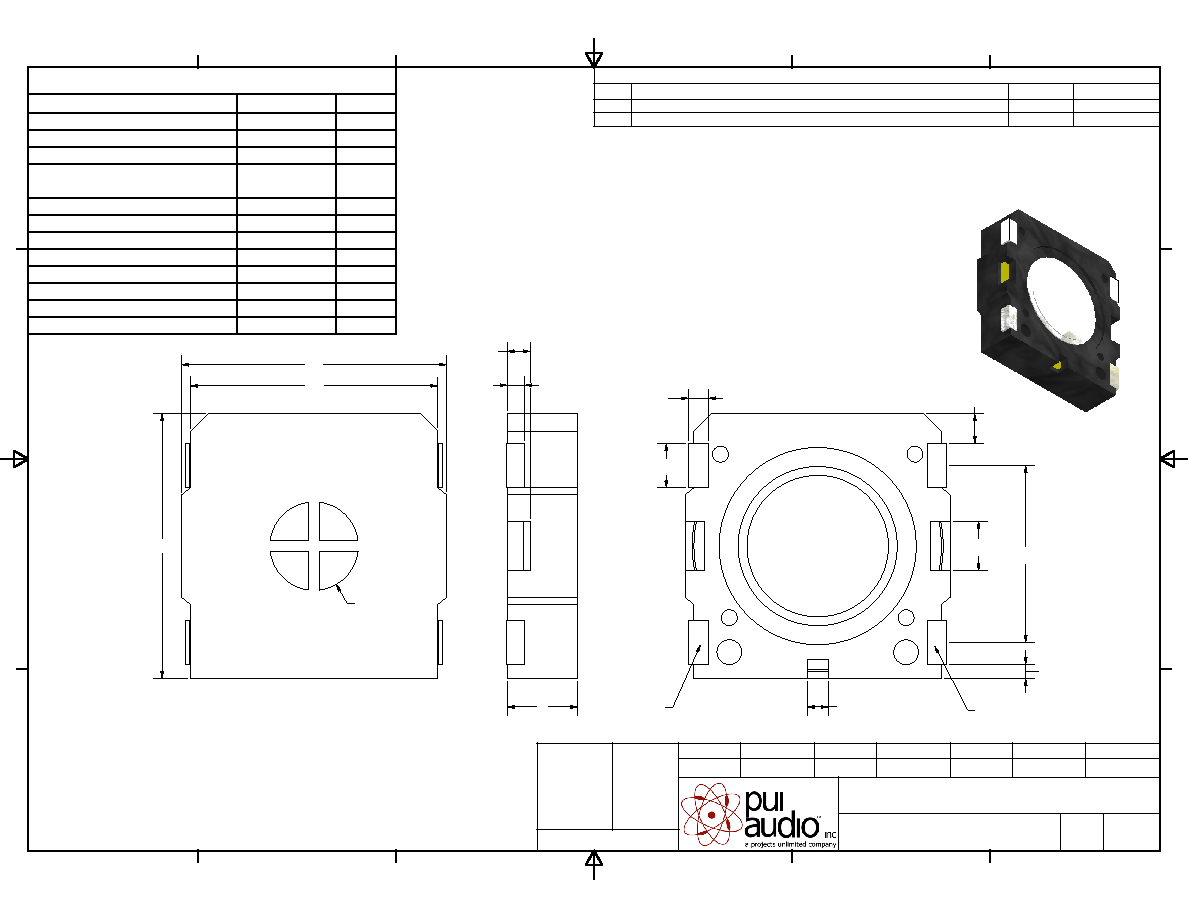

Szczegółowy opis	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	1 Pages

Scroll/Zoom	100%

Producent	PUI [Projects Unlimited, Inc.]

Strona internetowa	http://www.pui.com

Logo

1 / 1 page

Speaker

SMS-1508MS-2-R

J.D.

M.L.

B.R.

8/9/2011

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

8/9/2011

Date

8/10/2011

Date

8/10/2011

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

SMS-1508MS-2-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

8/9/2011

A

REVISED FREQUENCY RANGE

4/27/2012

B.R.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

14

15

5

1

1.3

2.5(4)

1.1(4)

2.8(2)

1.2

4

1.7(2)

0.8(2)

10(2)

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.5

W

MAX INPUT POWER

0.8

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 0.5W/0.1M

(AT 1.0, 1.6, 2.0, 3.2 kHz)

87 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

800 ± 20%

Hz

FREQUENCY RANGE

500 ~ 10,000

Hz

HOUSING MATERIAL

LCP

-

CONE MATERIAL

KAPTON

-

MAGNET MATERIAL

SmCo

-

OPERATING TEMPERATURE

-30 ~ +85

°C

WEIGHT

1.5

grams

LEAD (-)

LEAD (+)
