Cord:

4-mm dia., 18/0.12, 3-conductor

Standard length: 2 m

Weight: approx. 165 g

Note:

A mounting bracket can be attached to side A.

E3S-DS30E(B)4S(1)

Cord:

4.5-mm dia., 18/0.12, 4-conductor

Standard length: 2 m

Weight: approx. 155 g

E3S-R2E42

E3S-DS30E42

Cord:

4-mm dia., 18/0.12, 3-conductor

Standard length: 2 m

Weight: approx. 165 g

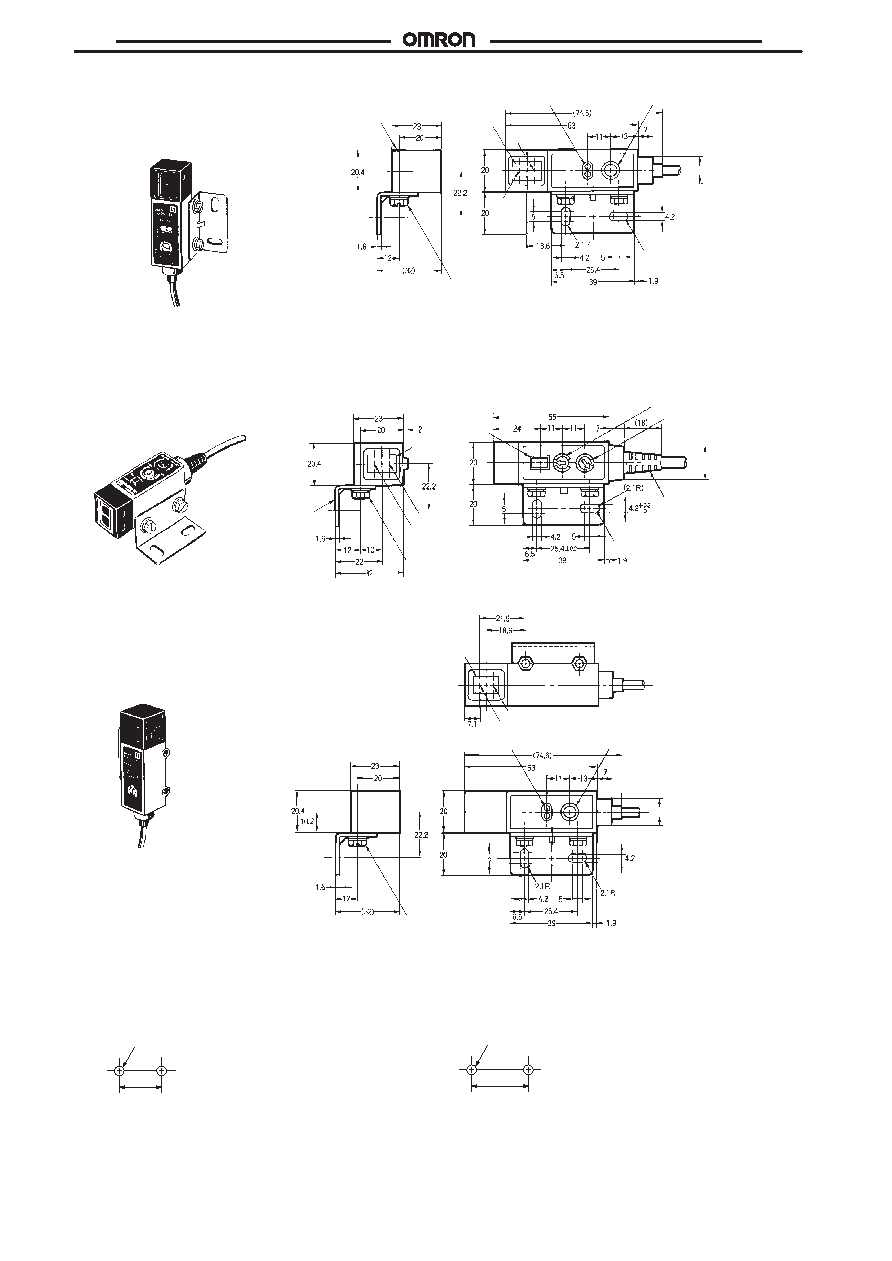

Mounting Holes

E3S-2LE(B)4, E3S-2DE(B)4

E3S-2LE(B)41, E3S-2DE(B)41

E3S-DS10E(B)4, E3S-DS10E(B)41

E3S-5LE(B)4(1), E3S-5DE(B)4(1), E3S-5E4S(1)

E3S-DS30E(B)4, E3S-R2E(B)4, E3S-R2E42

E3S-DS30E(B)41, E3S-R2E(B)41

E3S-DS30E42, E3S-DS30E4S(1)

Two, M4 slotted

hexagonal bolts

Emitter

Receiver

Lens (10 x 15)

Indicator

Sensitivity adjustor

13 dia.

(A) (see note)

Emitter

Receiver

Two, M4 slotted

hexagonal bolts

11 mm

dia. lens

Sensitivity adjustor (receiver only)

Mode selector (receiver only)

Cord protector

Two mounting holes

Indicator

Mounting bracket

16 dia.

Two, M4 slotted

hexagonal bolts

Emitter

Receiver

Lens (10 x 15)

Indicator

Sensitivity adjustor

13 dia.

Two, M3 holes

Two, M4 holes

25.4
