3mm (T1) Package Discrete LEDs

AMBER

Bivar reserves the right to make changes at any time in order to improve design and to supply the best product possible.

Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.

Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com

Revision A 01/10

Page 4 of 5

Bivar reserves the right to make changes at any time without notice.

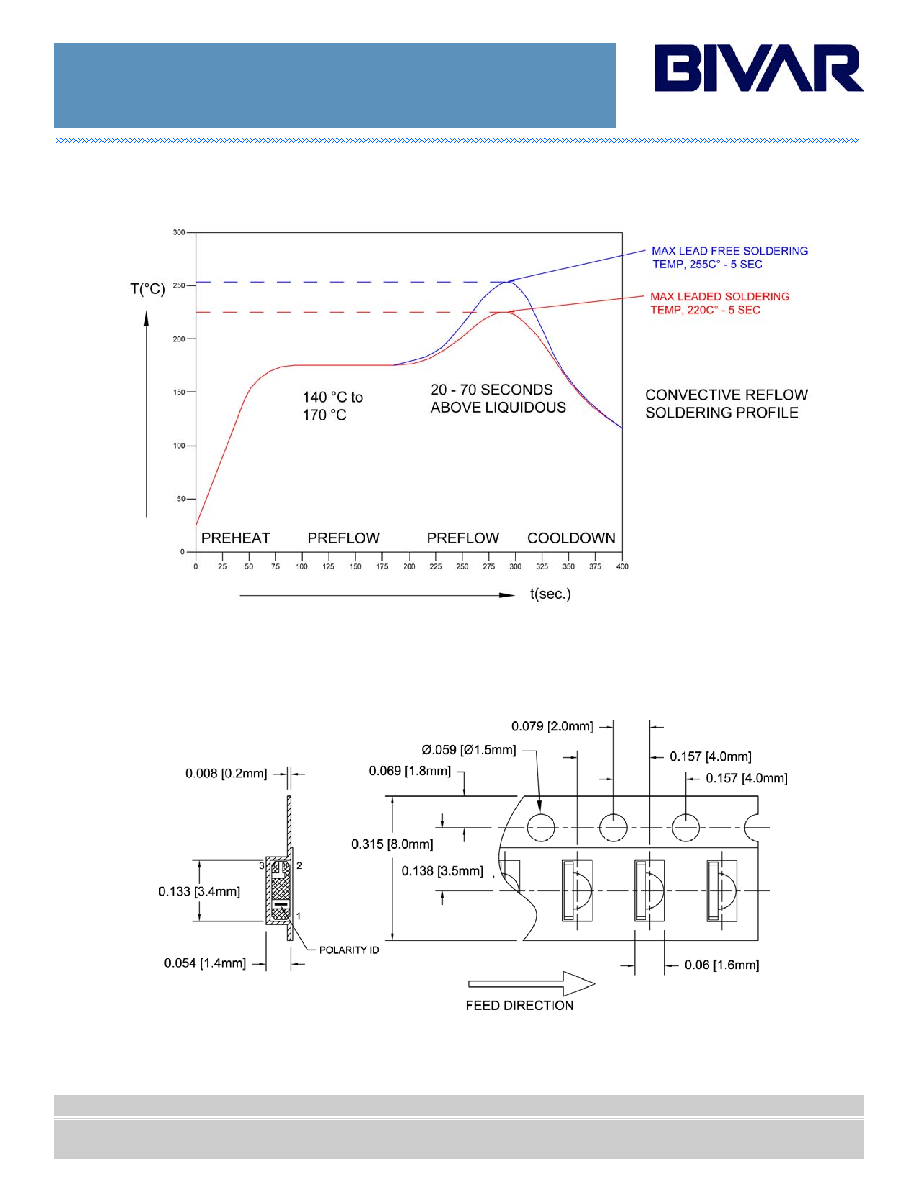

Recommended Soldering Conditions

Tape and Reel Dimensions

Outline Drawings Notes:

1. All dimensions are in inches [millimeters].

2. Standard tolerance: ±0.010" unless otherwise noted.

Note: 3000 pcs/Reel

SURFACE MOUNT LED

RED/BLUE, 1204 PACKAGE
