Features

10/27/2014

1

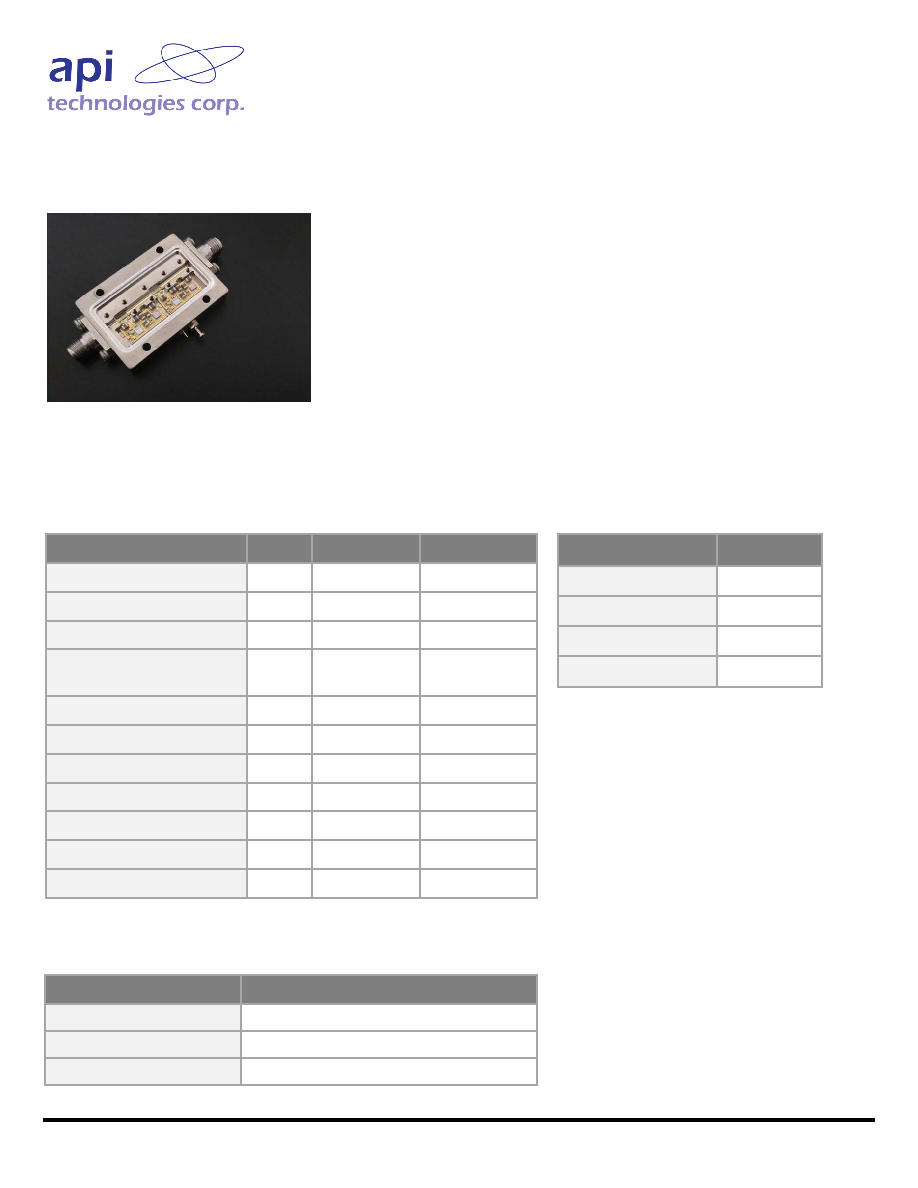

The Model BXHF1200 is standard high frequency amplifier covering 35 GHz to 45 GHz. This two stage design, utilizes a

laser sealed housing for the ultimate in environmental protection. This standard design may also be ordered in a

screened MIL-STD-883 version as a model SXHF1200. All specification ratings are based on measurements in a 50 ohm

system with a DC supply voltage tolerance of +/- 2%.

High Frequency Millimeter-wave Amplifier

Frequency Range: 35 GHz to 45 GHz

Model # BXHF1200

• Millimeter Wave Operation

• Laser Sealed Housing

• Internal Voltage Regulation

• Dual Stage Amplifier

Mechanical & Electrical

Parameter

Specification

Housing Size

1.500” L x 1.060” W x 0.300” H

Housing Drawing

HF2

RF Connectors

2.4 mm Female Replaceable Connectors

Parameter

Unit

Storage Temperature

-55°C to +85°C

Operating Temperature

-40°C to +85°C

DC Voltage @ 25°C

+18 volts

Input Drive @ 25°C (CW)

-5 dBm

Maximum (No Damage) Ratings

Technical Specifications

* Typical values are measured at 25

°C,

but not guaranteed.

Parameter

Unit

Typical

Min/Max

Frequency Range

GHz

35 - 45

35 - 45

Gain

dB

34

30 Min.

Noise Figure

dB

5.0

6.0 Max.

Output Power @ 1 dB

Compression

dBm

+17

+15 Min.

dBm

+27

---

dBm

+37

---

Reverse Isolation

dB

50

---

Input VSWR

---

1.75:1

2.0:1 Max.

Output VSWR

---

1.75:1

2.0:1 Max.

Supply Voltage

volts

+12 to +15

+12 to +15

Supply Current

mA

300

325
