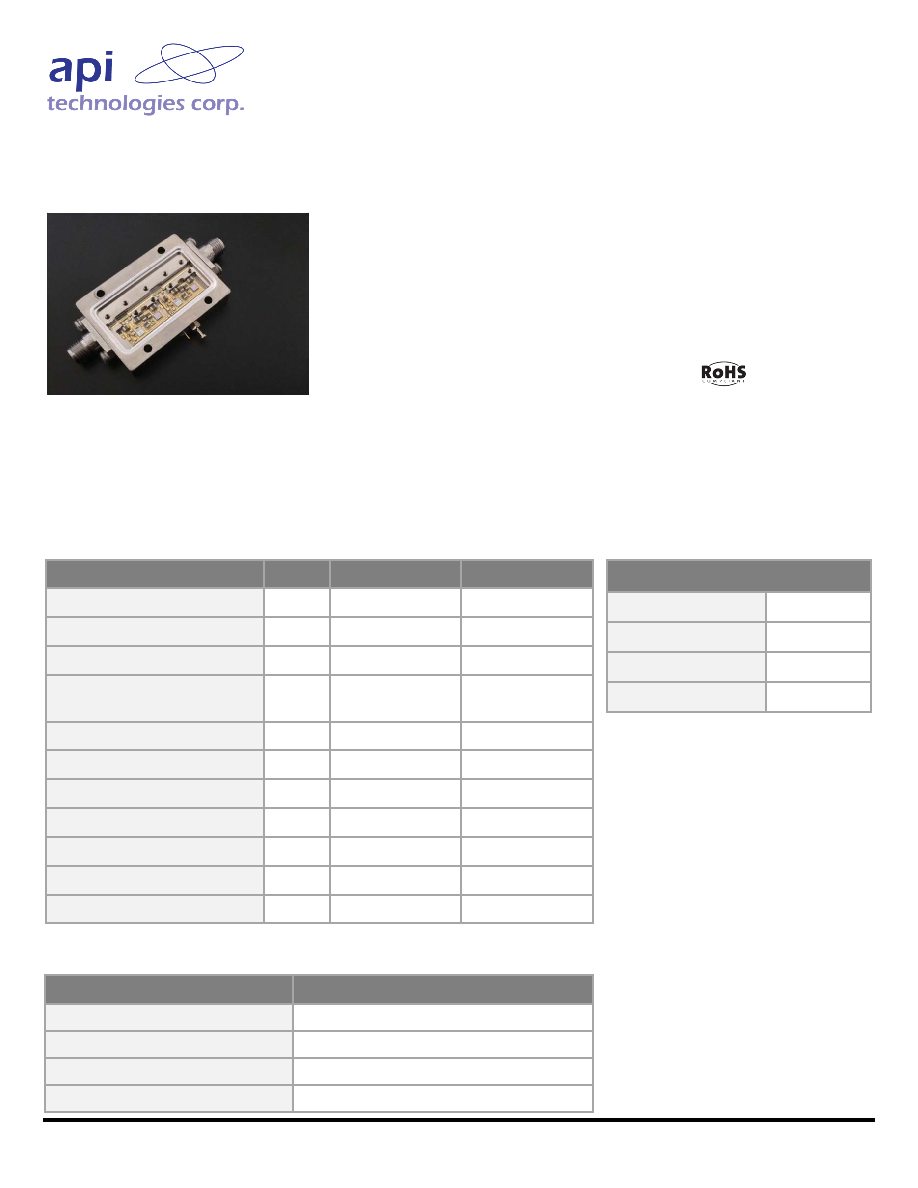

Features

10/31/2014

1

Model BXHF1202 is a high frequency amplifier covering 8-12 GHz. This design utilizes a laser sealed housing

for superior environmental protection. This standard design may also be ordered in a screened MIL-STD-883

version (Model #SXHF1202.) All specification ratings are based on measurements in a 50 Ω (ohm) system with

a DC supply voltage tolerance of +/- 2%.

High Frequency Microwave Amplifier

Model # BXHF1202

• High Frequency and Broad Bandwidth: 8-12 GHz

• High Gain: 27 dB

• Laser Welded Housing for Ultimate Environmental Protection

• Internal Voltage Regulator

• RoHS Compliant Option: Model BXHF1202LF

Mechanical & Electrical

Parameter

Specification

Specification Temperatures (Min/Max)

-40°C to +85°C

Housing Size

1.500” L x 1.060” W x 0.300” H

Housing Drawing

HF2 Package

RF Connectors

SMA Female Replaceable Connectors

Maximum (No Damage) Ratings

Storage Temperature

-55°C to +85°C

Operating Temperature

-40°C to +85°C

DC Voltage @ 25°C

+18 volts

Input Drive @ 25°C (CW)

+13 dBm

Maximum Ratings

Technical Specifications

Parameter

Unit

Typical

Min/Max

Frequency Range

GHz

8 to 12

8 to 12

Gain

dB

27

26

Noise Figure

dB

3.0

4.0

Output Power @ 1 dB

Compression

dBm

24

-

dBm

30

-

dBm

35

-

Reverse Isolation

dB

-40

-

Input VSWR

---

1.8:1

2.0:1

Output VSWR

---

1.8:1

2.0:1

Supply Voltage

volts

+12 to +15

+12 to +15

Supply Current

mA

450

500

* Typical values are measured at 25

°C,

but not guaranteed.

Frequency Range: 8-12 GHz
