4 / 6 page

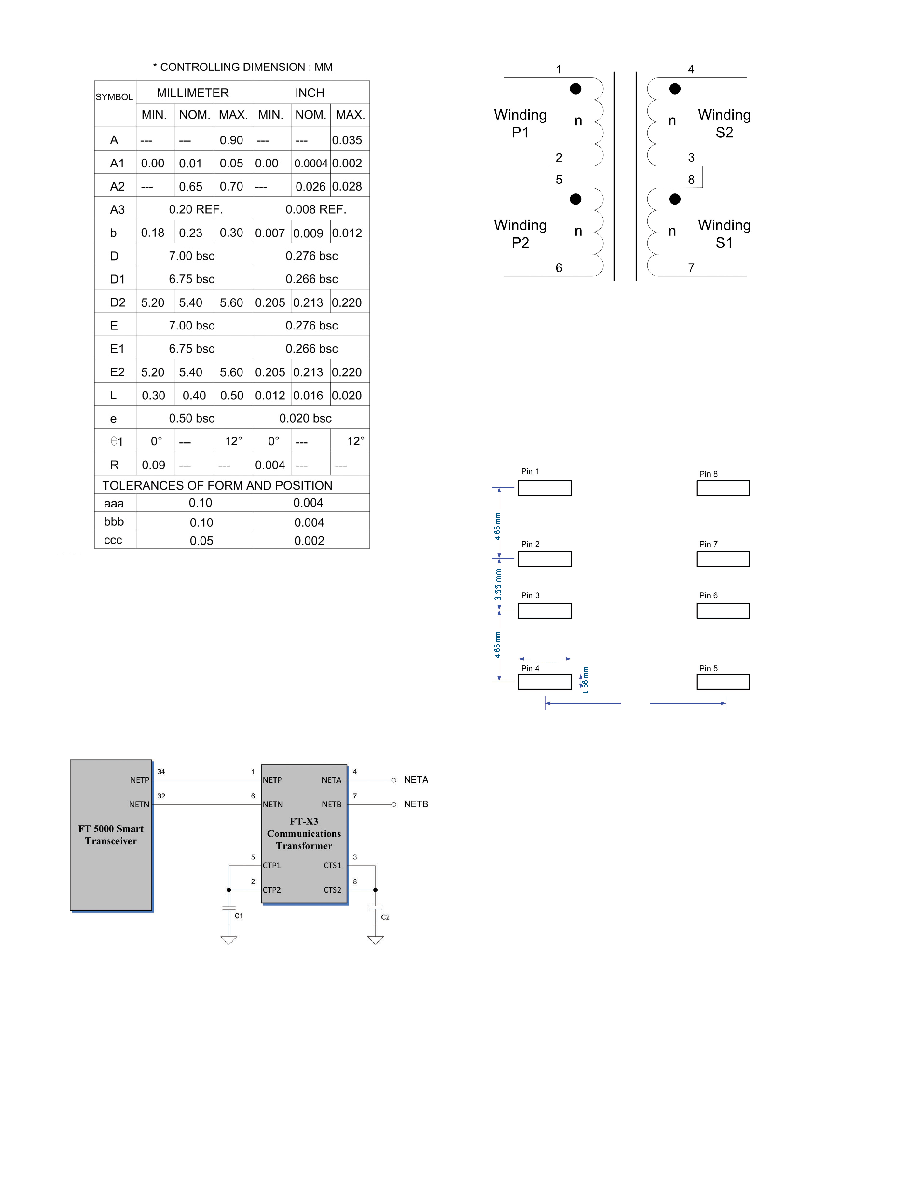

FT-X3 Communications Transformer

Pin Descriptions

Figure 4: FT-X3 Communications Transformer

Pinout Diagram

Figure 4: FT-X3 Communications Transformer Electrical

Connection Schematic (winding connections are made on

the PCB)

Recommended FT-X3 Communications Transformer

Pad Layout

The FT-X3 Communications Transformer is rotationally

symmetric. Hence, the transformer package does not

have a marking for Pin 1.

Figure 5: FT-X3 Transformer SMT Layout

Pad Pattern

Notes

1. All dimensions are in millimeters.

2. Dimensions and tolerances conform to

ASME Y14.5M.-1994.

3. Package warpage max. 0.08 mm.

4. Package corners unless otherwise specified

are R0.175±0.025 mm.

Recommendation: Add vias to the ends of each pin pad

connection (just outside of the SMT pad rectangles) to

provide additional mechanical support for the transformer.

4.27 mm

13.5 mm
