CONN005-R58 datasheet(1/1 Pages) ETC2

Numer części	CONN005-R58

Szczegółowy opis	N FEMALE BULKHEAD MOUNT CABLE END CRIMP FOR RG58 CABLE

PDF	1 Pages

Scroll/Zoom	100%

Producent	ETC2 [List of Unclassifed Manufacturers]

Strona internetowa

Logo

1 / 1 page

A

B

C

D

4

3

2

1

D

C

B

A

1

2

4

3

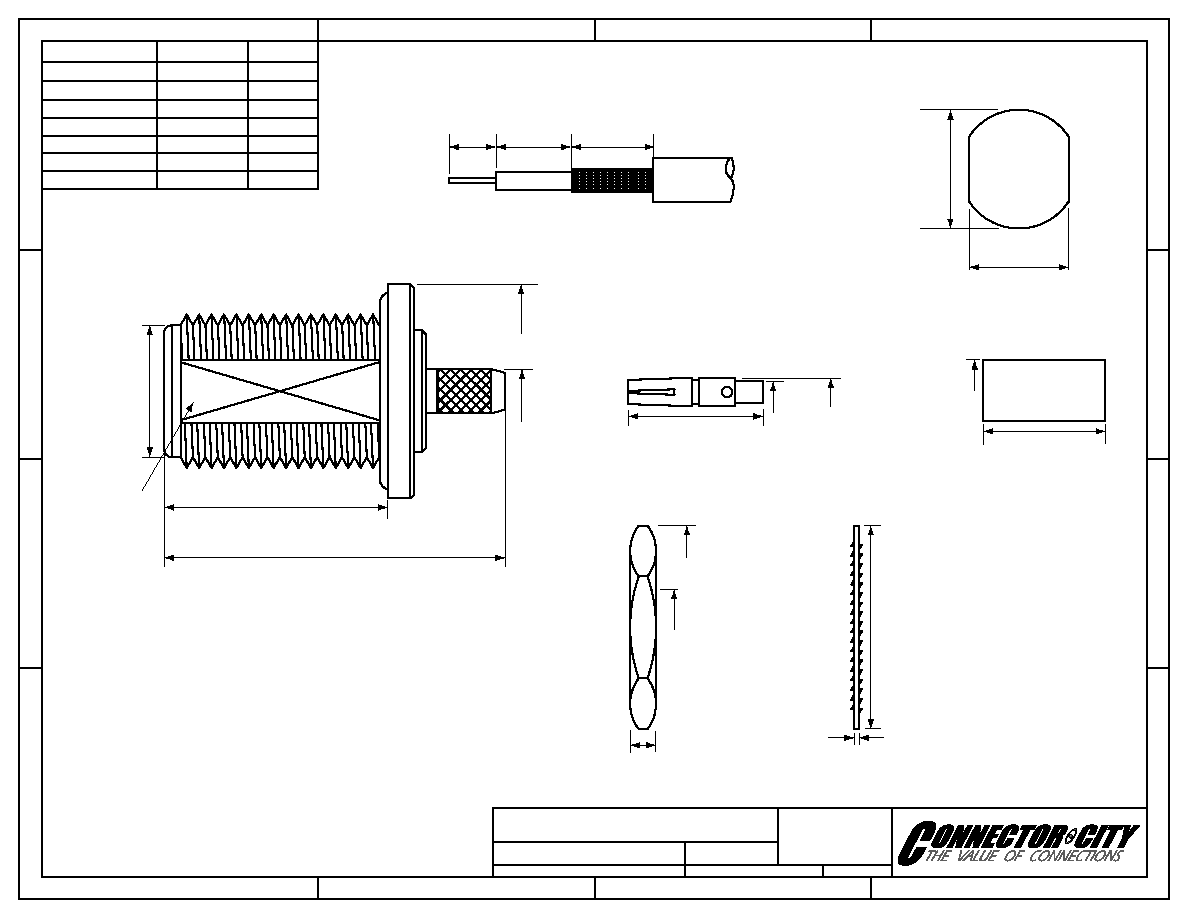

N FEMALE BULKHEAD MOUNT

CABLE END CRIMP FOR RG58 CABLE

0.276

(7.00)

0.315

(8.00)

RECOMMENDED CABLE STRIPPING DIMENSIONS

0.177

(4.50)

RG-58 Cable

Description

Material

Finish

Nut

Washer

Body

Nickel

Brass

Socket

Gold

Brass

Crimp Ring

Nickel

Brass

CONNECTOR CITY

159 ORT LANE

MERLIN, OR 97532

PH (541)-471-6256

FAX (541)-471-6251

Date:

Sheet 1 of 1

Revision:

Title

Part No.

Dimensions:

CONN005-R58

1.0

INCHES (mm)

2/11/2008

RECOMMENDED

MOUNTING HOLE

Ø0.634

(16.10)

0.571

(14.50)

1.

Solder the socket to the center conductor.

2.

Insert the socket, center conductor, and insulator into the body.

3.

Wrap the braid around the tail of the body and crimp the ring with a

hex crimp tool labeled for use with RG-58 cable.

CONN005-R58 ASSEMBLY INSTRUCTIONS

Insulation

N/A

Teflon

O Ring

N/A

SI Rubber

0.110

(2.80)

5/8-24UNEF-2B

THREADS

H19

NUT

Ø0.866

(22.00)

0.020

(0.50)

WASHER

0.500

(12.70)

Ø0.252

(6.40)

CRIMP RING

0.673

(17.10)

∅0.083

(2.10)

∅0.119

(3.02)

5/8-24UNEF-2A THREADS

SIDE VIEW

∅0.531

(13.50)

∅0.177

(4.50)

FLAT 0.528 x2

(13.40)

0.929

(23.60)

1.410

(35.70)

∅0.862

(21.90)
