LP38853

SNVS335D – DECEMBER 2006 – REVISED APRIL 2013

www.ti.com

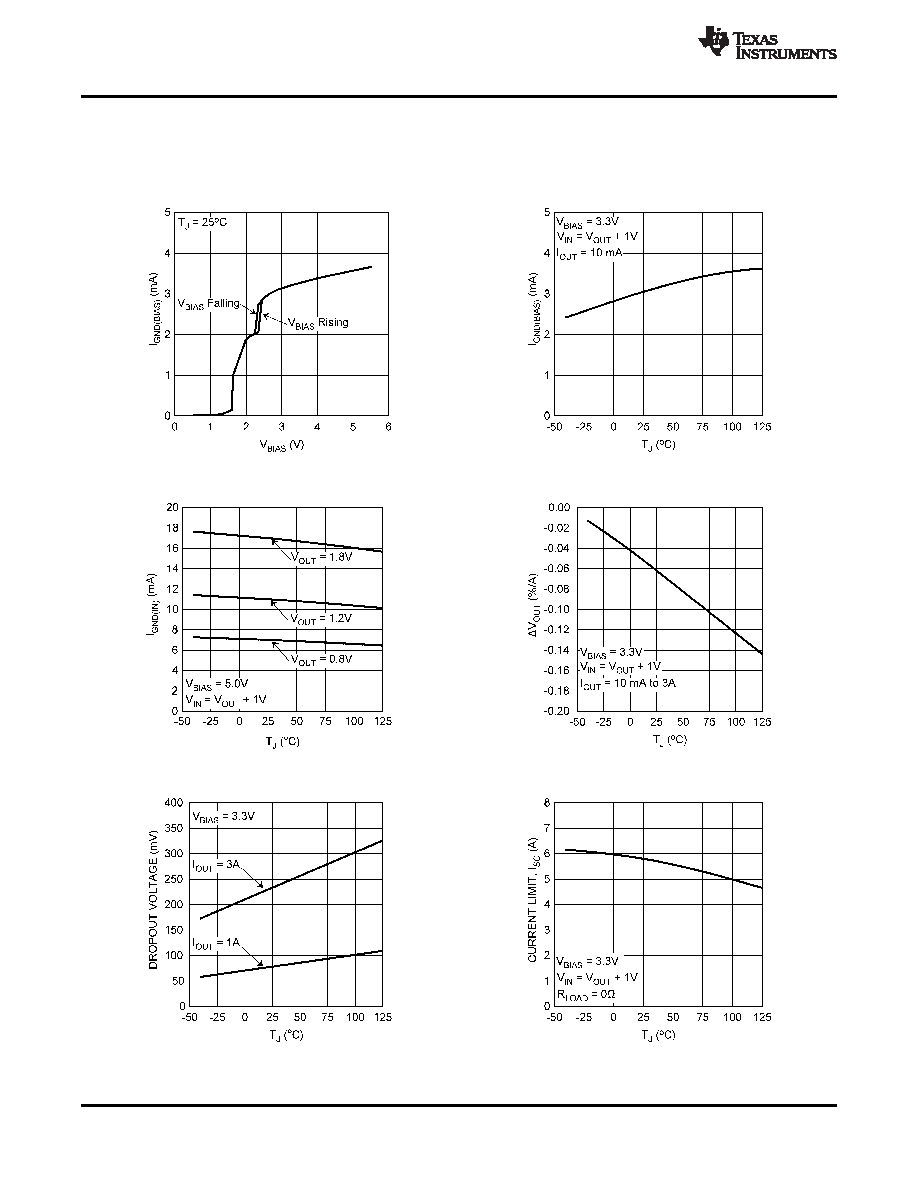

Typical Performance Characteristics

Refer to the Typical Application Circuit. Unless otherwise specified: TJ = 25°C, R1 = 1.40 kΩ, R2 = 1.00 kΩ, CFF= 0.01 µF, VIN

= VOUT(NOM) + 1V, VBIAS = 3.0V, IOUT = 10 mA, CIN = 10 µF Ceramic, COUT = 10 µF Ceramic, CBIAS = 1 µF Ceramic, , CSS =

Open.

VBIAS Ground Pin Current (IGND(BIAS)) vs VBIAS

VBIAS Ground Pin Current (IGND(BIAS)) vs Temperature

Figure 4.

Figure 5.

VIN Ground Pin Current vs Temperature

Load Regulation vs Temperature

Figure 6.

Figure 7.

Dropout Voltage (VDO) vs Temperature

Output Current Limit (ISC) vs Temperature

Figure 8.

Figure 9.

Submit Documentation Feedback

Product Folder Links: LP38853
