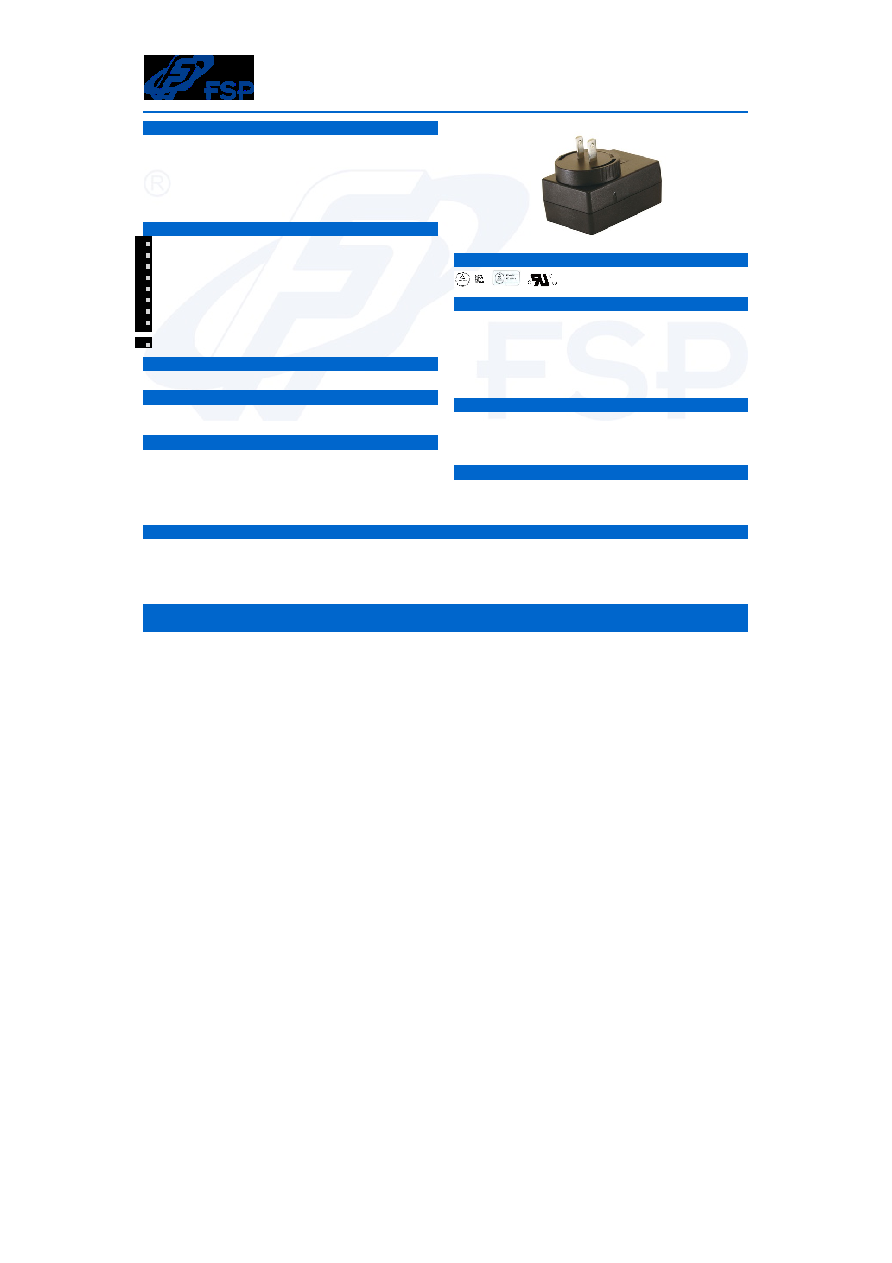

DESCRIPTION

This series of AC /DC wall mount switching power supplies

are for 15 watts of continuous output power. They are

enclosed in a 94V-1 rated polyphenylene-oxide case with

four types of interchangeable AC plugs: European plug, UK

plug and North American plugs. All models meet EN55011

and FC C class B emission limits, and are designed for

medical application, not for life-supporting equipment.

FEATURES

Interchangeable AC plugs

High efficiency

Low ripple & noise

Over voltage protection

Short-circuit protection

100% burn-in at full rated load

Standby consumption less than 0.3 W

C ompliant with C EC and ENERGY STAR efficiency level V

requirements

C ompliant with RoHS requirements

W ATTAGE

Wattage:

15W

DIMENSION

Dimension:

78.3mm(L) x 51.8mm(W) x

34.5mm(H)

INPUT SPECIFICATION

Input Range:

90-264 Vdc

Input F requency :

47-63 Hz

Input Current:

0.5A(rms) for115VAC ,

0.3A(rms) for230VAC

Leakage Current:

100 µA max. @ 264 VAC ,63

Hz

SAFETY STANDARD APPAOVAL

OUTPUT SPECIFICATION

Ripple & Noise:

Maximum excursion of 4% or

better on all models,

recovering to 1% of final

value within 500 us after a

25% step load change

Ov er Current

Protection:

Protected to short circuit

conditions

ENVIRONMENTAL SPECIFICATION

TEMP.Range:

Operating Temperature:0°C to

+40°C

Storage Temperature: -20°C to +

OUTPUT ELECTRICAL

Single Output:

5 V/ 3 A

NOTES

1. FSP015-RxMM series are interchangeable AC plugs which are to be ordered separately. FSP015-RxDM-NP models are

with fixed North American AC plug, and FSP015-RxEM models with fixed European AC plug.

2. Ripple and noise is maximum peak to peak voltage value measured at output within 20 MHz bandwidth, at rated line

voltage and output load ranges, and with a 10 μF tantalum capacitor in parallel with a 0.1 μF ceramic capacitor across the

output.

T his co nte nt is subje ct to cha nge , ple a se re fe r to spe cifica tio n fo r m o re de ta il.

FSP re se rve the right to cha nge the co nte nt witho ut prio r no tice

Medical PSU

FSP015-RADM-NP
