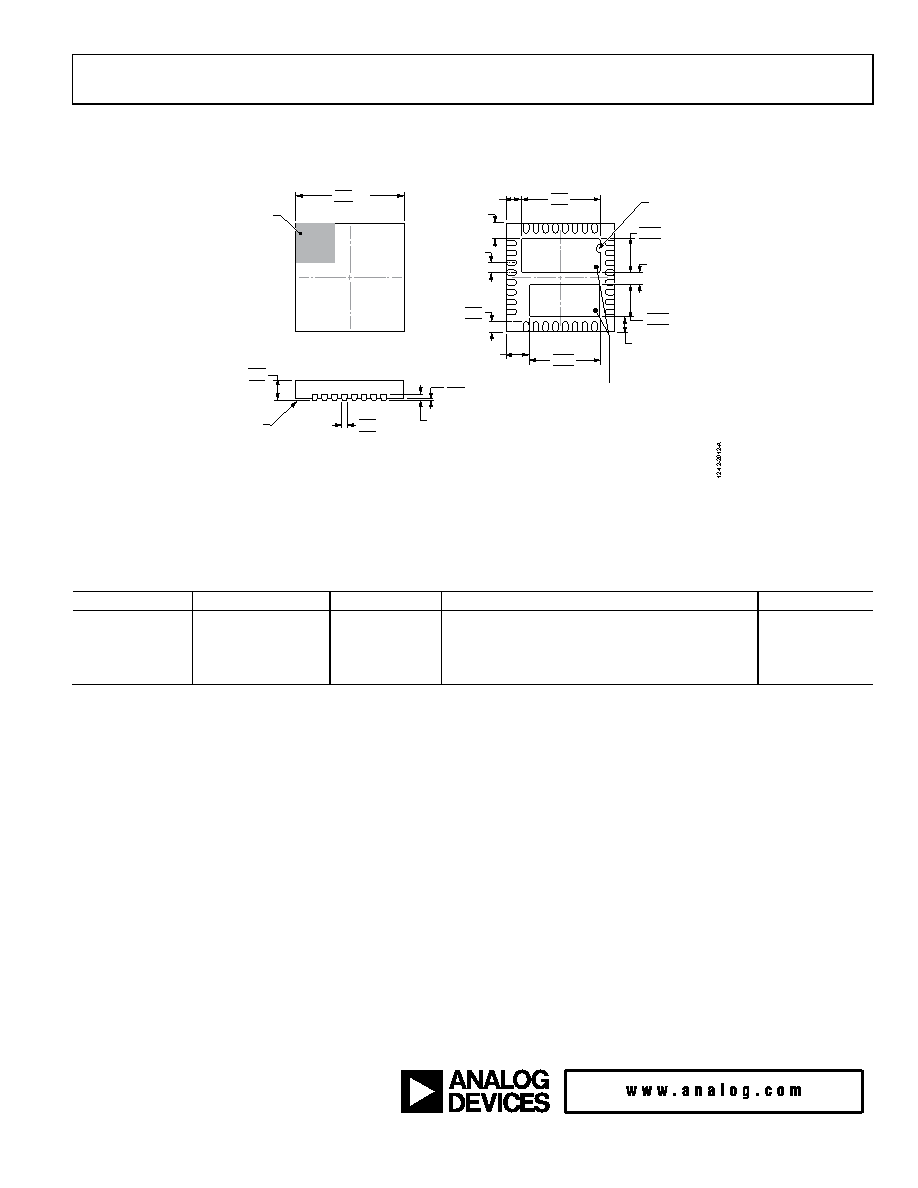

background image
Data Sheet
ADP2389/ADP2390
Rev. 0 | Page 23 of 23
OUTLINE DIMENSIONS
Figure 38. 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]
5 mm × 5 mm Body, Very Thin Quad
(CP-32-19)
Dimensions shown in millimeters
ORDERING GUIDE
Model1
Temperature Range
Output Voltage
Package Description
Package Option
ADP2389ACPZ-R7
−40°C to +125°C
Adjustable
32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]
CP-32-19
ADP2390ACPZ-R7
−40°C to +125°C
Adjustable
32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]
CP-32-19
ADP2389-EVALZ
Evaluation Board
ADP2390-EVALZ
Evaluation Board
1 Z = RoHS Compliant Part.
1.777
1.677
1.527
1
0.50
BSC
BOTTOM VIEW
TOP VIEW
PIN 1
INDICATOR
32
9
16
17
24
25
8
PIN 1
INDICATOR
SEATING
PLANE
0.05 MAX
0.02 NOM
0.152 REF
0.425
0.625
0.984
COPLANARITY
0.08
0.30
0.25
0.20
5.10
5.00 SQ
4.90
1.00
0.90
0.80
FOR PROPER CONNECTION OF
THE EXPOSED PAD, REFER TO
THE PIN CONFIGURATION AND
FUNCTION DESCRIPTIONS
SECTION OF THIS DATA SHEET.
0.45
0.35
0.25
COMPLIANT
TO JEDEC STANDARDS MO-220-VHHD
3.80
3.70
3.55
3.441
3.341
3.191
1.725
1.625
1.475
EXPOSED
PAD
EXPOSED
PAD
0.65
0.65
©2015 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D12192-0-8/15(0)
