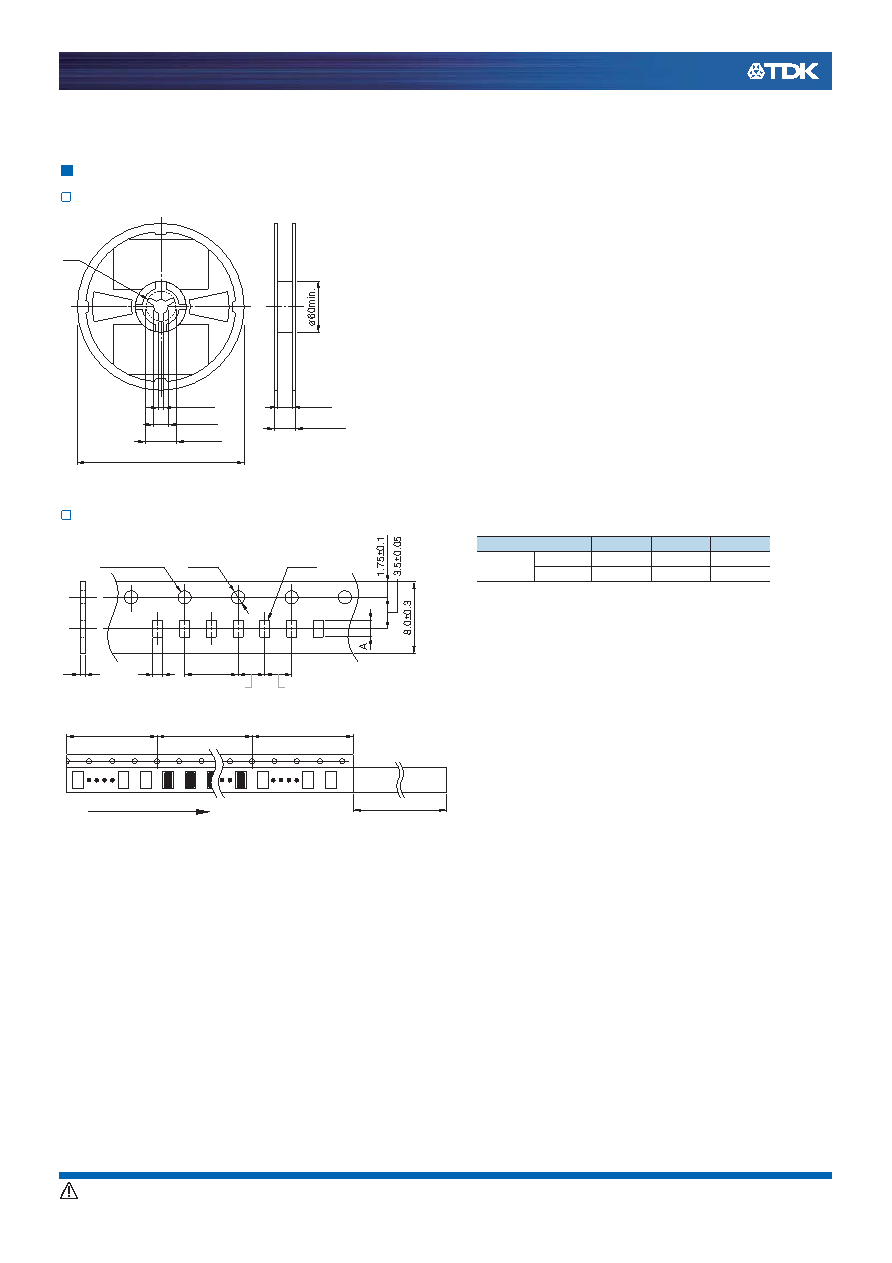

MLF2012 Type

PACKAGING STYLE

REEL DIMENSIONS

TAPE DIMENSIONS

1.0

ø180

±2.0

2.0

±0.5

ø13

±0.2

ø21

±0.8

14.4max.

Dimensions in mm

8.4

+2.0

–0.0

4.0

±0.1

1.5

+0.1

–0.0

Sprocket hole

Cavity

KB

2.0

±0.05

2.0

±0.05

160min.

Taping

200min.

300min.

Drawing direction

Dimensions in mm

Type

A

B

K

MLF2012

t=0.85

2.3±0.2

1.5±0.2

1.1 max.

t=1.25

2.3±0.2

1.5±0.2

1.5 max.
