CPC1967

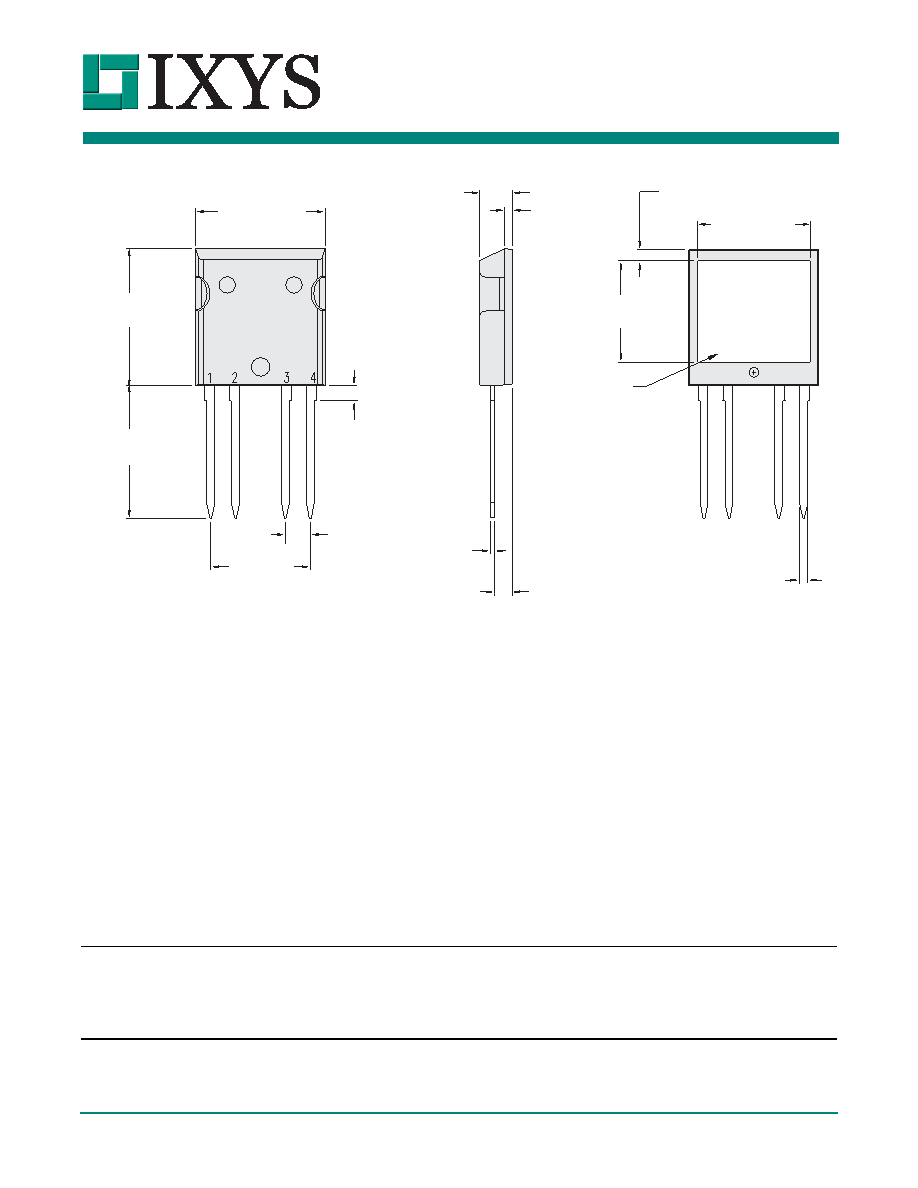

4.5 Mechanical Dimensions

DCB Substrate

1.270 TYP

(0.050 TYP)

NOTE: Metallized external surface of DCB substrate maintains 2500V

rms

isolation to device internal structure and all external pins.

20.879 ± 0.254

(0.822 ± 0.010)

20.396 ± 0.508

(0.803 ± 0.020)

15.240 ± 0.508

(0.600 ± 0.020)

3.810 ± 0.254

(0.150 ± 0.010)

2.362 ± 0.381

(0.093 ± 0.015)

19.914 ± 0.254

(0.784 ± 0.010)

5.029 ± 0.127

(0.198 ± 0.005)

1.181 ± 0.076

(0.047 ± 0.003)

15.317 ± 0.254

(0.603 ± 0.010)

1.930 ± 0.381

(0.076 ± 0.015)

17.221 ± 0.254

(0.678 ± 0.010)

DIMENSIONS

mm

(inches)

0.635 ± 0.076

(0.025 ± 0.003)

2.794 ± 0.127

(0.110 ± 0.005)

NOTE: Not to be soldered
