PRESSURE SWITCH
Hysteresis setting
VR
Indicator LED
Pressure setting VR
DIFF.
ON
4-core cable
AWG26 ULNo.2851 L = 2000 20
(
5.0)
φ

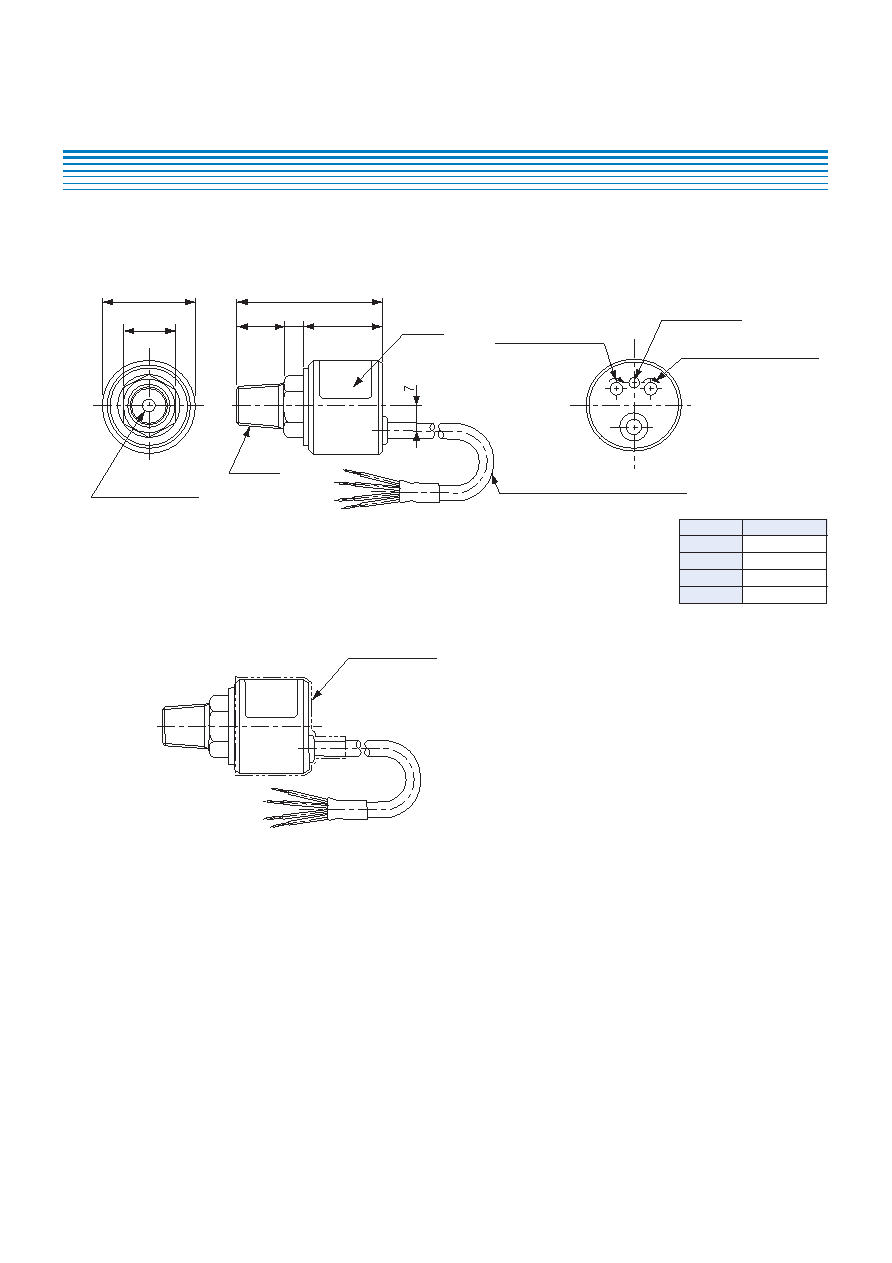

■ OUTLINE DIMENSIONS
Unless otherwise specified, tolerance :
± 0.5 (Unit: mm)
Drip-proof cover
Please make sure that the drip-proof cover is properly
placed over the main body and the cable.
OPS87
ODrip-proof cover type
PS86/PS87
PRESSURE SWITCHES
Wire color
Red
Black
White
Green
Connection
Power
B
Power
C
Output
B
Output
C
