PS86-503P-H-R2 Arkusz danych(PDF) 5 Page - Copal Electronics

Numer części PS86-503P-H-R2
Szczegółowy opis  PRESSURE SWITCHES
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  COPAL [Copal Electronics]
Strona internetowa  http://www.nidec-copal-electronics.com/e
Logo COPAL - Copal Electronics

PS86-503P-H-R2 Arkusz danych(HTML) 5 Page - Copal Electronics

  PS86-503P-H-R2 Datasheet HTML 1Page - Copal Electronics PS86-503P-H-R2 Datasheet HTML 2Page - Copal Electronics PS86-503P-H-R2 Datasheet HTML 3Page - Copal Electronics PS86-503P-H-R2 Datasheet HTML 4Page - Copal Electronics PS86-503P-H-R2 Datasheet HTML 5Page - Copal Electronics
Zoom Inzoom in Zoom Outzoom out
 5 / 5 page
background image
30
17
15
6.5
26
Label
(47.5)
R 1/4
(PT 1/4)
Pressure port
4
φ
PRESSURE SWITCH
Hysteresis setting
VR
Indicator LED
Pressure setting VR
DIFF.
ON
4-core cable
AWG26 ULNo.2851 L = 2000 20
(
5.0)
φ

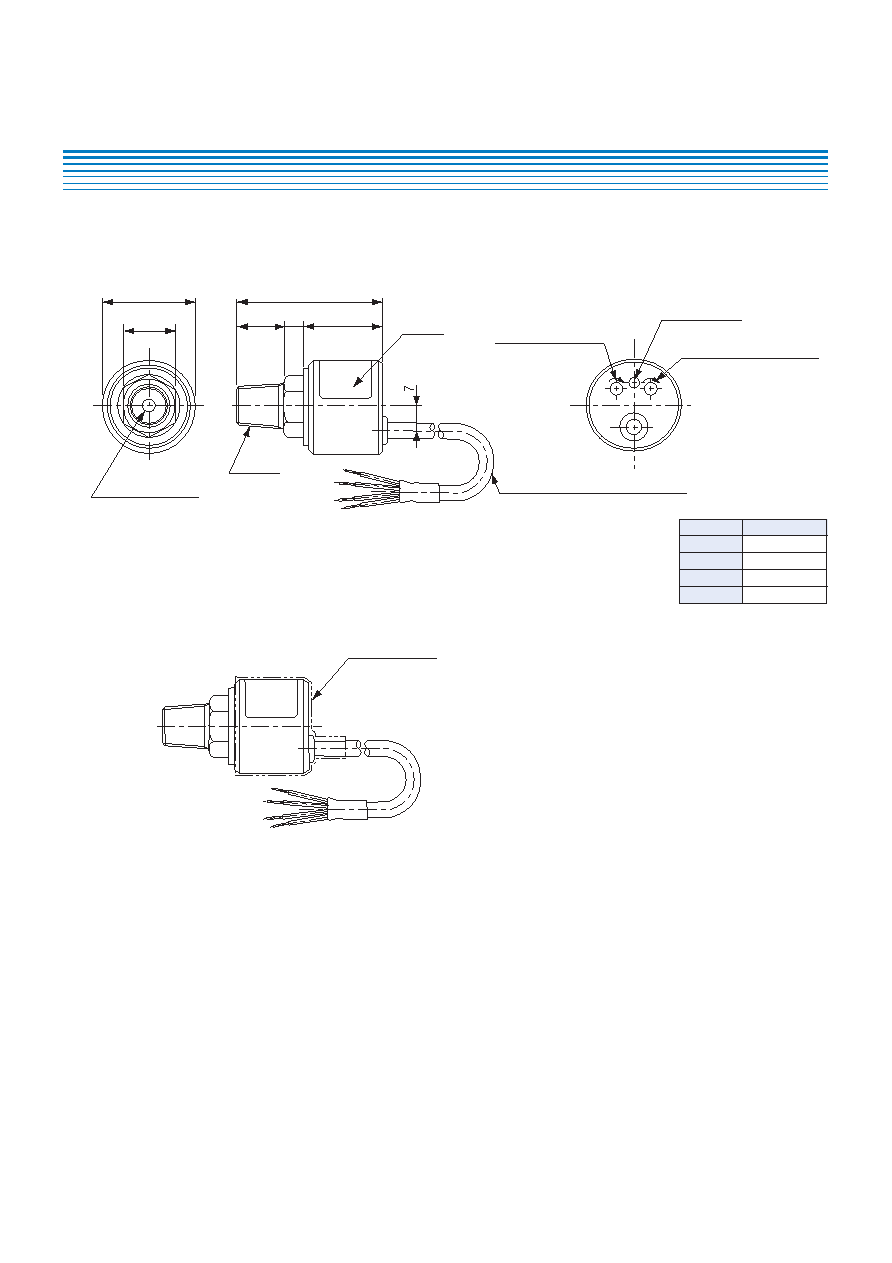

■ OUTLINE DIMENSIONS
Unless otherwise specified, tolerance :
± 0.5 (Unit: mm)
Drip-proof cover
Please make sure that the drip-proof cover is properly
placed over the main body and the cable.
OPS87
ODrip-proof cover type
PS86/PS87
PRESSURE SWITCHES
Wire color
Red
Black
White
Green
Connection
Power
B
Power
C
Output
B
Output
C
