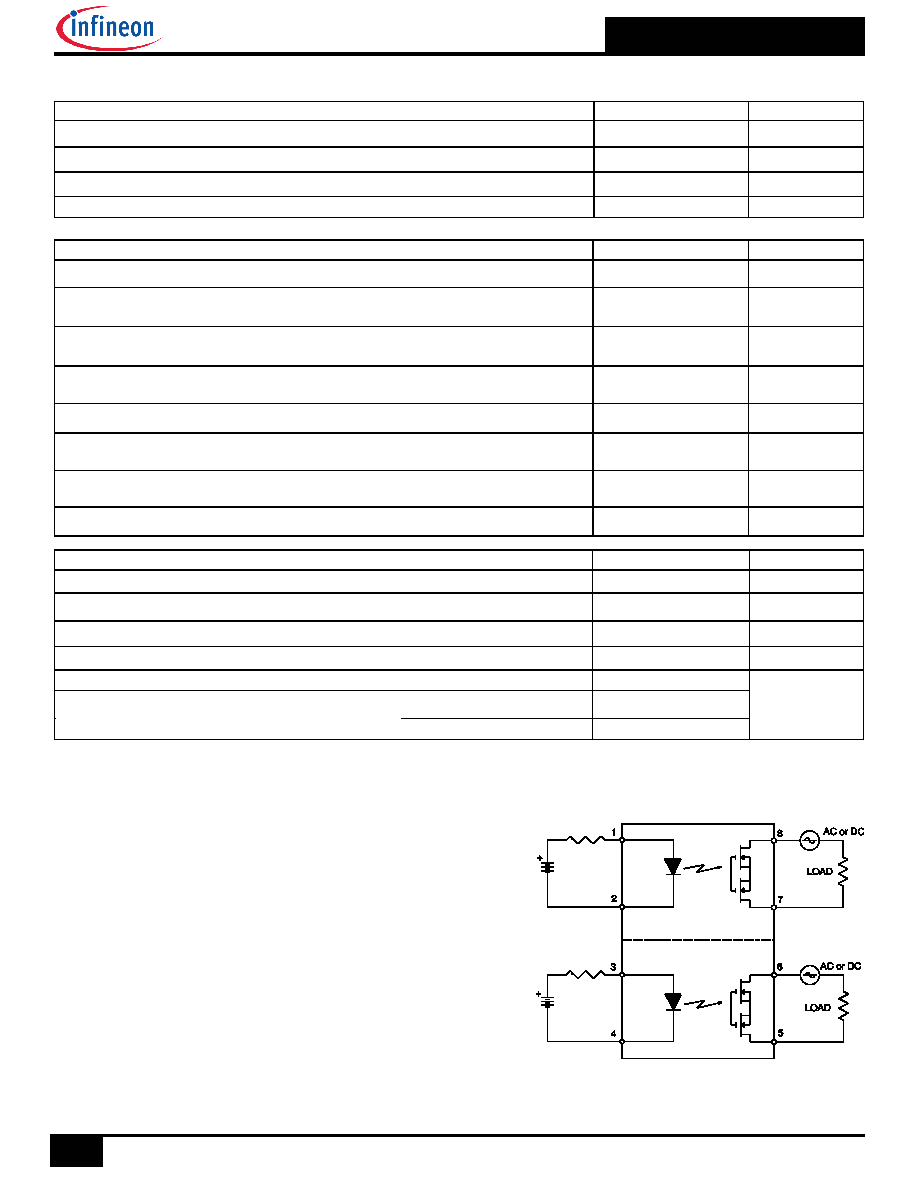

PVT322SPBF datasheet(2/7 Pages) INFINEON

2 / 7 page

Series PVT322PbF

2016-08-29

Electrical Specifications (-40°C

TA  +85°C unless otherwise specified)

INPUT CHARACTERISTICS

Limits

Units

Minimum Control Current (See figure1)

2.0

Maximum Control Current for Off-State Resistance @ TA=+25°C

0.4

Control Current Range (Caution: current limit input LED, see figure 5)

2.0 to 25

Maximum Reverse Voltage

6.0

OUTPUT CHARACTERISTICS

Limits

Units

Operating Voltage Range

0 to ±250

V(DC or AC peak)

Maximum Load Current @ TA=+40°C

5mA Control (See figure 1) (single and dual channel operation)

170

Maximum Peak Load Current (10ms maximum duration)

(single and dual channel operation)

500

Maximum On-State Resistance @TA=+25°C

For 50mA Pulsed load, 5mA Control (see figure 3)



Maximum Off-State Leakage @TA=+25°C, ±250V (see figure 4)

1.0

µA

Maximum Turn-On Time @TA=+25°C (see figure 6)

For 50mA, 100 VDC load, 5mA Control

3.0

Maximum Turn-Off Time @TA=+25°C (see figure 6)

For 50mA, 100 VDC load, 5mA Control

0.5

Maximum Output Capacitance @ 50VDC

GENERAL CHARACTERISTICS

Limits

Units

Minimum Dielectric Strength, Input-Output

4000

VRMS

Minimum Dielectric Strength, Pole-to-Pole

1000

VDC

Minimum Insulation Resistance, Input-Output, @TA=+25°C, 50%RH, 100VDC

1012



Maximum Capacitance, Input-Output

1.0

Maximum Pin Soldering Temperature (10 seconds maximum)

+260

Ambient Temperature Range:

Operating

-40 to 85

Storage

-40 to 100

°C

International Rectifier does not recommend the use of

this product in aerospace, avionics, military or life support

applications. Users of this International Rectifier product

in such applications assume all risks of such use and

indemnify International Rectifier against all damages

resulting from such use.

Connection Diagram
